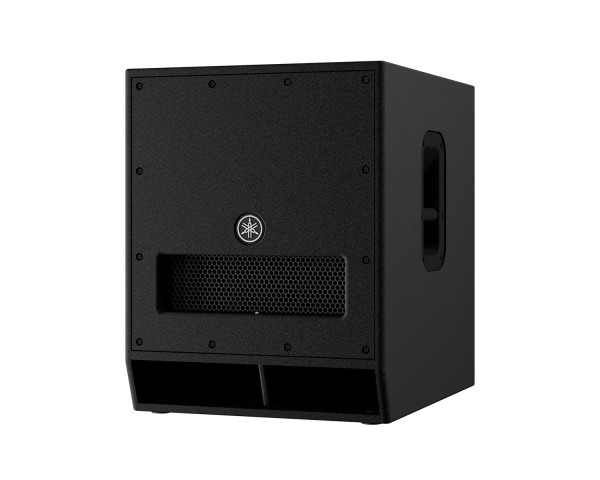

DXS15 MKII Powered 15" Subwoofer Class-D with 2.5" Voice Coil

« return to previous page
Yamaha DXS15 MKII Powered 15 Subwoofer Class-D with 2.5 Voice Coil - Main Image
Yamaha DXS15 MKII Powered 15 Subwoofer Class-D with 2.5 Voice Coil - Image 1
Yamaha DXS15 MKII Powered 15 Subwoofer Class-D with 2.5 Voice Coil - Image 2
Yamaha DXS15 MKII Powered 15 Subwoofer Class-D with 2.5 Voice Coil - Image 3
Price:
RRP: £1,309.20 inc VAT
Code:
YAMDXS15MKII
Manufacturer Code:
ZU33600
Brand:
Yamaha

Quantity required:

Main Features

  • 15" powered subwoofer with 1020W class-D power amplifier
  • High-output 15" woofer with a band-pass design cabinet for superior bass response and a maximum 135dB SPL
  • 40Hz-150Hz frequency range is ideal for small- to medium-sized rooms
  • Built-in D-XSUB processing allows you to extend the frequency response even lower
  • Plywood cabinet is durable and acoustically optimized for maximum sound quality
  • Cardioid mode for bass management onstage
Share:

DXS15 MKII Powered 15" Subwoofer Class-D with 2.5" Voice Coil

The DXS15mkII is capable of producing tight, thunderous low frequencies as low as 40Hz and a maximum SPL of 135dB, this updated model's optimized band-pass design and state-of-the-art DSP ensure the extremely high power output is focused, powerful, and distortion-free.

Product Features

  • 15" powered subwoofer with 1020W class-D power amplifier
  • High-output 15" woofer with a band-pass design cabinet for superior bass response and a maximum 135dB SPL
  • 40Hz-150Hz frequency range is ideal for small- to medium-sized rooms
  • Built-in D-XSUB processing allows you to extend the frequency response even lower
  • Plywood cabinet is durable and acoustically optimized for maximum sound quality
  • Cardioid mode for bass management onstage
  • Selectable X-OVER (80/100/120 Hz)
  • M20 and Ø35 mm dual pole sockets
  • Optional Speaker Wheels (SPW-1) and Speaker Cover(SPCVR-DXS152)

Product Specifications

General

  • Speaker type: 15" powered subwoofer, Band-pass type
  • Frequency range (-10dB): 40 Hz - 150 Hz
  • Components LF: 15" cone, 2.5" voice coil
  • Output power: Dynamic:1020W / Continuous: 800W
  • Maximum output level (1m; on axis): 135 dB SPL
  • I/O connectors: INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST)
  • Processors: D-XSUB: BOOST, XTD LF, NORMAL
  • Cooling: Natural convection
  • Power requirements: 100V – 240V, 50Hz/60Hz
  • Power consumption: 100W
  • Pole socket: 35 mm (depth 80 mm) & M20 (threaded depth 25 mm)

Physical & Dimensions

  • Height: 611 mm (24.06”)
  • Width: 480 mm (18.90”)
  • Depth: 614 mm (24.17”)
  • Weight: 36.0 kg (79.4lbs)
