EC-V Ethernet Controller with Volume Control Black

« return to previous page
Clearance

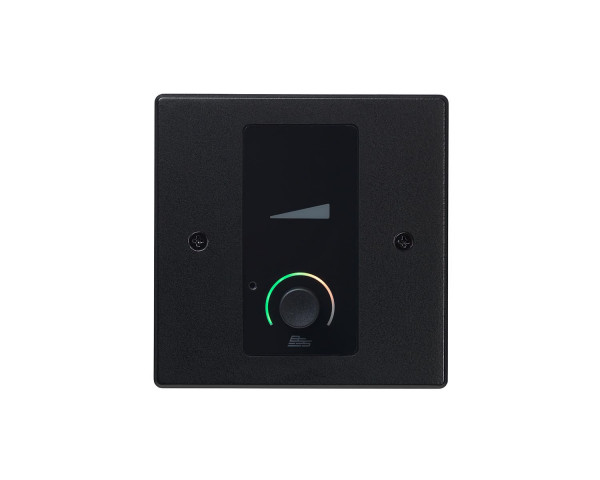

BSS EC-V Ethernet Controller with Volume Control Black - Main Image
Price:
RRP: £300.00 inc VAT
Code:
BSSECV
Manufacturer Code:
BSS0138
Brand:
BSS

Quantity required:

Main Features

  • The EC-V Ethernet Wall Controller
  • Compatible with BSS Audio Soundweb London, Crown DCi, and other HiQnet devices
  • Single-Gang Size
  • Sleep Function - LED's turn off after a specified amount of time with no user input
  • Security: Remote Lock/Unlock
  • Available in Black or White
Share:

EC-V Ethernet Controller with Volume Control

The Soundweb Contrio EC-V is an Ethernet wall controller for use in Harman HiQnet systems. The EC-V can control and monitor parameters within BSS Audio Soundweb London and other HiQnet devices, including Crown DCi series amplifiers. The EC-V is available in black or white, and in single-gang US Decora or single-gang EU form factor. The EC-V contains a single Ethernet port for configuration, control, monitoring, and power via PoE. The EC-V is configured via simple drag-and-drop operations within the software application HiQnet Audio Architect.

The EC-V contains one push/rotary encoder and one encoder ring. The encoder ring is multi-color backlit, capable of eight different colors with adjustable intensity.

The push/rotary encoder can be rotated for continuous parameter control (e.g. volume). The push/rotary encoder can also be pressed for binary parameter control (e.g. mute) or preset recall.

The encoder ring can display a bouncing audio meter. When the push/rotary encoder is rotated, the encoder ring can temporarily display a volume setting. When the push/rotary encoder is pressed, the encoder ring can temporarily display a binary parameter setting (e.g. red/green for muted/unmuted status).

The EC-V supports ‘sleep’ functionality. After a specified amount of time with no user input, the EC-V can turn off all LEDs. This is useful to avoid distraction in a dimly lit environment. Any user interaction will ‘wake up’ the controller.

The EC-V can be remotely locked and unlocked via other control systems.

Product Features

  • Ethernet Wall Controller
  • Compatible with BSS Audio Soundweb London, Crown DCi, and other HiQnet devices
  • Available in Black or White
  • Available in US Decora or EU Version
  • Single-Gang Size
  • PoE (Power Over Ethernet)
  • Configured within Audio Architect via Drag-and-Drop
  • 1 Programmable Push/Rotary Encoder
  • 1 Programmable Encoder Ring (Multicolor)
  • Sleep Function
  • Security: Remote Lock/Unlock

Product Downloads
