E-MAX 3112 MKII 12" 2-Way High-Powered Loudspeaker 350W Black

« return to previous page
RCF E-MAX 3112 MKII 12 2-Way High-Powered Loudspeaker 350W Black - Main Image
RCF E-MAX 3112 MKII 12 2-Way High-Powered Loudspeaker 350W Black - Image 1
RCF E-MAX 3112 MKII 12 2-Way High-Powered Loudspeaker 350W Black - Image 2
RCF E-MAX 3112 MKII 12 2-Way High-Powered Loudspeaker 350W Black - Image 3
RCF E-MAX 3112 MKII 12 2-Way High-Powered Loudspeaker 350W Black - Image 4
RCF E-MAX 3112 MKII 12 2-Way High-Powered Loudspeaker 350W Black - Image 5
RCF E-MAX 3112 MKII 12 2-Way High-Powered Loudspeaker 350W Black - Image 6
RCF E-MAX 3112 MKII 12 2-Way High-Powered Loudspeaker 350W Black - Image 7
RCF E-MAX 3112 MKII 12 2-Way High-Powered Loudspeaker 350W Black - Image 8
Price:
RRP: £702.00 inc VAT
Code:
RCFEMAX31122
Manufacturer Code:
13000763
Brand:
RCF

Quantity required:

Main Features

  • 129 dB SPL Max
  • 700 W program power handling
  • 55 – 20000 Hz Frequency Range
  • Plywood coated with black polyurea paint
  • 1” Compression Driver, 12” Woofer Hi Resolution Transducers
  • Perfectly Tuned Crossover
Share:

E-MAX 3112 MKII 12" 2-Way High-Powered Loudspeaker 350W Black

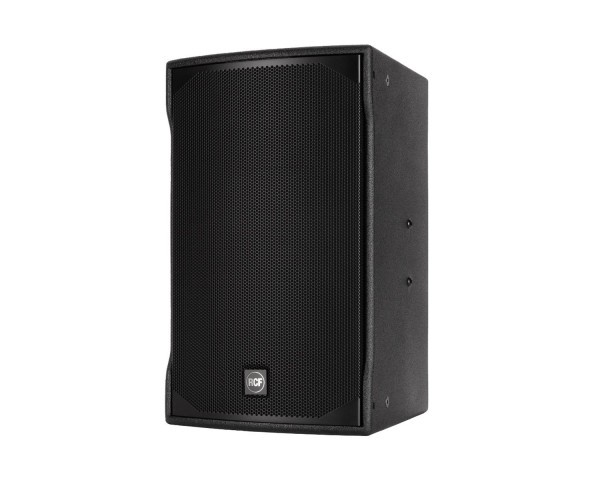

The full-range passive two-way RCF E-MAX series has been specifically designed as club systems for entertainment, to achieve the best nearfield quality, vocal coherence and a stable tonal balance even at high volume. The heavy-duty speaker cabinet is made of plywood coated with black polyurea paint. Featuring a 12” woofer with a 2.5” voice and a 1.0” compression driver with 1.4” voice coil. The LICC crossover design includes an electronic protection on high-frequency device. The rotatable 90°x70° horn allows installation of the loudspeaker either vertically or horizontally in any environment and architectural constraint.

Product Features

  • 129 dB SPL Max
  • 700 W program power handling
  • 55 – 20000 Hz Frequency Range
  • Plywood coated with black polyurea paint
  • 1” Compression Driver, 12” Woofer Hi Resolution Transducers
  • Perfectly Tuned Crossover

Product Specifications

 Acoustical specifications

  • Frequency Response (-10dB):  55 Hz ÷ 20000 Hz
  • Max SPL @ 1m:  129 dB
  • Horizontal coverage angle:  90°
  • Vertical coverage angle:  70°
  • Directivity index Q:  11
  • System Sensitivity:  98 dB

Power section

  • Amplification:  Full Range
  • Nominal Impedance:  8 ohm
  • Power Handling:  350 W
  • Peak Power Handling:  1400 W PEAK
  • Recommended Amplifier:  700 W
  • Protections:  Active mosfet
  • Crossover Frequencies:  1800 Hz

Transducers

  • Compression Driver:  1 x 1.0'' neo, 1.5'' v.c
  • Woofer:  12'', 2.5'' v.c

Input/Output section

  • Input connectors:  Speakon® NL4
  • Output connectors:  Speakon® NL4

Standard compliance

  • CE compliance:  Yes

Physical specifications

  • Cabinet/Case Material:  Plywood
  • Hardware:  17 x M10
  • 2 x M8
  • Handles:  1 Top
  • Pole mount/Cap:  Yes
  • Grille:  Steel
  • Colour:  Black

Physical & Dimensions

  • Height:  614 mm / 24.17 inches
  • Width:  381 mm / 15 inches
  • Depth:  422 mm / 16.61 inches
  • Weight:  22 kg / 48.5 lbs
