ePS6-EN54 6

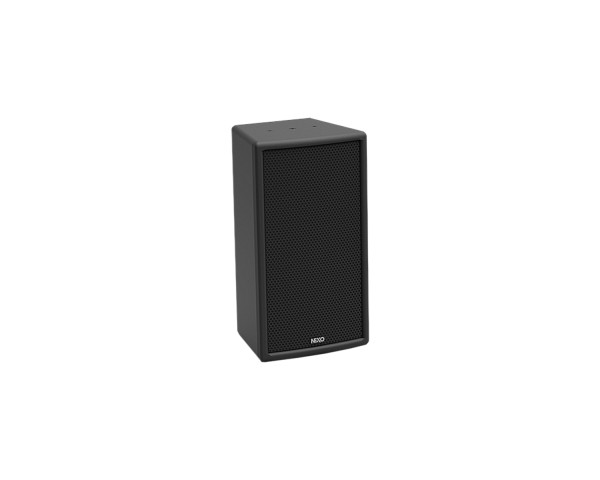

NEXO ePS6-EN54 6 Loudspeaker UV/Salt Water Protection EN54 IP55 Blk - Image 2

Price:: RRP: £947.03 inc VAT
Code:: NEXEPS6EN54
Manufacturer Code:: 01EPS6-EN54
Brand:: NEXO

Main Features

EN54-24 certified, 2-way passive, with high excursion 6” LF and 1.4” diaphragm HF
High power (125 dB peak) point source for outdoor fixed installations
Lightweight (7.1kg / 15.7 lbs) design using robust 15 mm Birch plywood enclosure
NEXO’s Asymmetrical Dispersion Constant Directivity horn design (”PS” Horn), rotatable
IP55 protection level and enhanced all-weather resistance
Finish: Black

ePS6-EN54 6" Loudspeaker UV/Salt Water Protection EN54 IP55 Blk

Measuring 365mm high x 198mm wide x 181mm deep and weighing 7.1Kg, the ePS6-EN54 combines a high excursion 6-inch LF driver with a 1.4-inch diaphragm HF driver in a trapezoidal cabinet constructed in a closed acoustic design from 15mm Baltic birch plywood. Achieving a peak SPL of 125dB with a frequency range of 90Hz to 20kHz, the ePS6-EN54 features a rotatable asymmetric horn, convenient rigging points on the cabinet top, bottom and back, and two pairs of In/Out connectors on pitch screw terminal blocks with an IP cover.

Product Features

EN54-24 certified, 2-way passive, with high excursion 6” LF and 1.4” diaphragm HF
High power (125 dB peak) point source for outdoor fixed installations
Lightweight (7.1kg / 15.7 lbs) design using robust 15 mm Birch plywood enclosure
NEXO’s Asymmetrical Dispersion Constant Directivity horn design (”PS” Horn), rotatable
IP55 protection level and enhanced all-weather resistance
Finish: Black

Product Specifications

With NEXO Processing

Frequency Response @-6 dB: 90 Hz to 20 kHz
Sensitivity 1W@1m: 98 dB SPL Nominal
Peak SPL@1m: 125 dB
Vertical Dispersion: +25°/-30°
Horizontal Dispersion: 50° to 100° asymmetrical
Crossover Frequency: 90 Hz, 120 Hz
Nominal Impedance: 8 Ω
Recommended Power: 310 to 490 Watts / 8 Ohms

Specifications

Number of ways: 2 way passive
LF Component: 6” 8 Ohms long excursion driver
HF Component: 1.4” diaphragm 8 Ohms HF driver on an Asymmetrical Dispersion (“PS”) horn
Connectors: 2 pairs (In/Out) of 5 mm pitch Push-in Cage Clamp terminal blocks (+/- poles)
Compatible cables section: Cables from 0.2 mm² to 4 mm² (AWG 24 to 12) copper section
Compatible cables outside diameter: Cable with maximum outside diameter of 11 mm
Rigging points: 3x M6 - 70 mm pitch rigging points (back) + 2x extra M6 and 1x M10 (top/bot)
Material: 15 mm thick birch plywood body with polyurethane coataing and galvanized grill
Finish: Black structural paint (RAL9005 or Custom RAL upon request)
Front Finish: Galvanized grill in front of UV & Fire resistant acoustic fabric
Height x Width x Depth: 365mm x 198mm x 181mm (14.4” x 7.8” x 7.1”)
Weight: Net: 7.1 kg (15.7 lbs)
Operating temperature range: 0°C - 40 °C (32° F - 104° F)
Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
IP Rating: IP55

System Operation

Recommended powering solution: NXAMP4x1mk2 Powered TDcontroller: Up to 4 x ePS6-EN54 per channel
Optional powering solution:
- DTDcontroller + DTDAMP4x0.7 : Up to 2 x ePS6-EN54 per channel
- DTDcontroller + DTDAMP4x1.3 : Up to 2 x ePS6-EN54 per channel
- NXAMP4x2mk2 Powered TDcontroller: Up to 4 x ePS6-EN54 per channel
- NXAMP4x4mk2 Powered TDcontroller: Up to 4 x ePS6-EN54 per channel
