ES947WC/TB3 Mini Card Cond 3-Pin Flush-Mount Boundary Mic White

« return to previous page

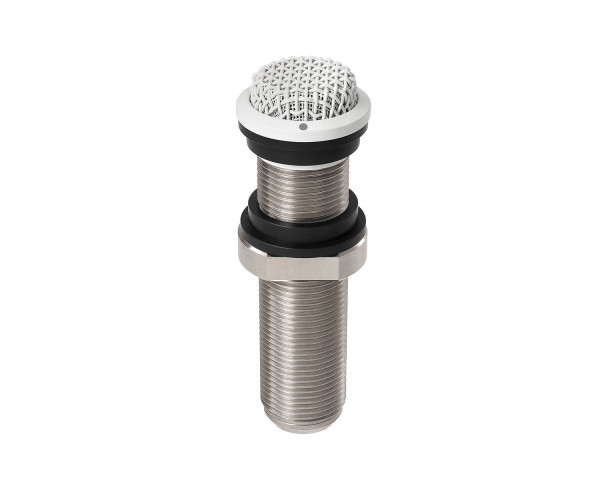

Audio Technica ES947WC/TB3 Mini Card Cond 3-Pin Flush-Mount Boundary Mic White - Main Image

Audio Technica ES947WC/TB3 Mini Card Cond 3-Pin Flush-Mount Boundary Mic White - Image 1

Audio Technica ES947WC/TB3 Mini Card Cond 3-Pin Flush-Mount Boundary Mic White - Image 2

Audio Technica ES947WC/TB3 Mini Card Cond 3-Pin Flush-Mount Boundary Mic White - Image 3

Audio Technica ES947WC/TB3 Mini Card Cond 3-Pin Flush-Mount Boundary Mic White - Image 4

Price:: RRP: £201.00 inc VAT
Code:: AUDES947WCTB3
Manufacturer Code:: ES947WC/TB3
Brand:: Audio Technica

Main Features

Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
Low-profile element provides uniform cardioid polar pattern with 120° acceptance angle
Miniature, space-saving design enables highly inconspicuous tabletop, ceiling and wall mounting
Self-contained power module with TB3M (mini-XLR) output connector
Includes a TA3F-to-XLR cable for use with standard XLR inputs
Rugged all-metal case with a two-layer steel mesh grille

Audio-Technica has taken its low-profile ES947C cardioid boundary microphone and given it an even smaller footprint, making it a great choice for installations with limited space or where a very clean, inconspicuous look is desired. The miniature ES947C/TB3 still gives you the same clear, highly intelligible audio of its larger sibling, mounting unobtrusively in tabletops, ceilings or panels for conferencing, recording, monitoring and other demanding sound pickup applications.

Protected by a rugged all-metal case with a two-layer steel mesh grille, the microphone’s cardioid polar pattern affords a 120° pickup angle, while its UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI).

The ES947C/TB3 is equipped with a self-contained power module with a TB3M (mini-XLR) output connector, eliminating the need for an external power module. It also comes with a TA3F-to-XLR cable, allowing for installation with standard XLR inputs. The microphone is available in black (ES947C/TB3) and white (ES947WC/TB3), and comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.

Product Features

Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
Low-profile element provides uniform cardioid polar pattern with 120° acceptance angle
Miniature, space-saving design enables highly inconspicuous tabletop, ceiling and wall mounting
Self-contained power module with TB3M (mini-XLR) output connector
Includes a TA3F-to-XLR cable for use with standard XLR inputs
Rugged all-metal case with a two-layer steel mesh grille
Rubber Isolators provide mechanical dampening of mounting-surface vibration
Requires 11V to 52V DC phantom power
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
Available in two colours: black (ES947C/TB3) and white (ES947WC/TB3)
RoHS compliant—free from all substances specified in the EU directive on hazardous substances

Product Specifications

Element: Fixed-charge back plate, permanently polarized condenser
Polar Pattern: Cardioid
Frequency Response: 70-15,000 Hz
Open Circuit Sensitivity: -38 dB (0 dB = 1V/Pa, 1 kHz)
Output Impedance: 100 ohms
Maximum Input Sound Level: 135 dB SPL (1 kHz at 1% THD)
Dynamic Range: (typical) 110 dB (1 kHz at max SPL)
Signal-to-Noise Ratio: 69 dB (1 kHz at 1 Pa, A-weighted)
Phantom Power Requirements: 11-52V DC, 2 mA
Weight: 31 g (1.1 oz)
Dimensions: 60.5 mm (2.38") long, 20.0 mm (0.79") head diameter
Output Connector: TB3M-type
Accessories Included: Rubber isolator (x 2), nut, 7.6 m (24.9') microphone cable (TA3F to XLRM)
