ES947WC/XLR Card Cond 3-Pin Flush-Mount Boundary Mic White

« return to previous page

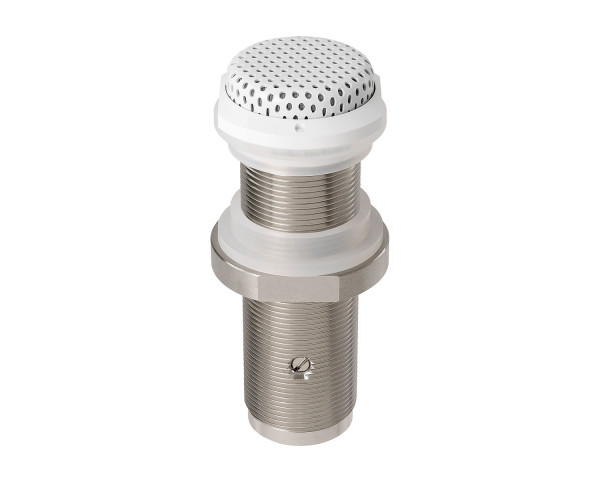

Audio Technica ES947WC/XLR Card Cond 3-Pin Flush-Mount Boundary Mic White - Main Image
Audio Technica ES947WC/XLR Card Cond 3-Pin Flush-Mount Boundary Mic White - Image 1
Audio Technica ES947WC/XLR Card Cond 3-Pin Flush-Mount Boundary Mic White - Image 2
Audio Technica ES947WC/XLR Card Cond 3-Pin Flush-Mount Boundary Mic White - Image 3
Audio Technica ES947WC/XLR Card Cond 3-Pin Flush-Mount Boundary Mic White - Image 4
Price:
RRP: £201.00 inc VAT
Code:
AUDES947WCXLR
Manufacturer Code:
ES947WC/XLR
Brand:
Audio Technica

Quantity required:

Main Features

  • Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
  • Low-profile element provides uniform cardioid polar pattern with 120° acceptance angle
  • Mounts unobtrusively in tabletops, ceilings and panels
  • IPX4 water resistance protects the microphone from splashes of water
  • Self-contained power module with XLRM-type output connector
  • Rugged all-metal case with a two-layer perforated grille
Share:

ES947WC/XLR Card Cond 3-Pin Flush-Mount Boundary Mic White

With its low-profile design that mounts unobtrusively in tabletops, ceilings or panels for minimum visibility, the ES947C/XLR cardioid condenser boundary microphone provides clear, highly intelligible audio that is perfect for conferencing, recording, monitoring and other demanding sound pickup applications.

Protected by a rugged all-metal case with a two-layer perforated grille, the microphone’s cardioid polar pattern affords a 120° pickup angle, while its UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI). The microphone also offers IPX4 water resistance to protect it from splashes of water, and has a small front-of-mic indicator to ensure proper orientation.

The ES947C/XLR is equipped with a self-contained power module with an XLRM-type output connector, eliminating the need for an external power module. It is available in black (ES947C/XLR) and white (ES947WC/XLR), and comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.

Product Features

  • Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
  • Low-profile element provides uniform cardioid polar pattern with 120° acceptance angle
  • Mounts unobtrusively in tabletops, ceilings and panels
  • IPX4 water resistance protects the microphone from splashes of water
  • Self-contained power module with XLRM-type output connector
  • Rugged all-metal case with a two-layer perforated grille
  • Rubber Isolators provide mechanical dampening of mounting-surface vibration
  • Requires 11V to 52V DC phantom power
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Available in two colours: black (ES947C/XLR) and white (ES947WC/XLR)
  • RoHS compliant—free from all substances specified in the EU directive on hazardous substances

Product Specifications

  • Element:  Fixed-charge back plate, permanently polarized condenser
  • Polar Pattern:  Cardioid
  • Frequency Response:  70-8,500 Hz
  • Open Circuit Sensitivity:  -37 dB (0 dB = 1V/Pa, 1 kHz)
  • Output Impedance:  100 ohms
  • Maximum Input Sound Level:  134 dB SPL (1 kHz at 1% THD)
  • Dynamic Range:  110 dB (1 kHz at max SPL)
  • Signal-to-Noise Ratio:  70 dB (1 kHz at 1 Pa, A-weighted)
  • Phantom Power Requirements:  11-52V DC, 2 mA
  • Weight:  62 g (2.2 oz)
  • Dimensions:  26.0 mm (1.02") W x 30.0 mm (1.18") D x 69.0 mm (2.72") H
  • Output Connector:  3-pin XLRM-type
  • Accessories Included:  Rubber isolator (x 2), nut

What's in the Box?

  • ES947WC/XLR
  • Rubber isolator (x 2)
  • Nut
