EVID 4.2 White 2x4" In/Outdoor Speaker Inc Yoke 8Ω

« return to previous page

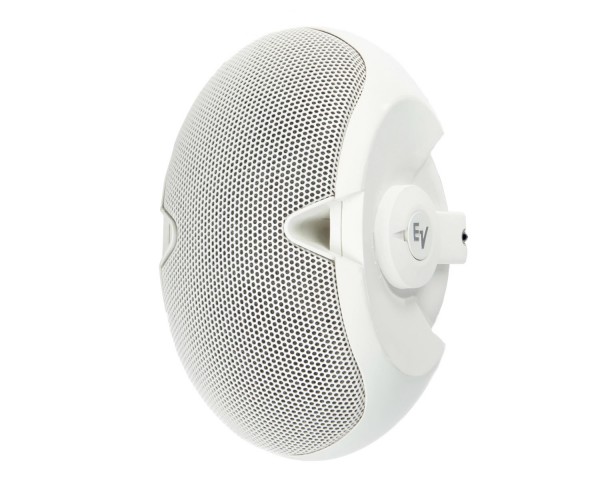

Electro-Voice EVID 4.2 White 2x4 In/Outdoor Speaker Inc Yoke 8Ω - Main Image
Price:
RRP: £167.88 inc VAT
Code:
ELEE42W
Manufacturer Code:
F.01U.117.529
Brand:
Electro-Voice

Quantity required:

Main Features

  • Ideal for restaurants, bars, patios, and retail
  • Vented LF enclosure
  • 1-inch titanium diaphragm HF driver
  • Elliptical weather-resistant ABS enclosure
  • Magnetically shielded for video applications
  • Strong-Arm Mount for easy, flexible aiming
Share:

EVID 4.2 White 2x4" In/Outdoor Speaker Inc Yoke 8ohm

The compact EVID™ 4.2 delivers very fullrange sound from its dual 4-inch LF drivers and a 1-inch titanium tweeter with waveguide. It is able to deliver a 110-dB sound level over a wide coverage area.

TC4W Outdoor Terminal Cover for EVID 4.2 is sold separately.

Product Features

  • Compact full range
  • Ideal for restaurants, bars, patios, and retail
  • Vented LF enclosure
  • 1-inch titanium diaphragm HF driver with neodymium magnetic structure
  • Coherent Coverage Waveguide
  • Full-bandwidth overload protection (LF and HF)
  • Elliptical weather-resistant ABS enclosure
  • Paintable black or white finish
  • Magnetically shielded for video applications
  • Strong-Arm Mount™ for easy, flexible aiming
  • IP Rating: IP34

Product Specifications

General

  • Chassis Size: 101.6mm
  • Colour: White
  • Input Connections: Spring Terminal
  • Speaker Type: Full-range, Mid-High, Two-Way
  • Frequency Response (-10 dB): 65 - 20000 Hz
  • Internal Crossover: Yes
  • Sensitivity 1 W/1 m: 89 dB
  • Max. SPL/1m (calc): 115 dB
  • Coverage (Nominal -6 dB) H: 120°
  • Coverage (Nominal -6 dB) V: 80°
  • System Power Handling (Continuous/Program/Peak): 100//400 Watts
  • LF Transducer: Two 4-inch
  • LF Power Handling: Two 4-inch Watts
  • HF Power Handling: 1-inch Watts
  • HF Transducer: 1-inch
  • Nominal Impedance (Passive): 8Ω
  • Minimum Impedance: 6Ω
  • Outdoor: Yes
  • IP Rating: IP34

Physical & Dimensions

  • Height: 309.89mm
  • Width: 175.26mm
  • Depth: 215.9mm
  • Weight: 3.9kg
