EVID 6.2T 2x6" In/Outdoor Speaker Inc Yoke 8Ω 100V Black

« return to previous page

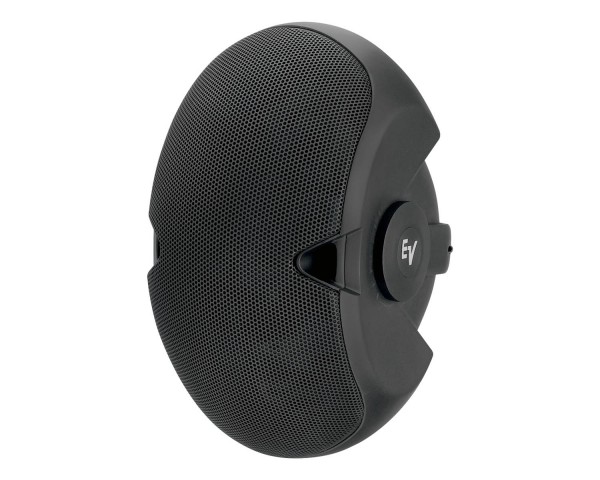

Electro-Voice EVID 6.2T 2x6 In/Outdoor Speaker Inc Yoke 8Ω 100V Black - Main Image
Electro-Voice EVID 6.2T 2x6 In/Outdoor Speaker Inc Yoke 8Ω 100V Black - Image 1
Electro-Voice EVID 6.2T 2x6 In/Outdoor Speaker Inc Yoke 8Ω 100V Black - Image 2
Price:
RRP: £375.84 inc VAT
Code:
ELEE62TB
Manufacturer Code:
F.01U.117.534
Brand:
Electro-Voice

Quantity required:

Main Features

  • T version for 70 or 100 V distributed systems
  • Vented LF enclosure
  • 1-inch titanium diaphragm HF driver
  • Elliptical weather-resistant ABS enclosure
  • Full-bandwidth overload protection (LF and HF)
  • Strong-Arm Mount for easy, flexible aiming
Share:

EVID 6.2T Black 2x6" 100V In/Outdoor Speaker Inc Yoke

The EVID™ 6.2T is an extended-range high-output speaker with dual 6.5-inch woofers and a 1-inch titanium tweeter with waveguide, designed for high SPL over a wide coverage area. The EVID™ 6.2T includes a multi-tap transformer for a 70V or 100V line distribution system.

TC6B Outdoor Terminal Cover for EVID 6.2T is sold separately.

Product Features

  • T version for 70 or 100 V distributed systems
  • Compact full range
  • Ideal for shopping malls, sports bars, and health clubs
  • Vented LF enclosure
  • 1-inch titanium diaphragm HF driver with neodymium magnetic structure
  • Coherent Coverage Waveguide
  • Full-bandwidth overload protection (LF and HF)
  • Elliptical weather-resistant ABS enclosure
  • Paintable black or white finish
  • Magnetically shielded for video applications
  • Strong-Arm Mount™ for easy, flexible aiming
  • IP Rating: IP34

Product Specifcations

General

  • Chassis Size: 152.4mm
  • Colour: Black
  • Input Connections: Spring Terminal
  • Speaker Type: Full-range, Mid-High, Two-Way
  • Transformer Taps: 70 V/100 V: 15 W, 30 W, 60 W, 8 Ω Bypass
  • Frequency Response (-10 dB): 62 - 20000 Hz
  • Internal Crossover: Yes
  • Sensitivity 1 W/1 m: 94 dB
  • Max. SPL/1m (calc): 122 dB
  • Coverage (Nominal -6 dB) H: 100°
  • Coverage (Nominal -6 dB) V: 80°
  • System Power Handling (Continuous/Program/Peak): 150//600 Watts
  • LF Transducer: Two 6-inch
  • LF Power Handling: Two 6-inch Watts
  • HF Power Handling: 1-inch Watts
  • HF Transducer: 1-inch
  • Nominal Impedance (Passive): 8Ω
  • Minimum Impedance: 6Ω
  • Outdoor: Yes
  • IP Rating: IP34

Physical & Dimensions

  • Height: 419mm
  • Width: 228mm
  • Depth: 298mm
  • Weight: 5.3kg
