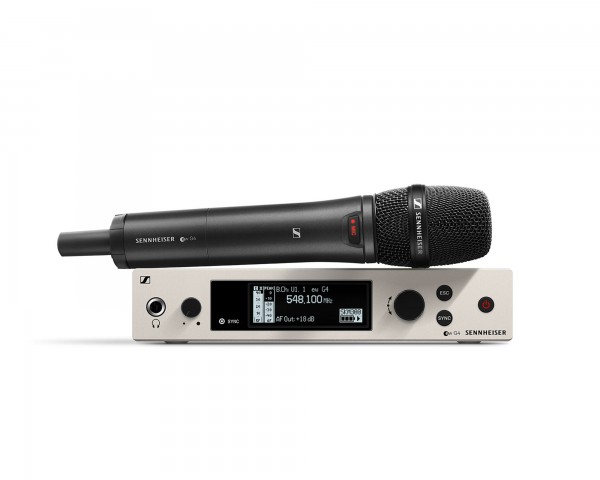

EW300 G4-GBW Handheld Mic System with 865S Supercardioid Tx CH38

Product Features

• Easy to use, fast setup time
• Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
• Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
• Up to 88 MHz bandwidth, up to 32 channels
• Increased RF output power (10/30/50 mW)
• Transmission Range: up to 100 meters / 330 feet
• Compatible with wireless speaker system LSP 500 PRO
• RC (remote control) switch available for the bodypack transmitter

Product Specifications

THIS ITEM (NO.507688) OPERATES ON CH38 (GBw: 606 - 678 MHz)

EM 300-500 G4 - General

• Modulation: Wideband FM
• Frequency ranges:
  • Aw+: 470 - 558 MHz
  • AS: 520 - 558 MHz
  • Gw1: 558 - 608 MHz
  • Gw: 558 - 626 MHz
  • GBw: 606 - 678 MHz
  • Bw: 626 - 698 MHz
  • Cw: 718 - 790 MHz
  • Dw: 790 - 865 MHz
  • JB: 806 - 810 MHz
  • K+: 925 - 937.5 MHz
• Receiving frequencies
  • Max. 2880 receiving frequencies, adjustable in 25  kHz steps
  • 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
  • 6 frequency banks with up to 32 programmable channels
• Switching: bandwidth up to 72 MHz
• Nominal/peak deviation: ±24 kHz / ±48 kHz
• Receiver principle: True diversity
• Sensitivity (with HDX, peak deviation): < 2.5 μV for 52 dBA eff S/N
• Adjacent channel selection: Typically ≥ 75 dB
• Intermodulation attenuation: Typically ≥ 70 dB
• Blocking: ≥ 75 dB
• Squelch: 5 to 25 dBμV in steps of 2 dB
• Pilot tone squelch: Can be switched off
• Antenna inputs: 2 BNC sockets
• Compander system: Sennheiser HDX
• EQ presets (switchable, act on line and monitor outputs):
  • Preset 1: Flat
  • Preset 2: Low Cut (-3 dB at 180 Hz)
  • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
  • Preset 4: High Boost (+6 dB at 10 kHz)
• Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
• Total harmonic distortion (THD): ≤ 0.9 %
• AF output voltage (at peak deviation, 1 kHz AF): 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
• Setting range “AF Out”: 48 dB (3 dB steps)
• Temperature range: -10 °C to +55 °C
• Power supply: 12 V DC
• Current consumption: 350 mA

EM 300-500 G4 - Physical & Dimensions

• Height: 43mm
• Width: 212mm
• Depth: 202mm
• Weight: 980g

SKM 300 G4-S - General

• Modulation: Wideband FM
• Frequency ranges:
  • Aw+: 470 - 558 MHz
  • AS: 520 - 558 MHz
  • Gw1: 558 - 608 MHz
  • Gw: 558 - 626 MHz
  • GBw: 606 - 678 MHz
  • Bw: 526 - 698 MHz
  • Cw: 718 - 790 MHz
  • Dw: 790 - 865 MHz
  • JB: 806 - 810MHz
  • K+: 925 - 937.5 MHz
• Transmission frequencies
  • Max. 2880 frequencies, adjustable in 25 kHz steps
  • 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
  • 6 frequency banks with up to 32 programmable channels
• Switching bandwidth: up to 72 MHz
• Nominal/peak deviation: ±24 kHz / ±48 kHz
• Frequency stability: ≤ ±15 ppm
• RF output power at 50 Ω switchable:
  • Low: typ. 10 mW
  • Standard: typ. 30 mW
  • High: typ. 50 mW
• Pilot tone squelch: Can be switched off
• Compander system: Sennheiser HDX
• AF: frequency response 80 – 18,000 Hz
• Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
• Total harmonic distortion (THD): ≤ 0.9 %
• Setting range for input sensitivity: 48 dB, adjustable in 6 dB steps
• Temperature range: -10 °C to +55 °C
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Nominal voltage: 3 V battery / 2.4 V rechargeable battery
• Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
• Operating time: Typically 8 h

SKM 300 G4-S - Physical & Dimensions

• Ø: 50 x 265mm
• Weight: 450g

MME 865-1

• Transducer principle: pre-polarized condensor microphone
• Sensitivity: 1.6 mV/Pa
• Sound pressure level: 152 dB SPL
• Pick-up pattern: supercardioid

What's in the Box?

• EM 300-500 G4 true diversity receiver
• SKM 300 G4-S handheld transmitter
• MME 865-1 microphone head
• GA 3 rackmount set
• MZQ 1 microphone clamp
• Power supply
• 2 AA batteries
• 2 rod antennas
• Quick guide
• Safety guide
• Manufacturer declaration sheet
