EW-DX TS 5-PIN Gooseneck Tablestand No Mic (U1/5) CH70

« return to previous page

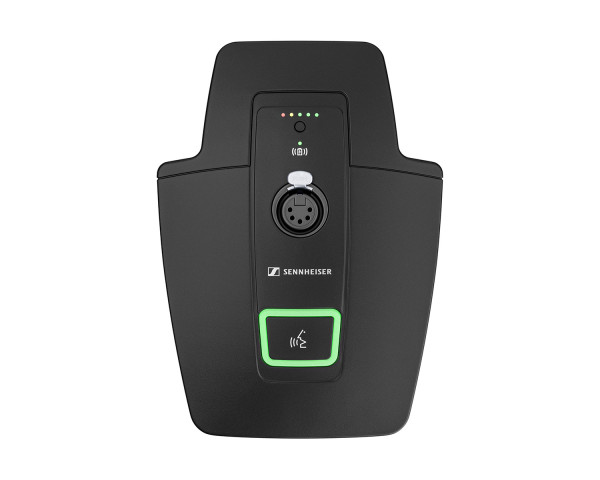

Sennheiser EW-DX TS 5-PIN Gooseneck Tablestand No Mic (U1/5) CH70 - Main Image

Sennheiser EW-DX TS 5-PIN Gooseneck Tablestand No Mic (U1/5) CH70 - Image 1

Sennheiser EW-DX TS 5-PIN Gooseneck Tablestand No Mic (U1/5) CH70 - Image 2

Sennheiser EW-DX TS 5-PIN Gooseneck Tablestand No Mic (U1/5) CH70 - Image 3

Price:: RRP: £802.80 inc VAT
Code:: SENEWDXTS570
Manufacturer Code:: 700197
Brand:: Sennheiser

Main Features

Tablestand transmitter with 5-pin XLR connector
Programmable mute switch
Inductive charging with CHG 2W
Charging via USB
10 h runtime with BA 40 lithium-ion battery
Compatible with MEG 14-40 L-II B gooseneck microphone

Full Description

Sennheiser EW-DX TS 5-PIN Gooseneck Tablestand No Mic (U1/S) CH70

Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly.

EW-DX tablestand transmitters are compatible with a wide range of Sennheiser gooseneck microphones.

Live stock levels for trade accounts. Shipping cut-off 4pm.

Features

Product Features

Tablestand transmitter with 5-pin XLR connector
Programmable mute switch
Inductive charging with CHG 2W
Charging via USB
10 h runtime with BA 40 lithium-ion battery
Compatible with MEG 14-40 L-II B gooseneck microphone
Metal housing

Technical Specs

Product Specifications

Frequency range
- Q1-9: 470.2 - 550 MHz
- R1-9: 520 - 607.8 MHz
- S1-10: 606.2 - 693.8 MHz
- S2-10: 614.2 - 693.8 MHz
- S4-10: 630 - 693.8 MHz
- U1/5: 823.2 - 831.8 MHz & 863.2 - 864.8 MHz
- V3-4: 925.2 - 937.3 MHz
- V5-7: 941.700- 951.800 & 953.050 - 956.050 & 956.650-959.650 MHz
- Y1-3: 1785.2 - 1799.8 MHz
System Latency: 1.9 ms
Input Current: < 300 mA
Input voltage: 2.0 - 4.35 V
Frequency response: 75 to 20,000 Hz
Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
Signal-to-noise ratio: > 90 dB(A)
RF output power: Audio Link: 10 mW; Bluetooth Low Energy: max. 10 mW EIRP
Operating time: typ. 10 h with BA 40
Dynamic range: 134 dB
Input impedance: 30 kΩ
RF sensitivity: < -90 dBm
Sampling rates: 24 bit/48 kHz
XLR Microphone Inputs: XLR 5F
THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level
Weight: approx. 660 g (excl. BA 40)
Storage temperature: -20 °C to 70 °C, (-4 °F to 158 °F)
