Forum 6000 DMU6100 Discussion System Central Unit

« return to previous page

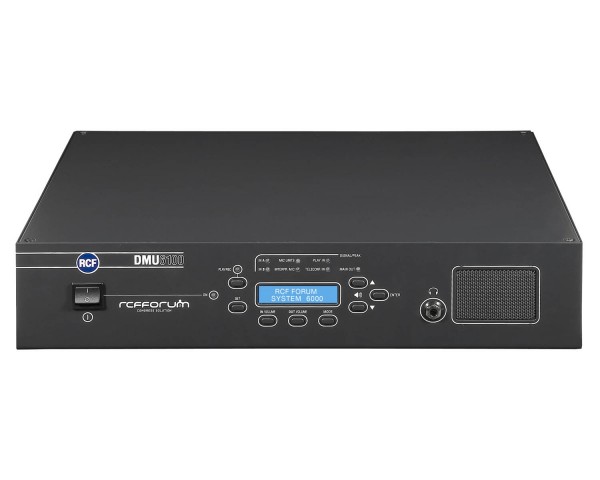

RCF Forum 6000 DMU6100 Discussion System Central Unit - Main Image
RCF Forum 6000 DMU6100 Discussion System Central Unit - Image 1
RCF Forum 6000 DMU6100 Discussion System Central Unit - Image 2
Price:
RRP: £1,779.60 inc VAT
Code:
RCFDMU6100
Manufacturer Code:
17180010
Brand:
RCF

Quantity required:

Main Features

  • Two universal inputs for connecting any additional sources
  • Two inputs can be configured in different ways
  • Dedicated IN and OUT connections are available
  • VOX operation or command operation are available
  • The command switch can be programmed to work as FORCED-ON or FORCED-OFF
  • 4 additional Auxiliary Outputs are available
Share:

Forum 6000 DMU6100 Discussion System Central Unit

The DMU 6100 the heart of the system allowing the direct connection of up to 60 microphone sets on two lines. Specific tools are available on the DM 6100 to test the correct wiring and operation of the system to help installation and maintenance. The status is available on the LCD, including advice of the type of consoles connected. From the front panel of the main unit LCD, function buttons and LEDs help the installer and the user in adjusting all the parameters and volumes, while a speaker and a ¼” jack work as audio monitoring.

Product Features

  • Two universal inputs for connecting any additional sources such as a wireless microphone or a lectern microphone or any other complementary device, even a mixer-preamplifier
  • Two inputs can be configured in different ways; for instance they can be mixed with the system audio, have priority on system microphone sets, one mixed and one priority etc.
  • Dedicated IN and OUT connections are available echo-free for the link to a teleconference system
  • VOX operation or command operation are available
  • The command switch can be programmed to work as FORCED-ON or FORCED-OFF always through configuration menu
  • REC-PLAY input and outputs associated to a switch allow the connection of any recorder/player.
  • 4 additional Auxiliary Outputs are available for the independent recording of the 2 universal inputs and each of the 2 lines of microphone sets

Product Specifications

General

  • Controls
    • CHIME TONE: Yes
    • CONFIGURATION: Front panel, PC Software
  • Processing
    • HIGH-PASS FILTER: 0 Hz
  • Input section
    • BALANCED: 7
    • GENERAL PURPOSE INPUTS (GPI): 4
    • LINE CONNECTORS: RCA
    • LINE INPUTS: 5
    • MIC+LINE CONNECTORS: XLR
    • MIC+LINE INPUTS: 2
    • MIC+LINE PHANTOM: 23 V DC
    • VOX: (MIC+LINE): Yes
    • MONO: 11
    • PAGING CONNECTORS: RJ45
    • PAGING INPUTS: 4
    • TOTAL NUMBER OF INPUTS: 11
    • UNBALANCED: 4
  • Output section
    • SIGNAL OUTPUT CONNECTORS: RCA, XLR
    • GENERAL PURPOSE OUTPUTS (GPO): 1
    • SIGNAL OUTPUT NUMBER: 7
  • Physical specifications
    • CABINET/CASE MATERIAL: Metal
    • COLOR: Black
    • RACK MOUNTING: 19", 2U
  • Power requirement
    • OPERATING VOLTAGE: 90-240 V~ 50/60Hz
    • POWER CONSUMPTION: 400 W
  • Protections
    • COOLING: Convection

Physical & Dimensions

  • Height: 88mm
  • Width: 430mm
  • Depth: 310mm
  • Weight: 5.77kg
