Fuze Profile Moving Head RGBMA LED 305W 7-42° Zoom

« return to previous page

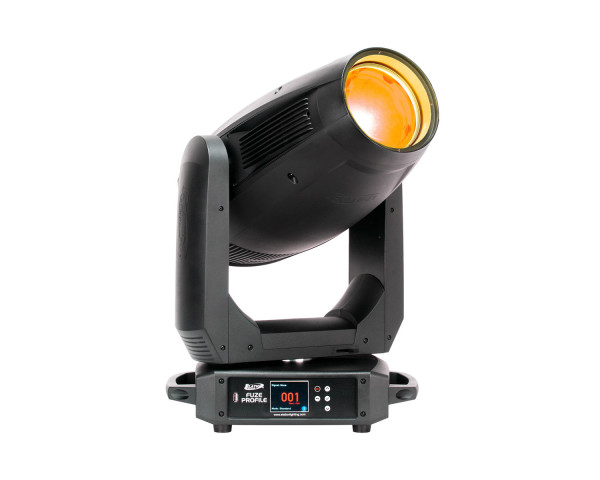

Elation Fuze Profile Moving Head RGBMA LED 305W 7-42° Zoom - Main Image
Elation Fuze Profile Moving Head RGBMA LED 305W 7-42° Zoom - Image 1
Elation Fuze Profile Moving Head RGBMA LED 305W 7-42° Zoom - Image 2
Elation Fuze Profile Moving Head RGBMA LED 305W 7-42° Zoom - Image 3
Elation Fuze Profile Moving Head RGBMA LED 305W 7-42° Zoom - Image 4
Elation Fuze Profile Moving Head RGBMA LED 305W 7-42° Zoom - Image 5
Elation Fuze Profile Moving Head RGBMA LED 305W 7-42° Zoom - Image 6
Elation Fuze Profile Moving Head RGBMA LED 305W 7-42° Zoom - Image 7
Price:
RRP: £5,268.00 inc VAT
Code:
ELA0109
Manufacturer Code:
1237000211
Brand:
Elation

Quantity required:

Main Features

  • Extended colour RGBMA LED Engine, 92 CRI
  • Rotating and Fixed Gobos plus Animation Wheel
  • Full Blackout Framing System
  • Iris, Prism, and Frost
  • Wide Zoom Range from 7° to 42°
  • Motorised Zoom
Share:

Fuze Profile Moving Head RGBMA LED 305W 7-42° Zoom

The FUZE PROFILE ™ is an automated LED framing fixture designed for theatre, television and a wide array of other precision lighting applications. The 92 CRI engine utilises a 5-colour homogenised LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate colour reproduction while delivering a powerful output of over 10,000 lumens. Virtual colour temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED colour array.

The FUZE PROFILE is designed for any application where a fully automated ellipsoidal fixture with outstanding and impactful colour range and quality is required. A rotating gobo wheel, fixed gobo wheel, animation wheel, frost, prism and iris round out its comprehensive feature set in a compact, quiet and lightweight fixture.

Product Features

  • Extended colour RGBMA LED Engine, 92 CRI
  • Rotating and Fixed Gobos plus Animation Wheel
  • Full Blackout Framing System
  • Iris, Prism, and Frost
  • Wide Zoom Range from 7° to 42°
  • Motorised Zoom

Product Specifications

Source

  • 305W 6,500K RGBMA LED Engine
  • 30,000 Hour Average LED Life

Photometric Data

  • 10,100 Total Lumen Output
  • CRI 92
  • Zoom Range: 7° – 42°
  • Beam Angle: 7.5° – 39.9°
  • Field Angle: 8.6° – 44.2°

Effects

  • Motorised Zoom
  • 4 Rotating Full Blackout Framing Blades, ±60° Index
  • Variable Frost Filter
  • 4-Facet Prism
  • Motorised Iris
  • Variable 16-bit Dimming Curve Modes
  • High-Speed Electronic Shutter and Strobe
  • Pan Angle: 540° / 630°
  • Tilt Angle: 270°

Colour

  • RGBMA Colour Array
  • CMY Emulation
  • Variable CCT: 2400K – 8500K
  • Green/Magenta Shift
  • Virtual Gel Swatch Book

Gobos

  • 1 × 6 Rotating / Indexing Interchangeable Glass Gobos
  • 1 × 7 Fixed Glass Gobo
  • Animation Wheel

Control / Connections

  • 4 DMX Channel Modes (RGBMA 38 / 59) (CMY 36 / 55)
  • 16-bit Pan, Tilt, and Dimming Control
  • DMX Adjustable LED Frequency
  • DMX, RDM Protocol Support
  • 4-Button Touch Control Panel
  • Full-Colour 180° Reversible LCD Menu Display
  • 16-bit Resolution Adjustable Movement
  • 5-pin DMX In/Out
  • IP65 Locking Power Cable In/Out
  • With Wired Digital Communication Network

Electrical / Thermal

  • AC 100–240V – 50/60Hz
  • 540W Max Power Consumption
  • -10°C to 45°C (14°F to 113°F)
  • BTU/hr (±10%) 1841

Approvals / Ratings

  • CE | cETLus | IP20

Size / Weight

  • Length:  407 mm (16.0")
  • Width:  256 mm (10.1")
  • Vertical Height:  698 mm (27.4")
  • Weight:  25 kg (55.1 lbs)
