Fuze Spot Moving Head RGBMA LED 305W

« return to previous page

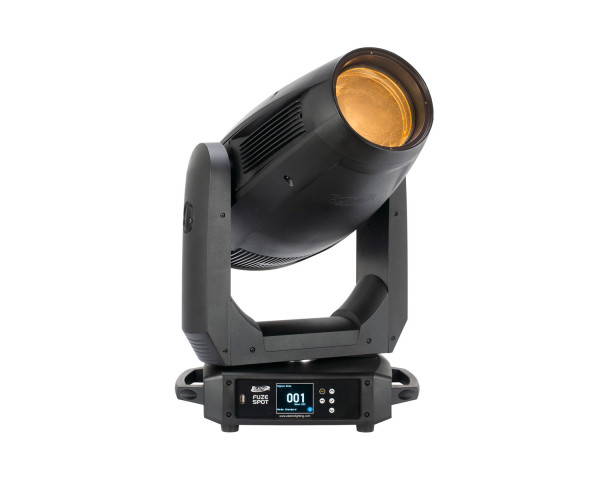

Elation Fuze Spot Moving Head RGBMA LED 305W - Main Image
Elation Fuze Spot Moving Head RGBMA LED 305W - Image 1
Elation Fuze Spot Moving Head RGBMA LED 305W - Image 2
Elation Fuze Spot Moving Head RGBMA LED 305W - Image 3
Elation Fuze Spot Moving Head RGBMA LED 305W - Image 4
Elation Fuze Spot Moving Head RGBMA LED 305W - Image 5
Elation Fuze Spot Moving Head RGBMA LED 305W - Image 6
Elation Fuze Spot Moving Head RGBMA LED 305W - Image 7
Price:
RRP: £4,134.00 inc VAT
Code:
ELA0112
Manufacturer Code:
1237000212
Brand:
Elation

Quantity required:

Main Features

  • 5-colour homogenised LED array consisting of Red, Green, Blue, Mint, and Amber
  • Extended colour RGBMA LED Engine, 92 CRI
  • Two rotating Gobo Wheels plus Animation Wheel
  • Iris, Prism, and Frost
  • Wide Zoom Range from 7° to 42°
  • Compact, quiet and lightweight fixture
Share:

Fuze Spot Moving Head RGBMA LED 305W

The FUZE SPOT™ is an automated LED spot fixture designed for theatre, television and a wide array of other precision lighting applications. The 92 CRI engine utilises a 5-colour homogenised LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate colour reproduction while delivering a powerful output of over 10,000 lumens. Virtual colour temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED colour array.

The FUZE SPOT is designed for any application where an automated ellipsoidal fixture with outstanding and impactful colour range and quality is required. Dual rotating gobo wheels, animation wheel, frost, prism and iris round out its comprehensive feature set in a compact, quiet and lightweight fixture.

Product Features

  • 5-colour homogenised LED array consisting of Red, Green, Blue, Mint, and Amber
  • Extended colour RGBMA LED Engine, 92 CRI
  • Two rotating Gobo Wheels plus Animation Wheel
  • Iris, Prism, and Frost
  • Wide Zoom Range from 7° to 42°
  • Compact, quiet and lightweight fixture

Product Specifications

Source

  • 305W 6,500K RGBMA LED Engine
  • 30,000 Hour Average LED Life

Photometric Data

  • 10,100 Total Lumen Output
  • CRI 92
  • Zoom Range 7° - 42°
  • Beam Angle 7.5° - 39.9°
  • Field Angle 8.6° - 44.2°

Effects

  • Motorised Zoom
  • Variable Frost Filter
  • 4 Facet Prism
  • Motorised Iris
  • Variable 16-bit Dimming Curve Modes
  • High Speed Electronic Shutter and Strobe
  • Pan Angle: 540° (630°)
  • Tilt Angle 270°

Colour

  • RGBMA Colour Array
  • CMY Emulation
  • Variable CCT 2400K - 8500K
  • Green/Magenta Shift
  • Virtual Gel Swatch Book

Gobos

  • 2x 6 Rotating / Indexing Interchangeable Glass Gobos
  • Animation Wheel

Control / Connections

  • 4 DMX Channel Modes (RGBMA 31 / 41) (CMY 29 / 37)
  • 16-bit Pan, Tilt, and Dimming Control
  • DMX Adjustable LED Frequency
  • DMX, RDM Protocol Support
  • 4 Button Touch Control Panel
  • Full Colour 180° Reversible LCD Menu Display
  • Locking 5pin XLR Connector In/Out
  • IP65 Locking Power Connector In/Out
  • With Wired Digital Communication Network

Electrical / Thermal

  • AC 100-240V - 50/60Hz
  • 466W Max Power Consumption
  • 14°F to 113°F (-10°C to 45°C)
  • BTU/hr (+/- 10%) 1589.06

Approvals / Ratings

  • CE | cETLus | IP20

Size / Weight

  • Length:  16.0” (407mm)
  • Width:  10.1" (256mm)
  • Vertical Height:  27.4" (698mm)
  • Weight:  46.3 lbs. (21kg)
