GEOM1210 12

« return to previous page

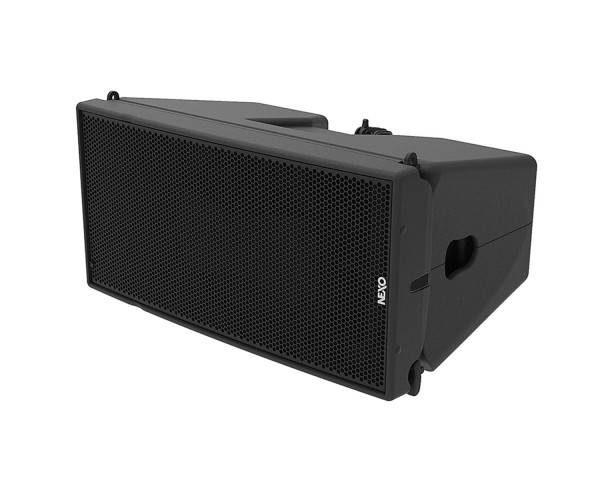

NEXO GEOM1210 12 Neodymium Touring Line Array Module 10° Black - Image 1

NEXO GEOM1210 12 Neodymium Touring Line Array Module 10° Black - Image 2

Price:: RRP: £4,382.40 inc VAT
Code:: NEXGEOM1210
Manufacturer Code:: 01GEOM1210
Brand:: NEXO

Main Features

12" Neodymium Line Array Module
Powerful line array element that can be stacked or flown, with or without its companion sub the MSUB18
Integrated rigging hardware with no loose part and AutoRigTM feature
Incorporates latest NEXO patented technology from the flagship STM series
Comprehensive range of versatile, multifunction accessories for deploying the GEO M12 in a wide variety of applications
Available in black, white and custom RAL colours

Full Description

GEOM1210 12" Neodymium Touring Line Array Module 10° Black

The GEO M1210 is 2-way passive or active line array element with 12″ LF and 3″ voice coil / 1.4″ throat HF drivers. Measuring 700mm wide x 370mm high x 446mm deep and weighing 34kg, the GEO M1220 is a touring version of the GEOM12 with 10° vertical dispersion. Cabinets can be set for 80° or 120° horizontal dispersion using magnetic flanges in the waveguide, with no tools required. Cabinets are constructed from a honeycomb-structure urethane co-polymer material and feature integral rigging with no loose parts and handles on the rear and sides. GEO M1210 is available in black, white or custom RAL colours.

Features

Product Features

Powerful line array element that can be stacked or flown, with or without its companion sub the MSUB18
Integrated rigging hardware with no loose part and AutoRigTM feature
Incorporates latest NEXO patented technology from the flagship STM series
Comprehensive range of versatile, multifunction accessories for deploying the GEO M12 in a wide variety of applications
Available in black, white and custom RAL colours

Technical Specs

Product Specifications

General

Frequency Response @-6 dB: 50 Hz to 20 kHz
Sensitivity 1W@1m: 105 dB SPL Nominal
Peak SPL@1m: 140 dB
Vertical Dispersion: 10°
Horizontal Dispersion: 80° / 120°
Passive Mode Crossover Frequency: 1.1 kHz
Nominal Impedance: Active mode: (8 ¬ LF + 16 ¬ HF) / Passive mode: 8Ω
Recommended Power: Active mode: (1250 Watts LF + 625 W HF) / Passive mode: 1250 Watts

Features

LF Component: 1 x 12” 8 Ohms long excursion Neodymium driver with PDDTM
HF Component: 1 x 3” voice coil 1.4” throat driver on a BEA/FEA optimized HR WavesourceTM
Height x Width x Depth: 370mm x 700mm x 446 mm (14.6” x 27.6” x17.6”)
Weight: Net: 34 kg (75 lbs)
Connectors: 2 x NL4, 4 poles connectors
Connectors pinout: Passive mode: (1+/1- Through, 2+/2- GEO M12) / Active Mode: (1+/1- LF, 2+/2- HF)
Active / Passive mode selection: Ruggedized, recessed, waterproof 2 position switch
Construction: Lightweight Polyurethane Composite
Fittings: 2 x Side handles horizontal + back grip
Front Finish: Steel front grill + back mesh
Operating temperature range: 0°C - 40 °C (32° F - 104° F)
Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
