GigBAR Bridge ILS 2in1 Lighting Bar Movers/Wash

« return to previous page

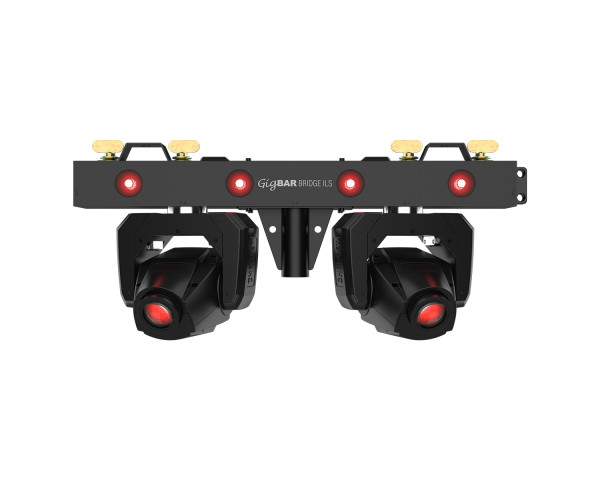

CHAUVET DJ GigBAR Bridge ILS 2in1 Lighting Bar Movers/Wash - Main Image

CHAUVET DJ GigBAR Bridge ILS 2in1 Lighting Bar Movers/Wash - Image 1

CHAUVET DJ GigBAR Bridge ILS 2in1 Lighting Bar Movers/Wash - Image 2

CHAUVET DJ GigBAR Bridge ILS 2in1 Lighting Bar Movers/Wash - Image 3

CHAUVET DJ GigBAR Bridge ILS 2in1 Lighting Bar Movers/Wash - Image 4

CHAUVET DJ GigBAR Bridge ILS 2in1 Lighting Bar Movers/Wash - Image 5

Price:: RRP: £906.00 inc VAT
Code:: CHAGBBRIDGEILS
Manufacturer Code:: GIGBARBRIDGEILS
Brand:: CHAUVET DJ

Main Features

2-in-1 lighting system that includes moving heads and washes pre-mounted on a single bar
Quickly and securely connect multiple fixtures with the built-in locking system
Built-in DFI transceiver communicates DMX or ILS signals wirelessly
Safely mounts onto truss or mobile tripods using the removable bracket
Easy navigation and access all functions directly from the full-color LCD display
Powerful moving heads with separate colour and gobo wheels allow for creative programming

Enjoy a customizable party lighting setup that suits your needs with the connectable GigBAR Bridge ILS. This 2-in-1 lighting system has a minimal setup time thanks to its moving heads and wash lights that come pre-mounted onto a single bar. ILS compatibility makes creating coordinated light shows with this unit and different fixture types easy as 1, 2, 3. Create dynamic dancefloor moments with just one system.

Product Features

2-in-1 lighting system that includes moving heads and washes pre-mounted on a single bar
Quickly and securely connect multiple fixtures with the built-in locking system
Built-in DFI transceiver communicates DMX or ILS signals wirelessly
Safely mounts onto truss or mobile tripods using the removable bracket
Easy navigation and access all functions directly from the full-color LCD display
Powerful moving heads with separate colour and gobo wheels allow for creative programming
Totem Mode keeps the moving heads focused on the dance floor
Save time running cables and extension cords by power linking multiple units
ILS compatibility for use in the ILS ecosystem

Product Specifications

DMX Channels: 3, 16 or 46
DMX Connectors: 3-pin XLRv
Strobe Rate: 0 to 20Hz
Operating Frequency: 2.4 GHZ
Power Linking: 8 units @ 120 V; 13 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Weight: 18.6 lbs (8.4 kg)
Size: 26 x 2.8 x 12 in (660 x 71 x 305 mm)
Approvals: CE, RoHS , FCC
Colours (moving head): 9 + open, split colours, continuous scroll at variable speeds
Gobos (moving head): 9 + open, continuous scroll at variable speeds
Light Source (moving head): 1 LED (cool white) 70W (3A), 50,000 hours life expectancy Light Source (wash): 4 LEDs (hex-colour RGBAW + UV) 10W (1.3 A), 50,000 hours life expectancy.
Light Source (wash): 4 LEDs (hex-colour RGBAW + UV) 10W (1.3 A), 50,000 hours life expectancy.
Beam Angle (wash): Field Angle (wash): 22°
Field Angle (wash): 38°
Power and Current: 191 W, 1.5 A @ 120 VAC, 60Hz: 191 W, 1.5 A @ 120 VAC, 60Hz
Power and Current: 175 W, 1 A @ 230 VAC, 50Hz
Fits Tripod Sizes: 1.5 in (37.4 mm)
Max Unobstructed Distance (D-Fi): 600 ft (183 m)
Optional Controllers: RF, Footswitch, ILS Command
