GLXD4+ Digital Wireless Dual Band Tabletop Receiver Z4

« return to previous page

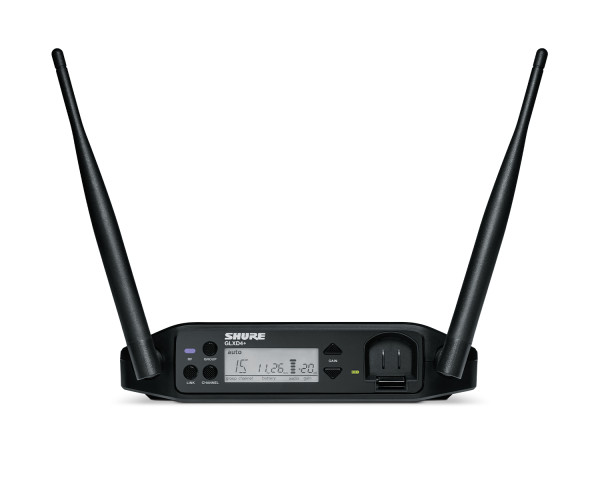

Shure GLXD4+ Digital Wireless Dual Band Tabletop Receiver Z4 - Main Image
Shure GLXD4+ Digital Wireless Dual Band Tabletop Receiver Z4 - Image 1
Shure GLXD4+ Digital Wireless Dual Band Tabletop Receiver Z4 - Image 2
Shure GLXD4+ Digital Wireless Dual Band Tabletop Receiver Z4 - Image 3
Price:
RRP: £276.00 inc VAT
Code:
SHUGLXD4UKZ4
Manufacturer Code:
GLXD4+UK=-Z4
Brand:
Shure

Quantity required:

Main Features

  • Z4 Band: 2.4 & 5.8 GHz
  • For use as part of GLXD+ Wireless Systems
  • Tabletop Receiver
  • Built-in Battery Charger Bay
  • Fixed Antennas at Front
  • Automatically moves away from interference without audio interruption
Share:

GLXD4+ Digital Wireless Dual Band Tabletop Receiver Z4

The GLXD4+ Dual Band Tabletop Receiver delivers exceptional digital audio clarity. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance. Go wireless without complication.

GLX-D+ Dual Band Digital Wireless offers confidence without complexity. Dual-band operation in 2.4 and 5.8 GHz more than doubles the available bandwidth to avoid interference without audio interruption. The receiver is compatible with a selection of lavalier, headset, and vocal microphones. The rechargeable lithium-ion battery offers up to 12 hours of runtime, and can be charged directly on the receiver or via USB-C.

Product Features

  • Z4 Band: 2.4 & 5.8 GHz
  • For use as part of GLXD+ Wireless Systems
  • Tabletop Receiver
  • Built-in Battery Charger Bay
  • Fixed Antennas at Front
  • Automatically moves away from interference without audio interruption
  • Exceptional digital audio clarity
  • Compatible with multiple legendary microphone options
  • Operates in 2.4 and 5.8 GHz spectrum
  • Rechargeable battery delivers up to 12 hours of runtime
  • Rock-solid RF performance for multiple system installations
  • License-free frequency range

Product Specifications

  • Power Requirements:  14.5 V – 17 V, 600 mA (efficiency level VI power supply)
  • Antenna Type:  Dual-band ½ Wave Sleeve Dipole, non-removable
  • Dimensions
    • Antenna folded:  7.2 x 4.8 x 1.6 in. (182.82 x 121.97 x 40.3 mm)
    • Antenna opened:  7.2 x 4.8 x 7.3 in. (182.82 x 121.97 x 185.6 mm)
  • Weight:  10.9 oz (310 g)
  • Housing:  PC/ABS
  • Spurious Rejection:  > 35 dB, typical
  • Gain Adjustment Range:  -20 to 40 dB, 1 dB increments
  • Phantom Power Protection:  Yes
  • Audio Output:
    • Configuration
      • XLR Output:  Impedance balanced
      • 6.35 mm (1/4") output: Impedance balanced
    • Impedance
      • XLR Output:  100 Ω
      • 6.35 mm (1/4") output:  100 Ω (50 Ω, Unbalanced)
    • Maximum Audio Output Level
      • XLR connector:  +1 dBV
      • 6.35 mm (1/4") connector:  +8.5 dBV
    • Pin Assignments
      • XLR Output:  1=ground, 2=hot, 3=cold
      • 6.35 mm (1/4") connector:  Tip=audio, Ring=no audio, Sleeve=ground
  • Receiver Antenna Input:
    • Impedance:  50 Ω
    • Maximum Input Level:  -20 dBm

What's in the Box?

  • GLXD4+ Receiver
  • PS43 Power Supply
