GLXD4R+ Digital Wireless Dual Band Half-Rack Receiver Z4

« return to previous page

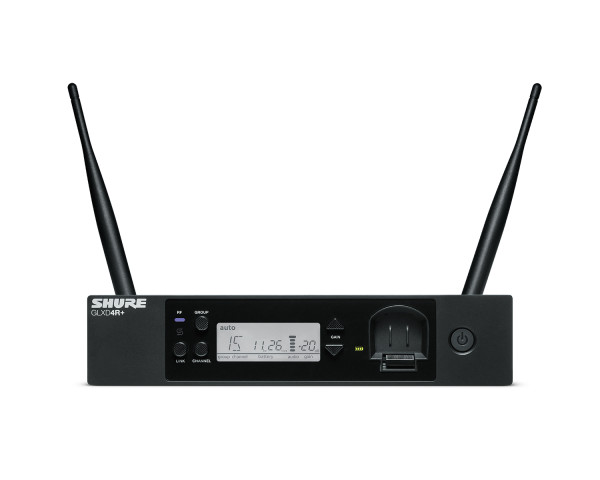

Shure GLXD4R+ Digital Wireless Dual Band Half-Rack Receiver Z4 - Main Image
Shure GLXD4R+ Digital Wireless Dual Band Half-Rack Receiver Z4 - Image 1
Shure GLXD4R+ Digital Wireless Dual Band Half-Rack Receiver Z4 - Image 2
Shure GLXD4R+ Digital Wireless Dual Band Half-Rack Receiver Z4 - Image 3
Shure GLXD4R+ Digital Wireless Dual Band Half-Rack Receiver Z4 - Image 4
Price:
RRP: £384.00 inc VAT
Code:
SHUGLXD4RUKZ4
Manufacturer Code:
GLXD4R+UK=-Z4
Brand:
Shure

Quantity required:

Main Features

  • Z4 Band: 2.4 & 5.8 GHz
  • For use as part of GLXD+ Wireless Systems
  • Rackmount Receiver
  • Detachable Antennas
  • Built-in Battery Charger Bay
  • Automatically moves away from interference without audio interruption
Share:

GLXD4R+ Digital Wireless Dual Band Half-Rack Receiver Z4

The GLXD4+ Dual Band Rack Receiver delivers exceptional digital audio clarity. In combination with the new GLXD+ Dual Band Frequency Manager provides seamless operation with advanced RF performance for up to 16 simultaneous channels. Go wireless without complication.

GLX-D+ Dual Band Digital Wireless offers confidence without complexity. Dual-band operation in 2.4 and 5.8 GHz more than doubles the available bandwidth to avoid interference without audio interruption. The receiver is compatible with a selection of lavalier, headset, and vocal microphones. The included lithium-ion battery offers up to 12 hours of runtime, and can be charged directly on the receiver or via USB-C. Rack-mount receivers can be combined with the GLX-D+ Frequency Manager and directional antennas (both sold separately) for installations where a larger number of channels are needed.

Product Features

  • Z4 Band: 2.4 & 5.8 GHz
  • For use as part of GLXD+ Wireless Systems
  • Rackmount Receiver
  • Detachable Antennas
  • Built-in Battery Charger Bay
  • Automatically moves away from interference without audio interruption
  • Exceptional digital audio clarity
  • Compatible with multiple legendary microphone options
  • Operates in 2.4 and 5.8 GHz spectrum
  • Rechargeable battery delivers up to 12 hours of runtime
  • Rock-solid RF performance for multiple system installations
  • License-free frequency range

Product Specifications

  • Power Requirements:  14.5 V – 17 V, 600 mA (efficiency level VI power supply)
  • Antenna Type:  Dual-band ½ Wave Sleeve Dipole
  • Dimensions:  7.7 x 6.4 x 1.6 in. (196.8 x 162.97 x 41.8 mm), without antenna
  • Weight:  30.5 oz (866 g)
  • Housing:  Steel
  • Spurious Rejection:  > 35 dB, typical
  • Gain Adjustment Range:  -18 to 42 dB, 1 dB increments
  • Phantom Power Protection:  Yes
  • Audio Output:
  • Configuration
    • XLR Output:  Balanced
    • 6.35 mm (1/4") output:  Impedance balanced
  • Impedance
    • XLR Output:  100 Ω
    • 6.35 mm (1/4") output:  100 Ω (50 Ω, Unbalanced)
  • Full Scale Output
    • 6.35 mm (1/4"):  +12 dBV
    • XLR:  LINE setting = +18 dBV, MIC setting = -12 dBV
  • Mic/Line Switch:  30 dB pad
  • Pin Assignments
    • XLR Output:  1=ground, 2=hot, 3=cold
    • 6.35 mm (1/4") connector:  Tip=audio, Ring=no audio, Sleeve=ground
  • Receiver Antenna Input:
  • Impedance:  50 Ω
  • Maximum Input Level:  -20 dBm

What's in the Box?

  • 1 x GLXD4R+ Receiver
  • 1 x PS43 Power Supply
  • 1 x Rack-mount Hardware Kit

Product Downloads
