HX5W Variable Dispersion 4-Module Speaker 200W White

« return to previous page

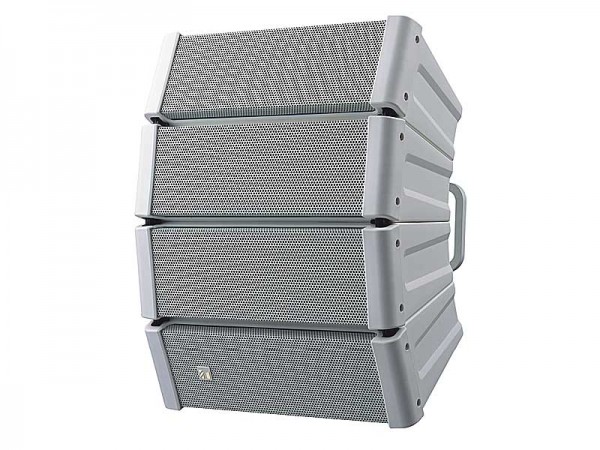

TOA HX5W Variable Dispersion 4-Module Speaker 200W White - Main Image
TOA HX5W Variable Dispersion 4-Module Speaker 200W White - Image 1
TOA HX5W Variable Dispersion 4-Module Speaker 200W White - Image 2
TOA HX5W Variable Dispersion 4-Module Speaker 200W White - Image 3
TOA HX5W Variable Dispersion 4-Module Speaker 200W White - Image 4
TOA HX5W Variable Dispersion 4-Module Speaker 200W White - Image 5
Price:
RRP: £690.00 inc VAT
Code:
TOAHX5W
Manufacturer Code:
HX-5W
Brand:
TOA

Quantity required:

Main Features

  • Ideal for auditoriums, houses of worship and gymnasiums
  • Adjustable dispersion angle to 60, 45, 30 or 15 degree
  • Improved intelligibility through tailored coverage
  • Compact design includes four preassembled modules
  • Lightweight polypropylene construction
  • Vertical or horizontal mounting
Share:

HX-5W Variable Dispersion 4-Module Speaker 200W White

The HX-5W is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in directivity. It is ideal for reproducing clear sound in spaces with long reverberation times or high background noises. The HX-5W is designed for indoor use.

Product Features

  • Ideal for auditoriums, houses of worship and gymnasiums
  • Adjustable dispersion angle to 60, 45, 30 or 15 degree
  • Improved intelligibility through tailored coverage
  • Compact design includes four preassembled modules
  • Lightweight polypropylene construction
  • Vertical or horizontal mounting

Product Specifications

General

  • Enclosure: Bass-reflex type
  • Power Handling Capacity: Continuous pink noise: 200 W, Continuous program: 600 W
  • Rated Impedance: 8 Ω
  • Sensitivity (1 W, 1 m): 96 dB (60゜ mode), 97 dB (45゜ mode), 98 dB (30゜ mode), 99 dB (15゜ mode)
  • Frequency Response: 70 Hz - 20 kHz (-10 dB), 75 Hz - 20 kHz (-10 dB), 80 Hz - 20 kHz (-10 dB), 85 Hz - 20 kHz (-10 dB)
  • Crossover Frequency: 4 kHz
  • Directivity Angle: Horizontal: 100゜ (2 kHz or more), Vertical: 60゜ (800 Hz or more), 45゜ (1.2 kHz or more), 30゜ (1.6 kHz or more), 15゜ (3.2 kHz or more) variable
  • Speaker Component: Low frequency: 12 cm cone-type × 4, High frequency: Balanced dome-type × 12
  • Input Terminal: Speakon NL4MP × 2 and M4 screw terminal

Physical & Dimensions

  • Dimensions: 408 (W) × 546 (H) × 342 (D) mm
  • Weight: 16 kg
