IDS108-T 8

« return to previous page

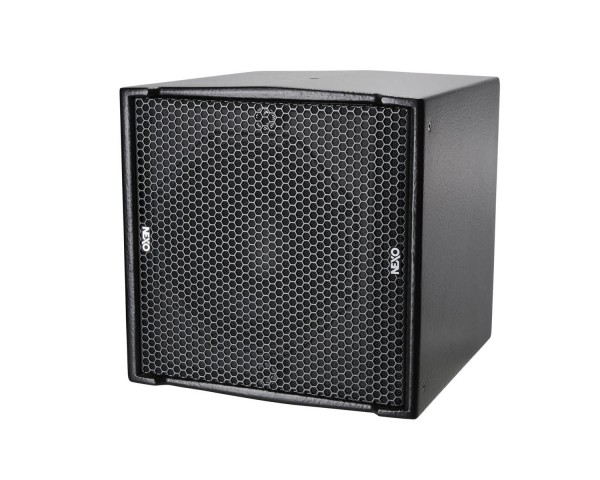

NEXO IDS108-T 8 Compact Touring Subwoofer 300W Black - Image 1

NEXO IDS108-T 8 Compact Touring Subwoofer 300W Black - Image 2

NEXO IDS108-T 8 Compact Touring Subwoofer 300W Black - Image 3

Price:: RRP: £972.00 inc VAT
Code:: NEXIDS108T
Manufacturer Code:: 01IDS.108
Brand:: NEXO

Main Features

High power, compact sub that can be stacked or hanged, with or without its companion main element the ID14
Light and easy to hang with a dedicated bracket
Touring version with Magnelis steel grille and Speakon connectivity
Comprehensive range of accessories for deploying the IDS108 in a wide variety of applications
Finish: Black

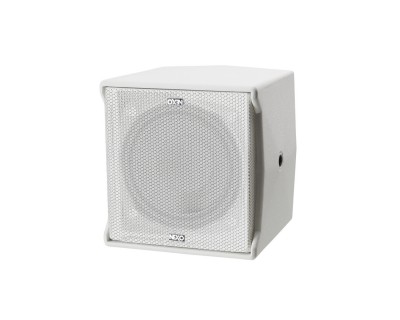

Also available in white or custom colours on request

IDS108-T 8" Compact Touring Subwoofer 300W Black

The IDS108 is the ideal companion for the ID14 compact point source, sharing same aesthetic design and flyable together from the same point.

Using a high efficiency bass-reflex design, the NEXO IDS108 features a long excursion 8 inch Neodymium driver precisely tuned to match the frequency response of the ID14. The result is a particularly articulate low end with a very high output level for its size.

The touring version features one connection plate with two Speakon® connectors and a front Magnelis steel grill. On the Installation version, the connectivity is made through cable gland and captive two core cables, ensuring IP54 protection, while the front grill is covered by an acoustic cloth. Both versions are available in black, white or custom colours on request.

The IDS108 shares the same phase response as other NEXO speakers, making it extremely easy to mix with other NEXO systems, e.g with the larger MSUB18 or with other NEXO subs, without risk of comb filtering or requiring complex electronic adjustment.

Product Features

High power, compact sub that can be stacked or hanged, with or without its companion main element the ID14
Light and easy to hang with a dedicated bracket
Touring version with Magnelis steel grille and Speakon connectivity
Comprehensive range of accessories for deploying the IDS108 in a wide variety of applications

Product Specifications

General

Frequency Response @-6 dB: 50 Hz to 150 Hz
Sensitivity 1W@1m: 95 dB
Peak SPL@1m: 122 dB
Available Crossover Frequencies: 50 – 120 Hz, 50 – 150 Hz
Nominal Impedance: 8 Ohms
Recommended Power: 300 to 500 Watts / 8 Ohms

Specification Features

Component: 1 x 8” 8 Ohms long excursion Neodymium driver
Connectors: 2 x NL4, 4 poles connectors (1+/1- IDS108 / 2+/2- Through)
Rigging points: 2x M10 Threaded inserts + 2 x M6 threaded inserts
Construction: Baltic Birch Plywood
Finish: Black or White structural paint
Front Finish: Magnelis® front grill with back mesh
Operating temperature range: 0°C - 40 °C (32° F - 104° F)
Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
Height x Width x Depth: 305mm x 307mm x 305mm (12.0” x 12.1” x 12.0”)
Weight: Net: 8 kg / 17.6 lbs
System Operation:
- Recommended powering solution: DTDcontroller + DTDAMP4x0.7 : up to 2 x IDS108 per channel
- Optional powering solution:
  - DTDcontroller + DTDAMP4x1.3 : up to 2 x IDS108 per channel
  - NXAMP4x1mk2 Powered TDcontroller: up to 3 x IDS108 per channel
  - NXAMP4x2mk2 Powered TDcontroller: up to 4 x IDS108 per channel
  - NXAMP4x4mk2 Powered TDcontroller: up to 4 x IDS108 per channel
