JCR High-Performance Passive Studio Reamper

« return to previous page

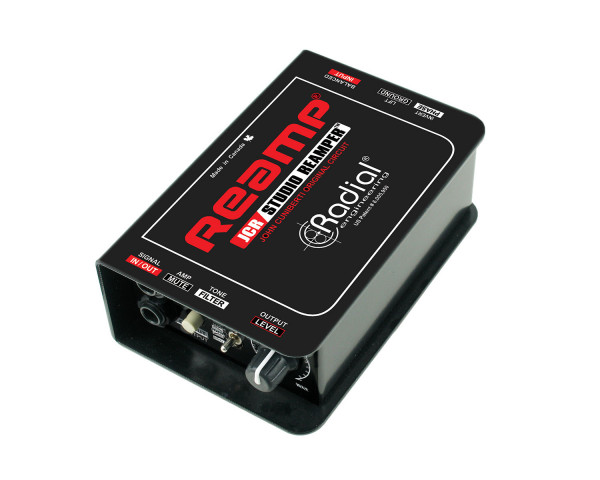

Radial JCR High-Performance Passive Studio Reamper  - Main Image
Radial JCR High-Performance Passive Studio Reamper  - Image 1
Radial JCR High-Performance Passive Studio Reamper  - Image 2
Radial JCR High-Performance Passive Studio Reamper  - Image 3
Radial JCR High-Performance Passive Studio Reamper  - Image 4
Price:
RRP: £290.75 inc VAT
Code:
RADJCR
Manufacturer Code:
R800-1030-00
Brand:
Radial

Quantity required:

Main Features

  • 100% passive design, does not require local power
  • Variable level control to match signals
  • Transformer isolation to eliminate ground loops
  • Handy filter to tame excessive highs or reduce lows
  • Improves tracks as the recording progresses
  • Phase switch lets you invert the polarity
Share:

JCR High-Performance Passive Studio Reamper

The Reamp® JCR is a high-performance passive Reamper that gives you the ability to take a pre-recorded track and send it through a guitar amp or pedal chain, allowing you to explore new sonic textures and experiment with microphone placement, amp and pedal settings without limit. The JCR utilizes the original Reamp circuit designed by recording industry legend John Cuniberti, providing exceptional audio quality that preserves every detail of the original recording while optimizing it to feed amplifiers and effects pedals.

The Radial Reamp JCR is the latest version of the original Reamp that was designed and patented by John Cuniberti. It features a 100% passive design with John's original custom wound 'Made in the USA' transformer and circuit. The latest Radial version features separate XLR and ¼" TRS input connectors, variable output level plus a three-position filter that lets you tame excessive highs, warm up the lows or simply bypass if you want to revert to the original circuit. An on-board mute function has also been added to allow you to shut off the signal going to the amps when making adjustments or moving mics around the studio.

Product Features

  • 100% passive design, does not require local power
  • Variable level control to match signals
  • Transformer isolation to eliminate ground loops
  • Handy filter to tame excessive highs or reduce lows

Applications

  • Lets you re-amplify guitar and bass tracks
  • Used to replace poorly recorded live tracks
  • Works equally well on pedals or amplifiers
  • Used to add extra character on vocals or keys

Cool Stuff

  • Improves tracks as the recording progresses
  • Retains the original design by John Cuniberti
  • Phase switch lets you invert the polarity
  • Plug and play easy to use

Product Specifications

  • Audio circuit type:  Passive, transformer isolated
  • Frequency response:  20Hz ~ 20kHz (+0dB/-1dB)
  • Dynamic range:  140dB
  • Total harmonic distortion:  0.001% @ 1kHz/0dBu input
  • Intermodulation Distortion:  0.0025% @ 1kHz/-10dB input
  • Phase Deviation:  2º @ 100Hz; 0º @ 800Hz
  • Input Impedance:  1800 Ohms
  • Output Impedance:  4.8k Ohms
  • Common Mode Rejection Ratio:  -55dB @ 55Hz
  • Noise:  -115dBu
  • Maximum Input:  +26dBu
  • Input Connectors:  1/4" TRS, XLR
  • Output Connectors:  1/4" unbalanced
  • Construction:  14-gauge steel chassis & outer shell
  • Size (L x W x D):  3.3" x 5.0" x 2" (84 x 127 x 48mm)
  • Weight:  1.32lb (600g)
  • Shipping size (L x W x D):  4" x 3" x 6.5" (102 x 76 x 165mm)
  • Shipping weight:  1.85lb (840g)
  • Power:  Passive, no power required
  • Conditions:  For use in dry locations only between 5°C and 40°C
  • Warranty:  Radial 3-year, transferable
