Jolt Panel FXIP Strobe Fixture 800x RGB + 48x CW SMD LEDs IP65

« return to previous page

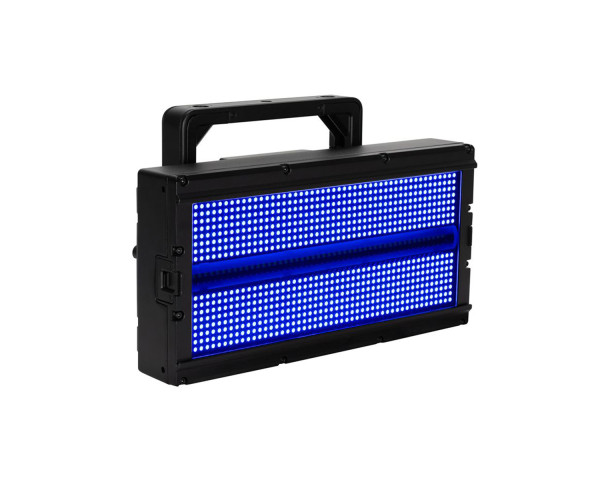

ADJ Jolt Panel FXIP Strobe Fixture 800x RGB + 48x CW SMD LEDs IP65 - Main Image
ADJ Jolt Panel FXIP Strobe Fixture 800x RGB + 48x CW SMD LEDs IP65 - Image 1
ADJ Jolt Panel FXIP Strobe Fixture 800x RGB + 48x CW SMD LEDs IP65 - Image 2
ADJ Jolt Panel FXIP Strobe Fixture 800x RGB + 48x CW SMD LEDs IP65 - Image 3
ADJ Jolt Panel FXIP Strobe Fixture 800x RGB + 48x CW SMD LEDs IP65 - Image 4
ADJ Jolt Panel FXIP Strobe Fixture 800x RGB + 48x CW SMD LEDs IP65 - Image 5
ADJ Jolt Panel FXIP Strobe Fixture 800x RGB + 48x CW SMD LEDs IP65 - Image 6
ADJ Jolt Panel FXIP Strobe Fixture 800x RGB + 48x CW SMD LEDs IP65 - Image 7
Price:
RRP: £1,078.80 inc VAT
Code:
ADJ1226200074
Manufacturer Code:
1226200074
Brand:
ADJ

Quantity required:

Main Features

  • 40 x RGB LED Zones
  • 6 x Cool White LED Zones
  • 25 Built-in RGB LED Program Macros
  • 9 Built-in Cool White LED Program Macros
  • Aria X2 Wireless DMX Built-in
  • IP65-Rated for temporary outdoor and indoor use
Share:

Jolt Panel FXIP Strobe Fixture 800x RGB + 48x CW SMD LEDs IP65

The IP65-Rated Jolt Panel FXIP is an extremely bright and versatile fixture ideal for concert tours, one-off event production and permanent nightclub installations. It features a central strip of 48 x 5-Watt cool white SMD LEDs, surrounded on both sides by a total of 800 x 0.5-Watt RGB SMD LEDs. The Jolt Panel FXIP provides lighting designers with the creative potential of generating strikingly bright white strobe flashes, vibrant colour washes, and animated ‘eye candy’ chase effects from the same compact fixture which can be used inside or outdoors in any weather.

The Jolt Panel FXIP offers users an easy way to navigate the built-in features from an LCD display with a 4-button menu system. The display allows users to change dimming modes, dimming speed, programs, colour macros, LED refresh rate and gamma settings, as well as setting the DMX address and channel modes. The rear panel has conveniently located IP65-rated 5-pin DMX in/out connections along with IP65 locking power in/out sockets to daisy chain power. There are also holes to connect an omega bracket to the Jolt Panel FXIP as an alternative to its variable angle bracket.

Product Features

  • 40 x RGB LED Zones
  • 6 x Cool White LED Zones
  • 25 Built-in RGB LED Program Macros
  • 9 Built-in Cool White LED Program Macros
  • IP65-Rated for temporary outdoor and indoor use
  • Aria X2 Wireless DMX Built-in
  • Channel for Light Shaping Filters (to Blur Pixel Dots)
  • Built-in Holes to Connect an Omega Bracket (sold separately)

Product Specifications

Light Source

  • 800 x 0.5-Watt RGB SMD LEDs + 48 x 5-Watt Cool White SMD LEDs
  • 73° Beam Angle
  • 111° Field Angle
  • RGB LED Specs: Red: 620-630nm; Green: 515-530nm; Blue: 460-470nm
  • White LEDs CCT: Typical 7400K (Min 6900 - Max 8000), 472nm
  • CRI: 69.4
  • 50,000 Hour Average LED Life

Control

  • Control Protocol: DMX, Aria X2 and RDM
  • 14 DMX Modes: 6, 9, 13, 18, 20, 36, 41, 43, 51, 81, 83, 126, 141 and 143 channel modes
  • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)
  • 0-100% Smooth Dimming
  • Strobe: Ramp Up / Down, Lighting and Random
  • Max Strobe Rate 20Hz. Min Strobe Rate: 1Hz.
  • Selectable LED Refresh Rate: 900Hz - 25kHz
  • With Wired Digital Communication Network
  • Display: OLED display with 4-button touch menu

Connections

  • Data: IP65 Locking 5-pin DMX In/Out
  • Power: IP65 Locking Power In/Out

Electrical

  • 100-240V 50Hz/60Hz (Auto Sensing)
  • Max Power Consumption: 214W @120V; 208W @230V
  • Max Power Link: 6pcs @120V; 12pcs @230V
  • Fuse Protected: T5A/250V Glass Fuse (5*20MM)

Dimensions / Weight

  • Length:  6.06" (153.8mm)
  • Width:  16.42” (417mm)
  • Height:  10.38” (263.5mm)
  • Weight:  13.67 lbs. (6.2kg)

Approvals and Ratings

  • CE
  • cETLus Approved (Control # 4010765)
  • IP65

What's in the Box?

  • 1x IP65 locking power cable
  • Diffusion filter
