Jolt Bar FXIP Strobe Fixture 448x RGB SMD + 112x CW SMD LEDs IP65

« return to previous page

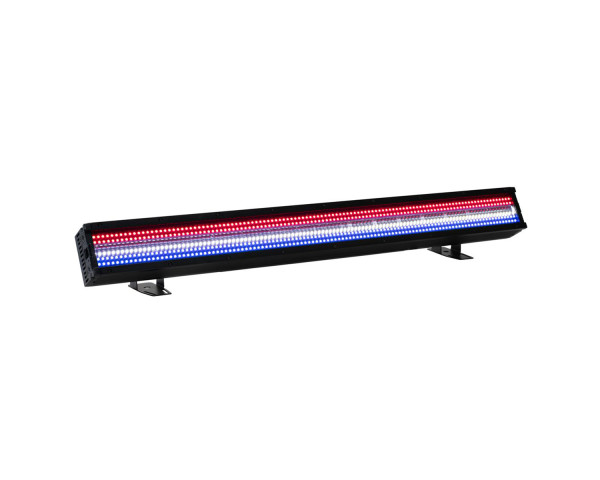

ADJ Jolt Bar FXIP Strobe Fixture 448x RGB SMD + 112x CW SMD LEDs IP65 - Main Image
ADJ Jolt Bar FXIP Strobe Fixture 448x RGB SMD + 112x CW SMD LEDs IP65 - Image 1
ADJ Jolt Bar FXIP Strobe Fixture 448x RGB SMD + 112x CW SMD LEDs IP65 - Image 2
ADJ Jolt Bar FXIP Strobe Fixture 448x RGB SMD + 112x CW SMD LEDs IP65 - Image 3
ADJ Jolt Bar FXIP Strobe Fixture 448x RGB SMD + 112x CW SMD LEDs IP65 - Image 4
ADJ Jolt Bar FXIP Strobe Fixture 448x RGB SMD + 112x CW SMD LEDs IP65 - Image 5
ADJ Jolt Bar FXIP Strobe Fixture 448x RGB SMD + 112x CW SMD LEDs IP65 - Image 6
ADJ Jolt Bar FXIP Strobe Fixture 448x RGB SMD + 112x CW SMD LEDs IP65 - Image 7
ADJ Jolt Bar FXIP Strobe Fixture 448x RGB SMD + 112x CW SMD LEDs IP65 - Image 8
ADJ Jolt Bar FXIP Strobe Fixture 448x RGB SMD + 112x CW SMD LEDs IP65 - Image 9
ADJ Jolt Bar FXIP Strobe Fixture 448x RGB SMD + 112x CW SMD LEDs IP65 - Image 10
ADJ Jolt Bar FXIP Strobe Fixture 448x RGB SMD + 112x CW SMD LEDs IP65 - Image 11
Price:
RRP: £942.00 inc VAT
Code:
ADJ1226200073
Manufacturer Code:
1226200073
Brand:
ADJ

Quantity required:

Main Features

  • 32 x RGB LED Zones
  • 16 x Cool White LED Zones
  • 67 Built-In Color Temperature Presets (2300K-8900K)
  • 25 Built-in RGB LED Program Macros
  • 9 Built-in Cool White LED Program Macros
  • 180 degree mounting bracket system
Share:

Jolt Bar FXIP Strobe Fixture 448x RGB SMD + 112x CW SMD LEDs IP65

The Jolt Bar FXIP is an IP65-rated professional linear LED fixture that delivers Lighting Designers huge output as well as the creative potential of brilliant bright white strobe/blinder LEDs combined with multi-coloured chase effects in one versatile unit. It is a highly flexible fixture that can be used to create a wide variety of effects ideal for concert productions, festival stages and other largescale events.

Building on the success of the original Jolt Bar FX, the Jolt Bar FXIP features upgrades that will help Lighting Designers add a new level of creativity to their lightshows. The fixture is IP65-rated for temporary use outdoors as well as indoor use. ADJ’s proprietary Aria X2 wireless DMX is built-in to each fixture (also compatible with ADJ’s WiFLY EXR wireless DMX), which allows data distribution to occur wirelessly. The fixture is supplied with a frost lens assembly that easily attaches to the front of the unit to change its look and output. The frost blurs the pixel dots, providing designers another creative way to change the effect from project to project. And, each fixture is also supplied with a connecting plate that allows multiple units to be joined together seamlessly.

Product Features

  • 32 x RGB LED Zones (112, 127 and 129CH Modes)
  • 16 x Cool White LED Zones (64, 78, 80, 112, 127 and 129CH Modes)
  • 67 Built-In Color Temperature Presets (2300K-8900K)
  • 25 Built-in RGB LED Program Macros
  • 9 Built-in Cool White LED Program Macros
  • 180 degree mounting bracket system
  • IP65-rated (for temporary outdoor use)
  • Integrated Aria X2 Management Suite
  • Includes Frost Lens Filter
  • Includes Alignment Bracket to attached units together side by side

Product Specifications

Light Source

  • 448 x 0.5-Watt RGB SMD LEDs + 112 x 5-Watt Cool White SMD LEDs
  • 76.6° Beam Angle (Full On) (See Full Photometric Reports in Downloads Section)
  • 92° Field Angle (Full On) (See Full Photometric Reports in Downloads Section)
  • RGB LEDs: Red: 620-630nm; Green: 515-530nm; Blue: 460-470nm
  • White LEDs CCT: Typical 7400K (Min 6900 - Max 8000), 472nm
  • CRI: 86
  • 50,000 Hour Average LED Life

Control

  • Control Protocols: DMX, Aria X2 and RDM
  • 17 DMX Channel Modes: 6, 9, 13, 16, 18, 20, 32, 34, 38, 43, 45, 64, 78, 80, 112, 127 and 129 channel modes
  • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)
  • 0-100% Smooth Dimming
  • Strobe: Ramp Up / Down, Lighting and Random
  • Max Strobe Rate 25Hz; Min Strobe Rate: 0.35Hz
  • Selectable LED Refresh Rate: 900Hz - 25kHz
  • With Wired Digital Communication Network
  • Display: OLED display with 4-button touch menu

Connections

  • Data: IP65 Locking 5-pin DMX In/Out
  • Power: IP65 Locking Power In/Out

Electrical

  • 100-240V 50Hz/60Hz (Auto Sensing)
  • Max Power Consumption: 214W @120V; 208W @230V
  • Max Power Link: 6pcs @120V; 12pcs @230V
  • Fuse Protected: T5A/250V Glass Fuse (5*20MM)

Dimensions / Weight

  • Length: 39.4" (1000mm)
  • Width: 3.9” (100mm)
  • Height: 6.1” (154mm)
  • Weight: 19.2 lbs. (8.7kg)

Approvals and Ratings

  • CE
  • cETLus (Control # 4010765)
  • IP65

What's in the Box?

  • 1 x IP65 Locking Power Cable
  • 1 x Frost Filter
  • 2 x Omega Receiver Brackets (Omega Clamps sold separately)
