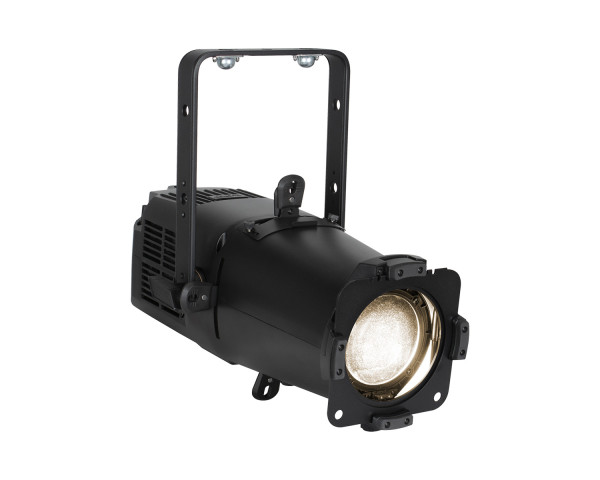

KL Profile Compact Full-Colour LED Ellipsoidal RGBMA 225W

« return to previous page

Price:: RRP: £1,386.00 inc VAT
Code:: ELA0449
Manufacturer Code:: 1236100198
Brand:: Elation

Main Features

225W RGBMA LED Engine
ColourTune Technology Software Integration
5,880 Total Fixture Lumen Output (Sphere)
Stand-Alone Control with Touch Encoder and OLED Display
Smooth 16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate and Fan Speed Adjustment

Designed for precision and performance, the KL PROFILE COMPACT brings unparalleled flexibility to any venue, utilising a compact form factor that delivers exceptional results across diverse applications with vivid colour and outstanding quality.

Its advanced optical engineering, combined with integrated 25–50-degree manual zoom and premium lens coatings, ensures sharp, flawless projections free from colour shifts or aberrations, regardless of the zoom, focus, or framing position.

Powered by Elation's ColourTune Technology and boasting a CRI of 94.9 and TLCI of 95, the fixture achieves superb colour accuracy with 16-bit variable CCT control. Coupled with the ultra-quiet Mute Mode for silent functionality, the KL PROFILE COMPACT redefines precision lighting for theatres, performance venues, and live events, allowing designers to perform brilliantly and broadcast their creative vision.

Product Features

225W RGBMA LED Engine
ColourTune Technology Software Integration
5,880 Total Fixture Lumen Output (Sphere)
Stand-Alone Control with Touch Encoder and OLED Display
Smooth 16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate and Fan Speed Adjustment
Manual Zoom Range from 25° to 50°
RDM (Remote Device Management)
NFC & Aria x2 Wireless Device Management

Product Specifications

Source

225W 6,000K RGBMA LED Engine
30,000 Hour Average LED Life

Photometric Data

Total Lumen Output:
5,880 (Integrating Sphere)
TBA (Goniometer)
CRI: 94.9
TLCI: 95
Zoom Range: 25° – 50°

Effects

Manual Zoom & Focus
4 Manual Framing Shutters
Variable Strobe Rate: 1–20Hz
Dim-to-Warm / Red Shift Emulation
Variable 16-bit Dimming Modes and Curves

Colour

High Brightness and High Fidelity Output Options
RGBMA Colour Array
CMY Emulation
16-bit Fully Variable CCT 2,400K – 8,500K
Green/Magenta Shift
Virtual Gel Swatch Book

Gobos

Accepts 1x Size 'M' Gobo (Metal Gobo Holder Included)

Control / Connections

10 DMX Channel Modes (1, 3, 5, 6, 7, 10, 11, 19, 9, 15)
Manual and DMX Controlled Dimmer and Colour
Single Touch Bar Encoder
4 Button Control Panel, LED Display
RDM (Remote Device Management)
Aria x2 Wireless Device Management
NFC Configuration
IP65 5pin DMX and IP65 Locking Power Cable In/Out

Electrical / Thermal

AC 100-240V – 50/60Hz
290W Max Power Consumption
Power Thru Capacity: 9A (4 units @115V, 10 units @240V)
-15°C to 45°C (5°F to 113°F)
BTU/hr (+/- 10%): 988.9

Size / Weight

Length: 472 mm (18.6”)
Length (Yoke 0°): 536 mm (21.1")
Width: 262 mm (10.3")
Height (Fixture Body): 256 mm (10.1")
Height (Yoke 90°): 394 mm (15.3")
Weight: 7 kg (15.4 lb)
6.25" Front Accessory Slot

What's in the Box?

Gel Frame
Size 'M' Metal Gobo Holder
IP65 Locking Power Cable
