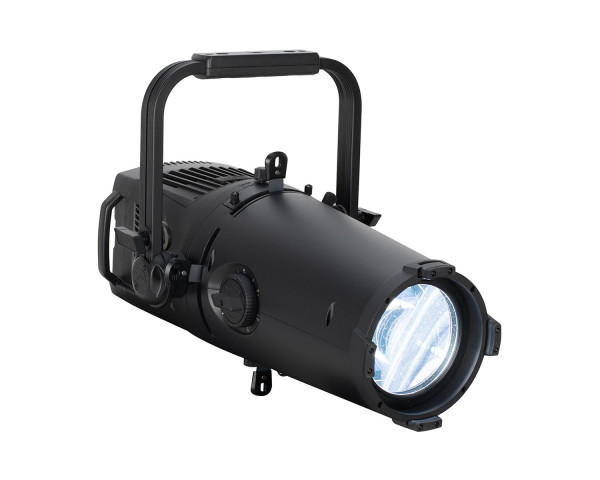

KL Profile FC Full-Colour LED Ellipsoidal RGBMA 305W

« return to previous page

Price:: RRP: £3,204.00 inc VAT
Code:: ELA0163
Manufacturer Code:: 1236100187
Brand:: Elation

Main Features

Compact Zooming Ellipsoidal
Extended Colour RGBMA LED Engine, 93.5 CRI
Exceeding 10.000 lumens
Integrated Rotating Gobo Slot
Full Blackout Manual Framing System
Wide Zoom Range from 6° to 50°

The KL PROFILE FC™ is a manual LED framing fixture designed for a wide array of precision lighting applications. With an integrated manual zoom range of 6 to 50 degrees, the fixture requires no additional lens tubes, reducing cost, complexity, and providing excellent flexibility for any theatre, performance venue, or show. The integrated manual iris allows further beam control.

The 93.5 CRI engine utilises a 5-colour homogenised LED array consisting of Red, Green, Blue, Mint, and Amber sources with a power of 305W. The carefully tuned LEDs ensure accurate colour reproduction while delivering a powerful output of over 10,000 lumens. Virtual colour temperature and Magenta / Green adjustment provide the designer with immediate access to the impressive LED colour array. Exceptionally quiet, the fixture offers enhanced fan controls down to Elation’s Mute Mode, which disables the internal cooling fan.

For ease of use, the fixture contains a 16-bit rotating/indexing gobo slot and is shipped with the KL Profile Designer Gobo Set, containing 10 high-resolution glass gobos. The gobo slot is easily accessible from the top of the fixture. The optional Fresnel Lens Conversion Kit allows the fixture to be used as a framing wash fixture while providing a uniform appearance and fixture spacing.

The KL PROFILE FC is designed for any application where an ellipsoidal or wash fixture with an outstanding and impactful colour range and quality, as well as a flexible zoom range, is required. The fixture’s enhanced optical design and lens coatings ensure precise and razor-sharp projections, removing all unwanted colour shifting and aberrations in all zoom, focus, or framing positions.

Product Features

Compact Zooming Ellipsoidal
Extended Colour RGBMA LED Engine, 93.5 CRI
Exceeding 10.000 lumens
Integrated Rotating Gobo Slot
Full Blackout Manual Framing System
Wide Zoom Range from 6° to 50°
7.5” Front Accessory Holder
Includes 7.5" Gel Frame
Designer Gobo set with 10 high resolution glass gobos
Optional Fresnel Wash Lens Conversion Kit

Product Specifications

Source

305W 6,500K RGBMA LED Engine
30,000 Hour Average LED Life

Photometric Data

10,600 Total Lumen Output
CRI: 93.5
Zoom Range: 6° - 50°
Beam Angle: 5.9° - 45.6°
Field Angle: 6.6° - 50°

Effects

Manual Locking Zoom, Focus
4 Manual Rotating Full Blackout Framing Blades
Manual Barrel Rotation
Integrated Manual Iris
Variable 16-bit Dimming Curves

Colour

RGBMA Colour Array
CMY and RGB Emulation Modes
Virtual Colour Correction 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book

Gobos

1x 16-bit Rotating / Indexing Interchangeable Glass Gobo

Control / Connections

8 DMX Channel Modes (1/5/12/21) CMY (10/17) RGB (10/17)
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
Encoder Control for Standalone Operation
Full Colour 180° Reversible LCD Menu Display
5pin DMX In/Out
IP65 Locking Power In/Out
Elation’s E-FLY™ Internal Wireless DMX Transceiver

Electrical / Thermal

AC 100-240V - 50/60Hz
358W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 1124.1

Size / Weight

Length: 638 mm (25.11")
Width: 390 mm (15.35")
Height (Fixture Body): 279 mm (10.98”)
Height (Yoke 90°): 466 mm (18.35”)
Weight: 15.9 kg / 32.2 lbs
7.5” Front Accessory Slot
