L18 18" Subwoofer with Neodymium Driver 4Ω Black

« return to previous page

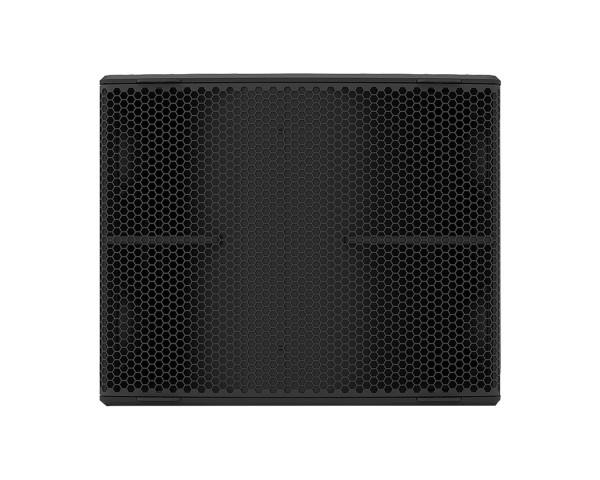

NEXO L18 18 Subwoofer with Neodymium Driver 4Ω Black - Main Image
Price:
RRP: £2,977.30 inc VAT
Code:
NEXL18
Manufacturer Code:
01L..18U
Brand:
NEXO

Quantity required:

Main Features

  • Dedicated partner sub for P15 with matching footprint
  • Extends LF performance to 32Hz
  • 140dB peak SPL
  • Can be deployed in standard and cardioid modes
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Standard fitting M20
Share:

L18 18 Subwoofer with Neodymium Driver 4Ω Black

Measuring 680mm wide x 559mm high x 775mm deep and weighing 50Kg, the L18 sub employs a 18″ long excursion driver in Baltic birch / poplar plywood cabinet with threaded inserts for mounting accessories and an M20 stand fitting. With a frequency range of 32Hz-120Hz, and 140dB Peak SPL, The L18 is specially designed in a footprint to match the P15, making it a perfect partner in flown applications, and for use as a drum fill.

Product Features

  • Dedicated partner sub for P15 with matching footprint
  • Extends LF performance to 32Hz
  • 140dB peak SPL
  • Can be deployed in standard and cardioid modes
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Standard fitting M20

Product Specifications

  • Frequency Response (+6 dB:  32 Hz - 120 Hz
  • Peak SPL Level (1m):  140 dB Peak
  • Recommended Amplifiers:  1550 to 2450 Watts / 4Ω
  • Crossover Frequency:  60 Hz, 85 Hz, 120 Hz
  • Nominal Impedance:  4Ω
  • Components:  1x 18" – 4 ohms – Long excursion – Neodymium driver
  • Connectors:  2x NL4, 4 poles connectors
  • Rigging Points:  1 x Universal accessory fit on each side + 1 x M20 thread for Pole Stand on top
  • Material:  Custom made bent plywood of Baltic birch and poplar
  • Finish:  Black or white structural paint
  • Front Finish:  Steel front grille
  • Weight:  50 kg
  • Height x Width x Depth:  559mm x 680mm x 775 mm (22.0” x 26.8” x 30.5”)
  • Operating Temperature Range:  0°C - 40°C (32°F - 104°F)
  • Storage Temperature Range:  -20°C - 60°C (-4°F - 140°F)
  • System Operation
  • Recommended Powering Solution:  NXAMP4X2MK2: 1 x L18 per channel
  • Optional Powering Solutions:
  • NXAMP4X1MK2 (Bridged): 1 x L18 per channel
  • NXAMP4X4MK2: Up to 2 x L18 per channel
