L15 15" Subwoofer with Neodymium Driver 4Ω Black

« return to previous page

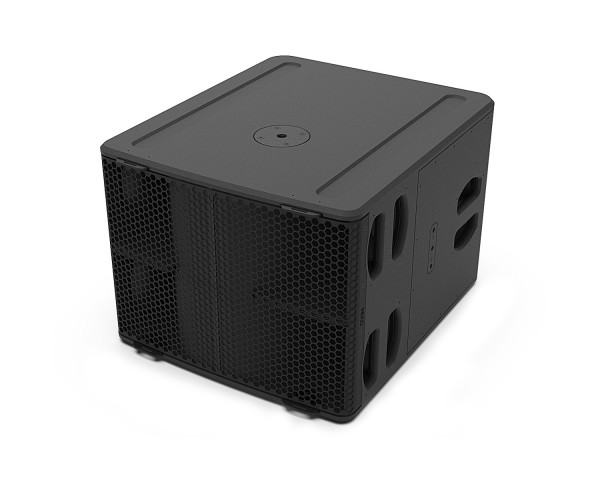

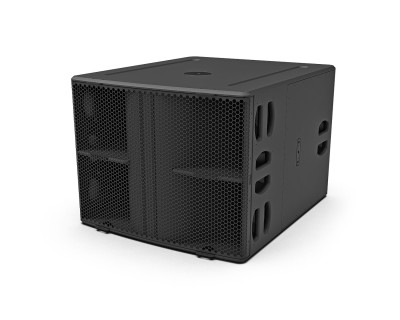

NEXO L15 15 Subwoofer with Neodymium Driver 4Ω Black - Main Image
NEXO L15 15 Subwoofer with Neodymium Driver 4Ω Black - Image 1
NEXO L15 15 Subwoofer with Neodymium Driver 4Ω Black - Image 2
NEXO L15 15 Subwoofer with Neodymium Driver 4Ω Black - Image 3
Price:
RRP: £2,432.44 inc VAT
Code:
NEXL15
Manufacturer Code:
01L..15U
Brand:
NEXO

Quantity required:

Main Features

  • Dedicated partner sub for P12 with matching footprint
  • Extends LF performance to 40Hz
  • 139dB peak SPL
  • 1 x 15" long-excusion Neodymium driver
  • Can be deployed in standard and cardioid modes
  • Threaded inserts on the back and on both sides for connection of mounting accessories
Share:

Nexo P+ series L15

Matching the footprint of the P12, the L15 is the perfect partner sub-bass cabinet for the P+Series cabinets, extending LF performance down to 40Hz in a range of FOH and stage monitoring applications.

Measuring 650mm wide x 430mm high x 550mm deep and weighing 35Kg, the L15 sub employs a 15″ long excursion driver in Baltic birch / poplar plywood cabinet with threaded inserts for mounting accessories and an M20 stand fitting. With a frequency range of 40Hz-120Hz, and 139dB Peak SPL, The L15 is specially designed in a footprint to match the P12, making it a perfect partner in flown applications, and for use as a drum fill.

Also available in white and custom colours, please contact our sales team for more details and to place an order.

Product Features

  • Dedicated partner sub for P12 with matching footprint
  • Extends LF performance to 40Hz
  • 139dB peak SPL
  • 1 x 15" long-excusion Neodymium driver
  • Can be deployed in standard and cardioid modes
  • Threaded inserts on the back and on both sides for connection of mounting accessories
  • Standard fitting M20

Also available in white and custom colours, please contact our sales team for more details and to place an order.

Product Specifications

  • Frequency Response (+6 dB):  40 Hz - 120 Hz
  • Peak SPL Level (1m):  139 dB Peak
  • Operating Voltage:  55Vrms (150Vpeak)
  • Crossover Frequency:  85 Hz - 120 Hz
  • Nominal Impedance:  4Ω
  • Components:  1x 15" – 4 ohms – Long excursion – Neodymium driver
  • Material:  Baltic birch / Poplar plywood
  • Finish:  Black or white structural paint
  • Front Finish:  Steel front grille
  • Fittings:  Handles on both sides. Threaded inserts on both sides for connection of mounting accessories. Stand fitting M20.
  • Connector:  2x NL4, 4 poles connectors
  • Weight:  35 kg
  • Height x Width x Depth:  430mm x 650mm x 550mm (16.9" x 25.5" x 21.6")
