Main Features
Compact, low-profile, curvilinear enclosure
10” LF Neodymium driver and 1.7” diaphragm HF driver in a coaxial configuration
Variable HF directivity
136dB peak SPL
Threaded inserts on the back and on both sides for connection of mounting accessories

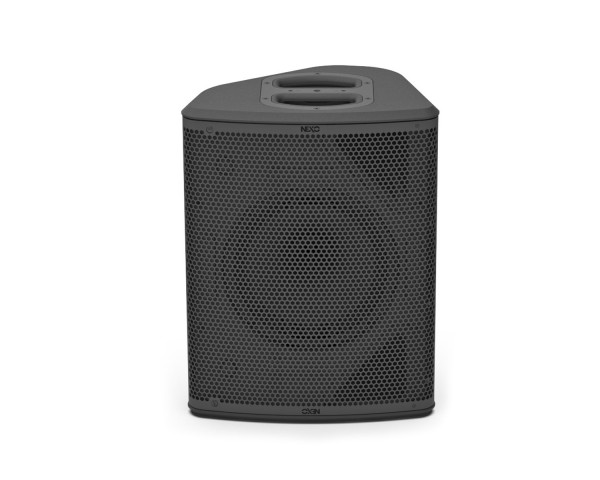

Available in mobile and install versions, the curved, low profile P8, P10 and P12 cabinets can be deployed both vertically or horizontally (as a wedge monitor). Dispersion angles can be changed quickly to match precisely the application, and versatility is further expanded by a comprehensive range of accessories.
Measuring 384mm wide x 497mm high x 274mm deep and weighing 15Kg, the P10 can be deployed in vertical or horizontal (wedge monitor) configurations, with HF directivity set to match the specific application. Speakon connectors are located in the side-mounting handles and the back plate (Touring version only). The Installation version has a 2 core cable for audio input to ensure IP54 protection index. The P10 is passive only.
Also available in white and custom colours, please contact our sales team for more details and to place an order.
Product Features
Compact, low-profile, curvilinear enclosure
10” LF Neodymium driver and 1.7” diaphragm HF driver in a coaxial configuration
Variable HF directivity
136dB peak SPL
Threaded inserts on the back and on both sides for connection of mounting accessories
Stand fitting on both sides
4x NL4, 4 poles connectors; 2 on the back and 1 on both sides
Also available in white and custom colours, please contact our sales team for more details and to place an order.
Product Specifications
Frequency Response (+6 dB): 63 Hz to 20 kHz
Peak SPL Level (1m): 136 dB Peak
Operating Voltage: 50 Vrms (150 Vpeak)
HF Dispersion (according to horn): 100° x 100° (Default) - 110° x 60° (with 110° x 60° optional horn)
Crossover Frequency: 63 Hz, 85 Hz
Nominal Impedance: 8Ω
Components: 1 x Coaxial Neodymium LF 10" 8 Ohms long excursion & HF 1.7" 8 Ohms
Number of ways: 2 ways passive
Connectors (Touring version): 4 x NL4, 4 poles connectors (1 per handle + 2 at the back)
Connectors (Install version): 1 x Cable gland with 2 cores cable
Rigging points: 1 x universal accessory fit on each side + 1 x on the bottom
Material: Custom made bent plywood of baltic birch and poplar
Finish: Black or White structural paint
Front Finish (Touring version): Magnelis® steel front grille + back mesh
Front Finish (Install version): UV resistant acoustic fabric fitted front grill
Height x Width x Depth: 497 mm x 384 mm x 274mm (19.6" x 15.2" x 10.8")
Weight: Net: 15 kg (33 lbs)
Operating temperature range: 0°C - 40 °C (32° F - 104° F)
Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
