Main Features
Install version of L20 sub
Fabric grille cover and quick-connect push connector
Extends LF performance to 28Hz
141dB peak SPL
Threaded inserts on the back and on both sides for connection of mounting accessories

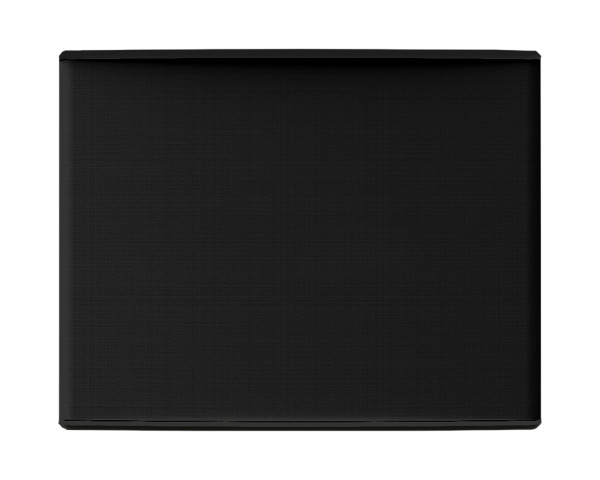

L20-I 20" Install Subwoofer with Neodymium Driver 4Ω Black
Measuring 755mm wide x 594mm high x 905mm deep, the installation version of the L20 sub employs a 20″ long excursion driver in Baltic birch / poplar plywood cabinet with a fabric covered grille and threaded inserts for mounting accessories, and quick-connect push connector. With a frequency range of 28Hz-120Hz, and 141dB Peak SPL, The L20-I is perfect for extending the low frequency response of P+ Series installations.
Product Features
Install version of L20 sub
Fabric grille cover and quick-connect push connector
Extends LF performance to 28Hz
141dB peak SPL
Threaded inserts on the back and on both sides for connection of mounting accessories
Available in black, white and custom RAL colours
Product Specifications
Frequency Response @-6 dB: 28 Hz to 120 Hz
Peak SPL@1m: 141 dB Peak
Operating Voltage: 80 Vrms (180 Vpeak)
Crossover Frequency: 60 Hz, 85 Hz or 120 Hz
Nominal Impedance: 4 Ohms
Components: 1 x Neodymium 20” 4 Ohms long excursion
Connectors: Quick-connect push connector
Rigging points: 1 x universal accessory fit on each side + 1 x M20 thread for Pole Stand on top
Material: Custom made bent plywood of baltic birch and poplar
Finish: Black or White structural paint
Front Finish: Fabric covered front grille
Height x Width x Depth: 594mm x 755mm x 905 mm (23.4” x 29.7” x 35.6”)
Weight: Net: 59 kg (130 lbs)
Operating temperature range: 0°C - 40 °C (32° F - 104° F)
Storage temperature range: -20 °C - 60 °C (-4 ° F - 140° F)
System Operation:
Recommended powering solution: NXAMP4x4mk2 Powered TDcontroller: Up to 2 x L20 per channel
Optional powering solution:
NXAMP4x1mk2 Powered TDcontroller (Bridged): 1 x L20 per channel
NXAMP4x2mk2 Powered TDcontroller (Bridged): 1 x L20 per channel
