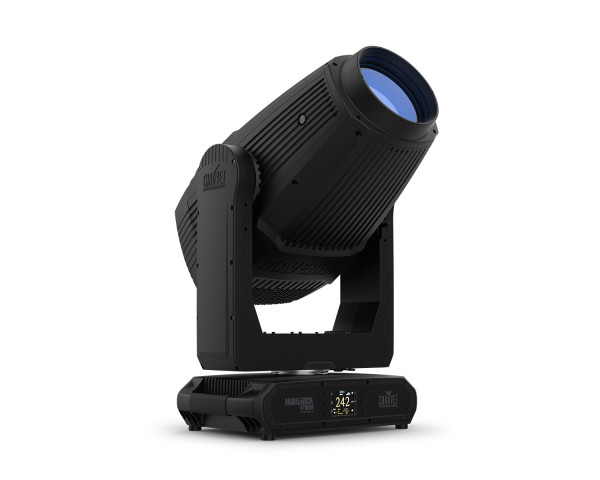

Maverick Storm 4 Profile 1250W LED Engine CMY+CTO Colour Mix IP65

Product Features

• Fully featured, compact and lightweight IP65 1,250 W LED yoke profile fixture including CMY + CTO colour mixing, a 4-blade framing shutter system with rotation, a colour wheel, 10:1 zoom, 2 prisms (5 facet round and linear, 2 rotating gobo wheels, integrated sun shield
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY + CTO colour mixing system to create a wide pallet of colours
• CRI and CTB filters on colour wheel for added flexibility
• Two rotating, indexing and interchangeable slot and lock gobo wheels
• An animation wheel for kinetic textured effects
• DMX, WDMX, sACN, and Art-Net for full flexibility of control options
• RDM control over DMX for fixture reporting
• 5.6° to 56.8° zoom range for variable beam sizes
•  Iris, 5-facet round and linear prisms and 2 frosts (light and medium) for beam control
• True 1 compatible power input
• Integrated sun shield for protecting the optical path from sunlight when the fixture is off
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
• USB slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation

Product Specifications

Optical

• Light Source:  1 LEDs (CW) 1,250 W, (4 A), 7500 K, 50,000 hours life expectancy
• Colour Temperature (at full):  6813 K
• CRI:  69.9
• CRI with CRI Filter:  88.3
• Front Lens Diameter:  188 mm
• Beam Angle:  5.6° to 48°
• Field Angle:  6.6° to 54.4°
• Cutoff Angle 7.1° to 56.8°
• Zoom Range:  5.6° to 56.8°
• Lumens – Source:  94,000
• Lumens – Output:  59,168
• Illuminance (5.6°) 134,034 lux @ 5 m
• Illuminance (54.4°) 4,241 lux @ 5 m
• Selectable PWM:  600 Hz, 1,200 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

• Pan and Tilt:  540°/270°
• Pan and Tilt Ranges:  540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colours:  6 (including CRI and CTB filters) + white, split colours, continuous scroll at variable speeds
• Colours:  CMY flags, CTO flag
• Gobos (1):  6 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2):  6 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Size:  Gobo Wheel 1 (rotating):  30 mm (outside), 25 mm (image), 1.1 mm (max. thickness)
• Gobo Size:  Gobo Wheel 2 (rotating):  30 mm (outside), 25 mm (image), 1.1 mm (max. thickness)
• Framing Shutters:  4 Blades, each with dual axis movement, Full blackout.
• Framing Shutter rotation:  +/- 60° rotation.
• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Zoom:  Motorized
• Focus:  Motorized
• Frost:  Motorized
• Iris:  Motorized
• Prism:  5 Linear Facets, motorized, rotating
• Prism:  5 Circular Facets, motorized, rotating
• Strobe Rate:  0 to 20 Hz
• Move-in-Black:  Yes
• Dim Curves:  4

Connections

• Power Connection:  Seetronic Powerkon IP65
• Power Input/Output:  Seetronic Powerkon IP65
• Data Connectors:  5-pin IP rated XLR, Neutrik IP rated RJ45 Connectors in/out
• Cable Length (power):  5 ft (1.5 m)

Control

• Control Protocol:  Art-Net, DMX, RDM, W-DMX, sACN
• DMX Channels:  38 or 55
• Art-Net Channels:  38 or 55
• Modes/Personalities:  2 personalities (38, 55)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:  1780 W, 15.07 A @ 120 V, 60 Hz
• Power and Current:  1760 W, 7.79 A @ 230 V, 50 Hz

Construction / Physical

• Dimensions:  18.3 x 11.93 x 32.91 in (465 x 303 x 836 mm)
• Weight:  102.5 lb (46.5kg)
• Exterior Colour:  Black
• Housing Material:  Aluminium diecast, High-impact flame retardant polymer, Steel

What's in the Box?

• Maverick Storm 4 Profile
• Seetronic Powerkon IP65 power cord to Bare end
• Omega bracket with mounting hardware
