MAX Connect Wireless Presentation Hub BYOM Solution

« return to previous page

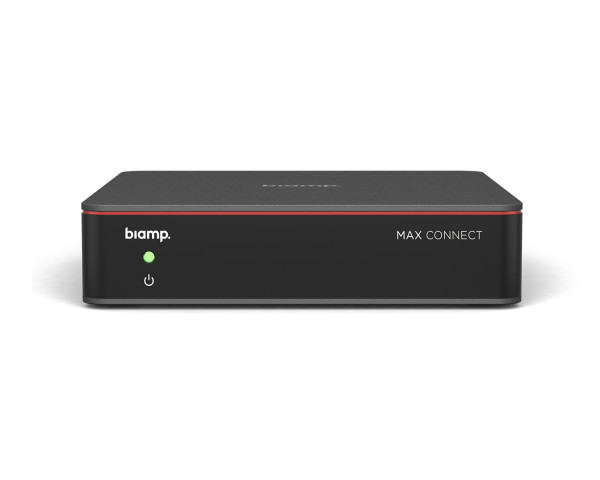

Biamp MAX Connect Wireless Presentation Hub BYOM Solution - Main Image

Biamp MAX Connect Wireless Presentation Hub BYOM Solution - Image 1

Biamp MAX Connect Wireless Presentation Hub BYOM Solution - Image 2

Price:: RRP: £3,000.00 inc VAT
Code:: BIAMAXCONNECT
Manufacturer Code:: 910.1896.900
Brand:: Biamp

Main Features

Use MAX app, browsers, AirPlay, Googlecast, or HDMI cable to share up to six pieces of content
Built-in tools allow users to annotate shared content and virtual whiteboard
Shared content is rebroadcasted to the participants’ devices
Participants can connect and control wirelessly any USB and HDMI room peripheral
Make UC calls from own device
A participant who hosts a UC call can share all the content presented on the room display

Full Description

The MAX Connect is an easy-to-use, yet powerful, BYOM room solution. Now participants can use their own devices to share and interact with content, control room AV equipment, and join UC meetings using their app of choice — including Microsoft Teams and Zoom. With MAX Connect, users have unprecedented control over their collaboration experience, leading to more productive meetings and enhanced engagement, ideation, and decision making.

Features

Product Features

Use MAX app, browsers, AirPlay, Googlecast, or HDMI cable to share up to six pieces of content simultaneously
Built-in tools allow users to annotate shared content and virtual whiteboard
Shared content is rebroadcasted to the participants’ devices
Participants can connect and control wirelessly any USB and HDMI room peripheral
Make UC calls from own device
A participant who hosts a UC call can share all the content presented on the room display with remote participants
Participants can replace the room camera view with their device camera view to frame objects, a physical whiteboard, or themselves during UC call
Manage collaboration sessions, UC calls, through included handheld remote control, the optional Touch 8 MAX control panel, or through touch-enabled AV room display
Connected Biamp AV peripherals (including Vidi 250, Parlé VBC/ABC 2500 and 2500a) can be controlled and, when compatible, optimized using Biamp Launch* — all from MAX Connect interfaces
Monitoring, updating, and configuring of MAX Connect and Biamp connected peripherals are available through Biamp Workplace**
1 x Gigabit ethernet with PoE+
5-year warranty

Technical Specs

Product Specifications

AV ports:
- 1 x HDMI in 2.0
- 1 x HDMI out 2.0
- 2 x USB 2.0 Type-A
- 1 x USB 3.0 Type-C
Network port: 1 x Gigabit ethernet with PoE 30W
Power: External power adaptor 12V, 2A DC
WiFi: WPA2-PSK Authentication
WLAN Standard: 2.4 Ghz 802.11b/g/n–5 Ghz 802.11a/n/ac
Bluetooth handheld remote control:
- Version: 4.2
- Mode: Bluetooth Low Energy
- Frequency band: 2.4Ghz
- Maximum Transmit Power: 2.45dBm
- Wireless range: Up to 30ft (10 m)
User’s device recommended requirements:
- PC: Intel® Core i7 9th gen (equivalent), Windows 10 (20H2) x64 or higher
- Mac: Intel® Core i7 9th gen (equivalent), Apple M1 or higher, Mac OS 12 or higher
- Web browser: Chrome, Edge
- Mobile: iOS® iOS 14 or higher
Overall Dimensions:
- Height: 1 inch (30 mm)
- Width: 5 inches (132 mm)
- Depth: 5 inches (132 mm)
- Weight (unit chassis): 1.2 lbs (0.538 kg)
Power Consumption:
- Standby: 0.3W (12V/110mA)
- Max: 7W (12V/1700mA)
Environmental:
- Temperature Range: 20°–60° C
- Humidity: 10%–90 %
- Noise Level: 40–43dB(Background noise< 18db, 1M,mute room)
Compliance:
- CB, HDMI, BQB, CE, FCC, RCM, REACH,
- RoHS, WEEE, CA65, SVHC233, TSCA
