Touch 8 MAX Control Panel for MAX Connect BYOM Solution

« return to previous page

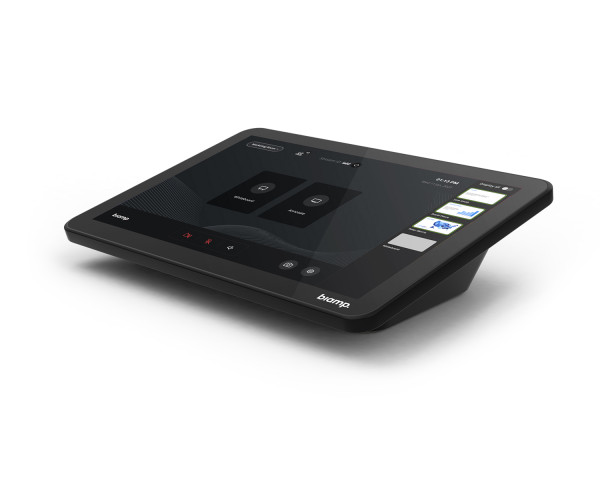

Biamp Touch 8 MAX Control Panel for MAX Connect BYOM Solution - Main Image
Biamp Touch 8 MAX Control Panel for MAX Connect BYOM Solution - Image 1
Biamp Touch 8 MAX Control Panel for MAX Connect BYOM Solution - Image 2
Price:
RRP: £1,500.00 inc VAT
Code:
BIATOUCH8MAX
Manufacturer Code:
913.1974.900
Brand:
Biamp

Quantity required:

Main Features

  • 8-inch (203 mm) capacitive touch LCD interface
  • Controls room AV peripherals and room display content
  • AV peripherals control and configuration
  • Content sharing moderation
  • Direct annotation on shared content and whiteboard
  • Scratch-resistant glass
Share:

Touch 8 MAX Control Panel for MAX Connect BYOM Solution

The Touch 8 MAX is an 8-inch, PoE-powered touch panel accessory, designed specifically for the MAX Connect BYOM room solution. Using the touch panel, meeting participants can control room peripherals, as well as choose which content to display. Participants can also annotate on shared content and use the digital whiteboard — directly from the touch panel. PIR sensors conveniently turn the touch panel screen on automatically when a user approaches.

Product Features

  • 8-inch (203 mm) capacitive touch LCD interface
  • Controls room AV peripherals and room display content
  • AV peripherals control and configuration
  • Content sharing moderation
  • Direct annotation on shared content and whiteboard
  • Scratch-resistant glass
  • Screen turns on automatically as someone approaches
  • PoE powered (IEEE 802.3at Class 3, 15W) for simple, single CAT5e/CAT6 cable installation
  • 5-year warranty

Product Specifications

  • Display Type:
    • High-Contrast Capacitive
    • Touch LCD
  • Display Size:  8” (203 mm) diagonal
  • Display Resolution:  1280x800
  • Maximum Display Brightness:  350 nits
  • Network Connection:
    • RJ-45 with Ethernet cable
    • (Cat 5e and above)
  • Sensors:  Proximity
  • Power:  PoE (IEEE 802.3at Class 3, 15W)
  • Overall Dimensions:
    • Height:  5.1 inches (130 mm)
    • Width:  7.7 inches (196 mm)
    • Depth:  1.5 inches (38 mm)
    • Weight:  1.0 lb (0.45 kg)
  • Environmental:
    • Operating Temperature:  32–104° F (0–40° C)
    • Relative Humidity:   10-90% (non-condensing)
    • Altitude:  0-6,600 ft (0-2000m) MSL
    • Compliance:
      • CE marked (Europe)
      • RoHS Directive (Europe)
