ML1K Counter Hearing Loop Kit (ML1 Amp, AMT Mic, TX2 Loop)

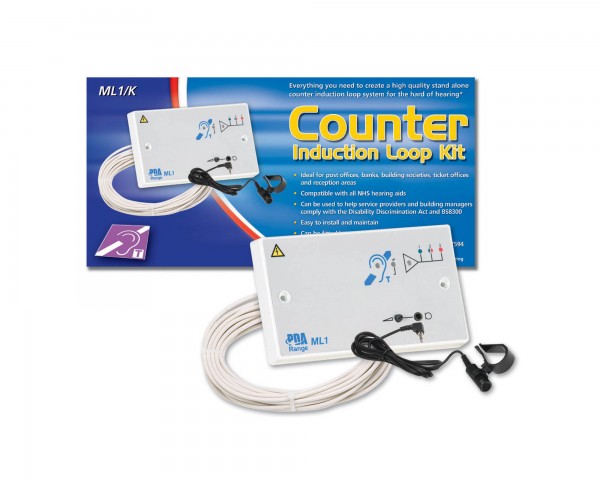

SigNET ML1K Counter Hearing Loop Kit (ML1 Amp, AMT Mic, TX2 Loop) - Main Image

SigNET ML1K Counter Hearing Loop Kit (ML1 Amp, AMT Mic, TX2 Loop) - Image 1

SigNET ML1K Counter Hearing Loop Kit (ML1 Amp, AMT Mic, TX2 Loop) - Image 2

Price:: RRP: £120.53 inc VAT
Code:: SIGML1K
Manufacturer Code:: ML1/K
Brand:: SigNET

Main Features

Requires no specialist audio experience or connectors - can be fitted by any competent electrician
Space-saving double-gang wall-mounting amplifier fits standard UK 25mm back boxes (requires fixed mains wiring)
Omni-directional AMT microphone (supplied) plugs directly into 3.5mm socket on the amplifier's front
Line/outreach socket also provided (max 3 outreach plates per system)
User-adjustable mic. sensitivity and engineer-adjustable loop drive and input level controls
This kit includes the TX2 counter loop

ML1K Counter Hearing Loop Amplifier with TX2 Counter Loop

The ML1 is a compact audio-frequency induction loop amplifier capable of generating a loop listening field of approximately 1.2m2 if used with the TX2 counter loop (supplied in the MK1/K kit), making it ideal for restricted person to person contact in areas such as banks, post offices, ticket counters, etc.

Designed to fit on a standard UK 25mm double gang back box, it has a self-contained mains power supply, a microphone input, a balanced line level input and a selection of indicators and controls, as detailed inside this manual.

The amplifier is available either on its own or as part of the ML1/K counter loop kit which comprises a microphone and pre-formed counter loop - the basic components required to create a counter loop system suitable for use in most applications.

In addition to being used as part of a counter loop system, the ML1 is capable of covering rooms up to 20m2 (approx. 4.4 x 4.4 metres) using a loop made from standard four core burglar alarm cable wired as four turns.

Product Features

Ideal for banks, post offices, small meeting rooms, reception desks, ticket booths and any other application requiring restricted or small area coverage
Requires no specialist audio experience or connectors – can be fitted by any competent electrician
Space-saving double-gang wall-mounting amplifier fits standard UK 25mm back boxes (requires fixed mains wiring)
Omni-directional AMT microphone (supplied) plugs directly into 3.5mm socket on the amplifier’s front
Line/outreach socket also provided (max 3 outreach plates per system)
User-adjustable mic. sensitivity and engineer-adjustable loop drive and input level controls
Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed
ML1K kit Comes with TX2 Counter Loop

Product Specifications

General

Induction Loop Type: Wall mounting (requires fixed mains wiring and a 25mm back box)
Coverage: 1.2m2 approx.
Inputs: 1 x 3.5mm remote mic. socket; 1 x Line/Outreach socket (max. 3 Outreach plates per ML1)
Indicators: Input level; power on; loop drive meter.
Controls: Mic. input level, line input level; loop drive
Kit content: ML1 amplifier; AMT microphone; TX2 pre-formed counter loop; ‘AFILS fitted’ sticker.
