PDA103R Small Room Ceiling Loop Kit (Amp, APM Mic, 40m Loop)

« return to previous page

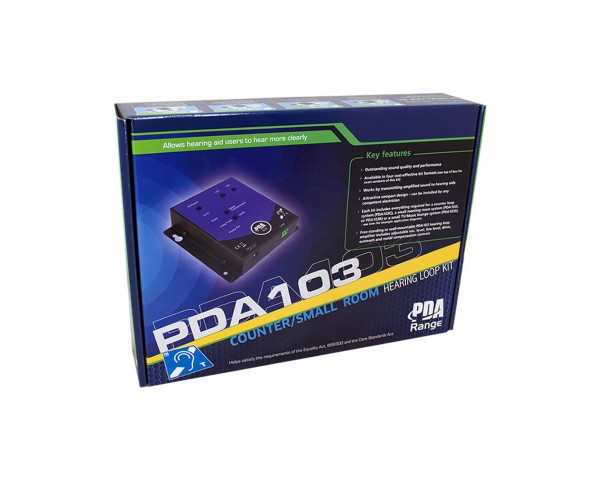

SigNET PDA103R Small Room Ceiling Loop Kit (Amp, APM Mic, 40m Loop) - Main Image

SigNET PDA103R Small Room Ceiling Loop Kit (Amp, APM Mic, 40m Loop) - Image 1

SigNET PDA103R Small Room Ceiling Loop Kit (Amp, APM Mic, 40m Loop) - Image 2

SigNET PDA103R Small Room Ceiling Loop Kit (Amp, APM Mic, 40m Loop) - Image 3

Price:: RRP: £207.82 inc VAT
Code:: SIGPDA103R
Manufacturer Code:: PDA103R
Brand:: SigNET

Main Features

PDA103R kit is ideal for small room applications where equipment needs be mounted above suspended ceilings, etc.
PDA103 amplifier includes a 3.5mm microphone input, a line level input and an 'outreach' socket
Metal compensation control helps improve intelligibility in rooms with high metal content
Adjustable mic, line level and 'outreach' controls.
Drive (level) control allows the amplifier's output stage to be set-up to suit the exact characteristics of the application.
Limit, Peak, Loop Fault and Power On indicators

Full Description

PDA103R Small Room Omni Loop Kit

The PDA103 is a true current mode, hearing loop amplifier. It may be surface-mounted and is designed to cover ticket counters up to 1.2m2 (PDA103C kit version), or rooms up to 50m2 (PDA103R/L/S kit versions). See installation manual and specifications for more information.

Features

Product Features

Each kit contains everything you need to create a high quality hearing loop system for a room up to 50m2 (7m x 7m)
PDA103R kit is ideal for small room applications where equipment needs be mounted above suspended ceilings, etc.
PDA103 amplifier includes a 3.5mm microphone input, a line level input and an 'outreach' socket
Metal compensation control helps improve intelligibility in rooms with high metal content
Adjustable mic, line level and 'outreach' controls.
Drive (level) control allows the amplifier's output stage to be set-up to suit the exact characteristics of the application.
State-of-the-art audio processor features an automatic gain control which compensates for poor microphone techniques and helps suppress loud noises, hisses and clicks
Limit, Peak, Loop Fault and Power On indicators
Designed to be wall-mounted using the keyholes provided
Meets and exceeds the requirements of BS7594 and EN60118-4 when correctly installed

Technical Specs

Product Specifications

General

Rated supply voltage: 110 to 240Va.c. @ 50/60Hz
Rated power consumption: 18W PSU
Maximum RMS output current: 4A @ 1kHz
Maximum RMS load voltage: 5.5V
PDA103C approx. coverage area using the TX2 pre-formed loop: 1.2m2
PDA103R/L/S approx. coverage area using 0.5mm2 loop cable: 50m2, i.e. rooms up to approx. 7m x 7m
Recommended number of turns: Single turn
Recommended loop conductor size: 0.5mm2 @ < 50m loop length
Frequency response -3dB: 120Hz to 5kHz as per BS EN 60118-4
Input signal level: Mic: -60dB unbalanced; Line: -27dB stereo unbalanced; Outreach: -10dB balanced.
Input impedance: Mic: 1k ohm; Line: 100k ohm; Outreach: 20k ohm.
Microphone phantom power: 12Vd.c.
Signal to noise ratio, A weighted: -62dB
Optical TOS-link receiver (PDA103S kit only): Up to 24 bit, 96kHz sampling
AGC range (3dB change in output current), reference rated I/P voltage: 10dB
AGC ratio: 20:1
Amplifier mode: True current mode
Sensitivity level controls: Mic, Line, Digital (PDA103S kit only), Outreach, Metal Compensation, Level (all rotary pot controls are screwdriver adjustable).
LED indicators: Limit (Red), Peak (Red), Loop Fault (Red), Power On (Green).
Connectors:
Mic (3.5mm mono jack socket);
Line (3.5mm stereo jack socket);
Digital (PDA103S kit only);
Outreach (4- way pluggable screw terminal);
DC in; Loop (2-way pluggable screw terminal)
