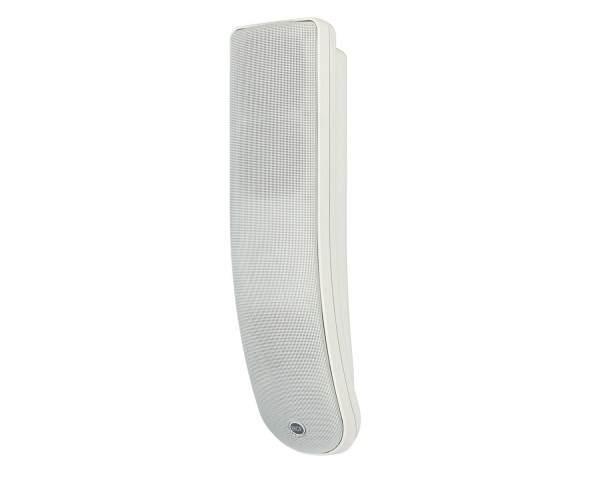

MQ100L-W 2x3.5"+2x3.5" 3-Way Column Array Speaker 80W 100V White

« return to previous page
RCF MQ100L-W 2x3.5+2x3.5 3-Way Column Array Speaker 80W 100V White - Main Image
RCF MQ100L-W 2x3.5+2x3.5 3-Way Column Array Speaker 80W 100V White - Image 1
RCF MQ100L-W 2x3.5+2x3.5 3-Way Column Array Speaker 80W 100V White - Image 2
RCF MQ100L-W 2x3.5+2x3.5 3-Way Column Array Speaker 80W 100V White - Image 3
RCF MQ100L-W 2x3.5+2x3.5 3-Way Column Array Speaker 80W 100V White - Image 4
RCF MQ100L-W 2x3.5+2x3.5 3-Way Column Array Speaker 80W 100V White - Image 5
Price:
RRP: £274.80 inc VAT
Code:
RCFMQ100LW
Manufacturer Code:
13000187
Brand:
RCF

Quantity required:

Main Features

  • Two 3.5 inch woofers with rubber surround
  • Two 3.5 inch mid woofers with fabric surround
  • Two 0.75 inch dome tweeters
  • 40/80 watts
  • Built-in 70 / 100V transformer with multiple taps
  • Finish: White
Share:

MQ100L-W 3-Way Column Speaker 100V 40/80W - White

The MQ 100L is a 3-way tone column with an extended frequency response for speech and music. Thanks to the optimized radiation of 180 ° horizontal and 60° vertical, this sound column covers a wide range and thus offers good speech intelligibility in large and acoustically difficult rooms (eg halls). With the included swiveling and tilting wall bracket, the MQ 100L can be installed very close to the wall. The vertical radiation of 60 ° is asymmetric, 40 ° down and 20 ° up. This means that the MQ 100L can be optically installed in most applications. The MQ 100L is equipped with two 3.5 "woofers, two 3.5" midrange speakers and two 0.75 "dome tweeters. The built-in 70 / 100V transformer can be set to different powers (max. as well, it can be switched to 16 ohms. The plastic housing is self-extinguishing gem.

Product Features

  • Two 3.5 "woofers with rubber surround
  • Two 3.5 "mid woofers with fabric surround
  • Two 0.75 "dome tweeters
  • 40/80 watts (RMS / music power)
  • Transmission range 130 Hz ÷ 20 kHz
  • 118 dB (80 W / 1 m) max. SPL
  • Built-in 70 / 100V transformer with multiple taps
  • 16 ohm setting

Product Specifications

Acoustical specifications

  • Frequency Response (-10dB): 130 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 112 dB
  • Horizontal coverage angle: 180°
  • Vertical coverage angle: 60°
  • System Sensitivity: 93 dB

Power section

  • Nominal Impedance (ohm): 16 ohm
  • Power Handling: 80 W RMS
  • Peak Power Handling: 320 W PEAK
  • Recommended Amplifier: 160 W
  • Protections: PTC on tweeter
  • Crossover Frequencies: 2000 Hz

Transducers

  • Dome Tweeter: 2 x 0.75''
  • Midrange: 2 x 3.5''
  • Woofer: 2 x 3.5''

Input/Output

  • section Input connectors: Euroblock
  • Output connectors: Euroblock
  • Constant Voltage Transformer: 100 V
  • Power selection 1: 40 W - 250 ohm
  • Power selection 2: 20 W - 500 ohm
  • Power selection 3: 10 W - 1000 ohm
  • Power selection 4: 5 W - 2000 ohm

Standard compliance

  • CE marking: Yes

Physical specifications

  • Cabinet/Case Material: Plastic
  • Hardware: Wall mount bracket
  • Grille: Steel
  • Colour: White - RAL 9016

Size

  • Height: 500 mm / 19.69 inches
  • Width: 120 mm / 4.72 inches
  • Depth: 167 mm / 6.57 inches
  • Weight: 2.73 kg / 6.02 lbs

Shipping information

  • Package Height: 550 mm / 21.65 inches
  • Package Width: 180 mm / 7.09 inches
  • Package Depth: 180 mm / 7.09 inches
  • Package Weight: 4.8 kg / 10.58 lbs
