MQ 50C 5" 2-Way Ceiling Speaker 100V/16Ω 60W White

« return to previous page

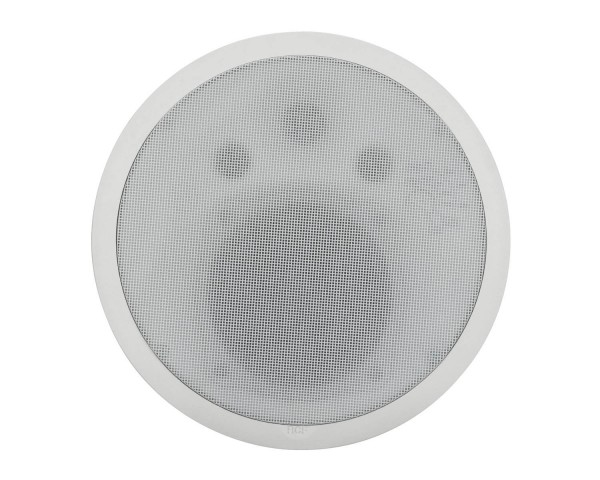

RCF MQ 50C 5 2-Way Ceiling Speaker 100V/16Ω 60W White - Main Image
RCF MQ 50C 5 2-Way Ceiling Speaker 100V/16Ω 60W White - Image 1
RCF MQ 50C 5 2-Way Ceiling Speaker 100V/16Ω 60W White - Image 2
RCF MQ 50C 5 2-Way Ceiling Speaker 100V/16Ω 60W White - Image 3
RCF MQ 50C 5 2-Way Ceiling Speaker 100V/16Ω 60W White - Image 4
RCF MQ 50C 5 2-Way Ceiling Speaker 100V/16Ω 60W White - Image 5
RCF MQ 50C 5 2-Way Ceiling Speaker 100V/16Ω 60W White - Image 6
Price:
RRP: £183.60 inc VAT
Code:
RCFMQ50CW
Manufacturer Code:
13000081
Brand:
RCF

Quantity required:

Main Features

  • 5" woofer with 1" dome tweeter
  • Power selectable (100 V): 30 W – 20 W – 10 W – 5 W
  • 91 dB sensitivity
  • Colour: white RAL 9016
  • Self-extinguishing plastic frame and back can, steel grille
  • In/out euroblock connectors
Share:

MQ50C 5" 2-Way Ceiling Speaker 100V/16ohm 60W - White

Compact design, light weight and limited depth makes the MQ 50C a 2-way ceiling speakers ideal for use in any background and foreground music system where a good sound is required. The woofer is a high-excursion, PP coated paper cone with rubber surround design mounted in a tuned enclosure. The fabric dome tweeter is loaded on a constant Q wave guide to provide natural and smooth sound reproduction on a wide dispersion angle. Installation of MQ 50C is fast and efficient thanks to the built-in rotating hooks. No additional brackets or rings or other supports are required: thanks to its lightweight construction the speaker can be mounted as a conventional ceiling speakers. Connections are made on four poles Euroblock connector. Power value can be selected with a rotary switch, accessible behind the grill.

Product Features

  • 5" woofer with 1" dome tweeter
  • Power selectable (100 V): 30 W – 20 W – 10 W – 5 W
  • 91 dB sensitivity
  • Colour: white RAL 9016 and black RAL 9005
  • Self-extinguishing plastic frame and back can, steel grille
  • In/out euroblock connectors

Product Specifications

Acoustical specifications

  • Frequency Response (-10dB): 70 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 112 dB
  • Coverage angle: 120°
  • System Sensitivity: 91 dB

Power section

  • Nominal Impedance (ohm): 16 ohm
  • Power Handling: 60 W RMS
  • Peak Power Handling: 240 W PEAK
  • Recommended Amplifier: 120 W
  • Crossover Frequencies: 3000 Hz

Transducers

  • Dome Tweeter: 1.0'' neo
  • Woofer: 5.0'' neo

Input/Output section

  • Input connectors: Euroblock
  • Output connectors: Euroblock
  • Constant Voltage Transformer: 100 V
  • Power selection 1: 30 W - 333 ohm
  • Power selection 2: 20 W - 500 ohm
  • Power selection 3: 10 W - 1000 ohm
  • Power selection 4: 5 W - 2000 ohm

Standard compliance

  • CE marking: Yes

Physical specifications

  • Cabinet/Case Material: Plastic
  • Grille: Steel
  • Colour: White - RAL 9016

Size

  • Depth: 156 mm / 6.14 inches
  • Diameter: 266 mm / 10.47 inches
  • Weight: 2.1 kg / 4.63 lbs

Shipping information

  • Package Height: 235 mm / 9.25 inches
  • Package Width: 310 mm / 12.2 inches
  • Package Depth: 310 mm / 12.2 inches
  • Package Weight: 2.99 kg / 6.59 lbs

Product Downloads
