MT200 Matching Weather Resistant Transformer for HX5 / HX7

« return to previous page

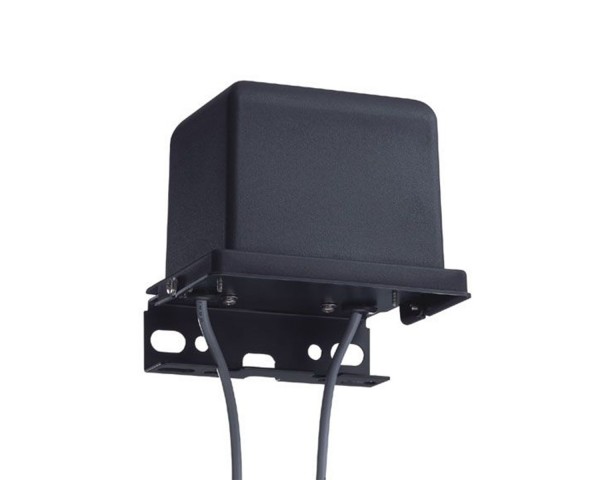

TOA MT200 Matching Weather Resistant Transformer for HX5 / HX7 - Main Image
Price:
RRP: £132.00 inc VAT
Code:
TOAMT200
Manufacturer Code:
MT-200
Brand:
TOA

Quantity required:

Main Features

  • Matching Weather Resistant Transformer
  • Made for HX5 / HX7
  • Rated Input: 200 W
  • Primary Impedance (100 V line): 50 Ω (200 W), 83 Ω (120 W), 167 Ω (60 W)
  • Secondary Impedance:  8 Ω
  • Material: Polypropylene
Share:

MT200 Matching Weather Resistant Transformer for HX5 / HX7

The MT-200 is a matching transformer for the HX-5 series and HX-7 series speaker systems and can be used both indoors and outdoors.

Product Features

  • Matching Weather Resistant Transformer
  • Made for HX5 / HX7

Product Specifications

  • Rated Input:  200 W
  • Primary Impedance
    • 100 V line: 50 Ω (200 W), 83 Ω (120 W), 167 Ω (60 W)
    • 70 V line: 25 Ω (200 W), 50 Ω (100 W), 83 Ω (60 W), 167 Ω (30 W)
  • Secondary Impedance:  8 Ω
  • Water Protection:  IPX4 (the tilt angle must be within 45°)*
  • Finish
    • Cover: Polypropylene
    • Mounting bracket: Stainless steel (SUS304)
  • Dimensions:  164 (w) x 141 (h) x 129 (d) mm (6.46" x 5.55" x 5.08")
  • Weight:  2.8 kg (6.17 lb
