MTC-300BB12 Square Backcan for Control 300 Series 3cubic ft

« return to previous page

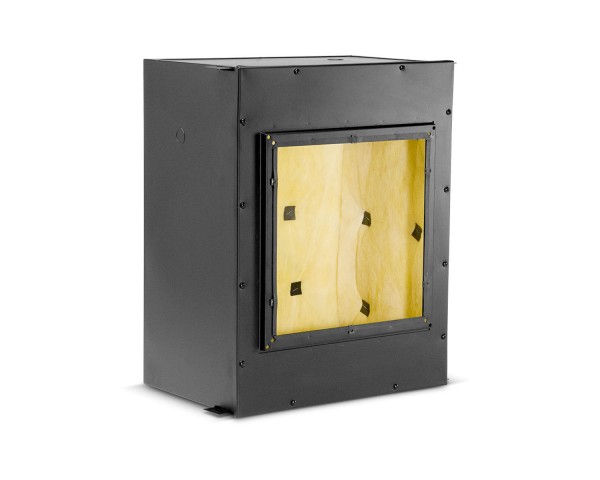

JBL MTC-300BB12 Square Backcan for Control 300 Series 3cubic ft - Main Image
Price:
RRP: £420.00 inc VAT
Code:
JBLMTC300A
Manufacturer Code:
JBL0650
Brand:
JBL

Quantity required:

Main Features

  • Extra-thick 16 gauge metal construction.
  • Lined with 12 mm (½ inch) thick MDF to eliminate resonances and to provide extra bass response.
  • Knockouts on top and all four sides.
  • Dual mounting system for baffle.
  • Mounting platform for an optional high-power 70V/100V transformer.
  • 3 Cubic Ft.
Share:

MTC-300BB12 Square Backcan

3 Cubic Ft. Backbox for Control 300 Series 12 in. Drivers

Product Features

  • Extra-thick 16 gauge metal construction.
  • Lined with 12 mm (½ inch) thick MDF to eliminate resonances and to provide extra bass response.
  • Knockouts on top and all four sides.
  • Dual mounting system for baffle.
  • Mounting platform for an optional high-power 70V/100V transformer.
  • 3 Cubic Ft.

Product Specifications

  • External Volume:  3 cu ft, nominal
  • Internal Volume:  2.4 cu ft.
  • Knockouts:  22.1 mm (0.87 in) diameter opening. Five (5) locations: 1 on top panel1 on each side and end
  • Height:  308 mm (12.1 in) above ceiling324 mm (12.6 in) total height
  • Width:  587 mm (23.1 in)
  • Depth:  461 mm (18.2 in) cabinet505 mm (19.9 in) including side tabs
  • Ceiling Cutout Size:  378 x 378 mm (14.9 x 14.9 in)
  • Shipping Weight:  23.1 kg (51 lbs)

Product Downloads
