MX392BE/C Microflex Cardioid Boundary Microphone Bottom Exit

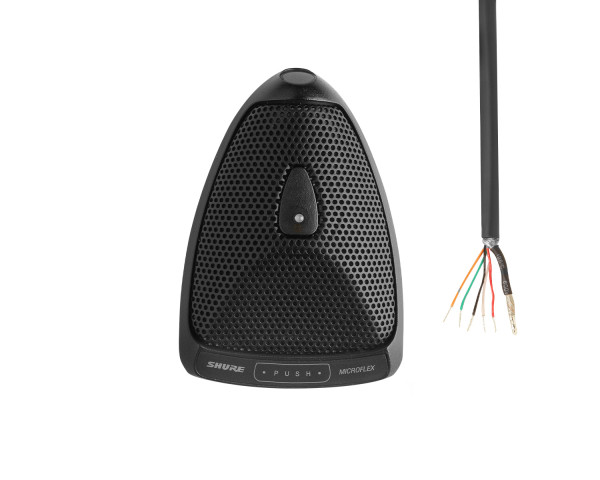

Shure MX392BE/C Microflex Cardioid Boundary Microphone Bottom Exit - Main Image

Shure MX392BE/C Microflex Cardioid Boundary Microphone Bottom Exit - Image 1

Shure MX392BE/C Microflex Cardioid Boundary Microphone Bottom Exit - Image 2

Price:: RRP: £342.00 inc VAT
Code:: SHUMX392BEC
Manufacturer Code:: MX392BE/C
Brand:: Shure

Main Features

Cardioid Capsule
Bottom exit for mounting on tabletops
Flat frequency response across the vocal range for uncoloured sound
Interchangeable cartridges that provide a choice of polar pattern for each application
Programmable mute button
3.7m Unterminated cable

Shure Microflex MX300 Series microphones are surface-mounted electret condenser microphones designed primarily for mounting on conference tables, stage floors, and lecterns. Their high sensitivity and wide frequency range make them especially suitable for picking up speech and vocals in sound reinforcement and recording applications. Interchangeable cartridges provide the installer with greater flexibility and make it possible to easily reconfigure microphone coverage as the need arises. The MX392 and MX393 models include an internal preamplifier.

MX300 Series microphones take advantage of the principle that, at a barrier or boundary, the sound pressure level doubles. When placed near a sufficiently large boundary surface, the microphone has 6 dB higher sensitivity and approximately 3 dB greater direct-to-reverberant sound ratio.

Product Features

Cardioid Capsule
Bottom exit for mounting on tabletops
Flat frequency response across the vocal range for uncoloured sound
Interchangeable cartridges that provide a choice of polar pattern for each application
Sleek, low-profile design for surface mounting
Programmable mute button
LED indicator
Logic input/output for remote control or use with automatic mixers
RF filtering
3.7m Unterminated cable

Product Specifications

Type: Electret Condenser
Frequency Response: 50–17000 Hz
Polar Pattern: Cardioid
Output Impedance: 180 Ω
Output Configuration: Active Balanced
Sensitivity @ 1 kHz, open circuit voltage: –30 dBV/Pa
Maximum SPL 1 kHz at 1% THD, 1 kΩ load: 119 dB
Self Noise A-weighted: 23 dB SPL
Signal-to-Noise Ratio Ref. 94 dB SPL at 1 kHz: 71 dB
Dynamic Range 1 kΩ load, @ 1 kHz: 96 dB
Common Mode Rejection 10 Hz to 100 kHz: 45 dB, minimum
Clipping Level at 1% THD: –6 dBV (0.5 V)
Polarity: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Mute Switch 50–20000 Hz: –50 dB minimum
Logic Connections
- LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: 0.7V to 50V.
- LOGIC OUT: Active low (≤0.5V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: 0.7V to 24V (up to 50V through 3kΩ).
Cable: 3½ m (12 ft) attached cable with shielded audio pair and three conductors for logic control, unterminated, bottom exit
Weight: 172 g (0.38 lbs)
Operating Temperature: -18-57 °C(0-135 °F)
Storage Temperature: -29-74 °C(-20-165 °F)
Relative Humidity: 0-95%
Power Requirements: 11-52V DC , 2.0 mA
