MX393/C Microflex Cardioid Boundary Microphone 3-Pin XLR

« return to previous page

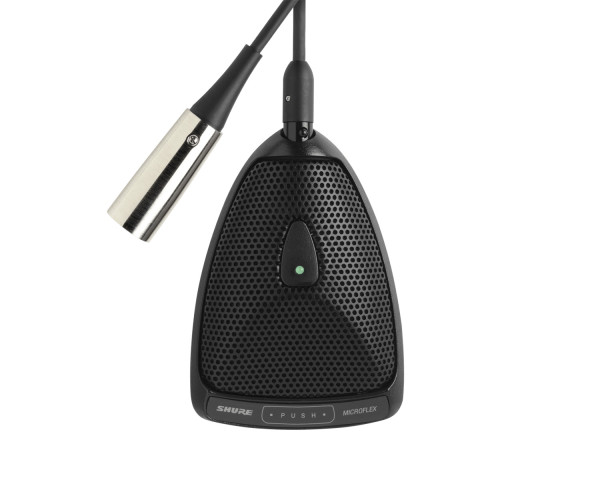

Shure MX393/C Microflex Cardioid Boundary Microphone 3-Pin XLR - Main Image
Price:
RRP: £342.00 inc VAT
Code:
SHUMX393CA
Manufacturer Code:
MX393/C
Brand:
Shure

Quantity required:

Main Features

  • Cardioid polar pattern
  • Programmable, silent membrane switch
  • Switch can be set to set for Push to Talk, Push to Mute or Push On/Push Off modes
  • Microflex cartridges give you superior Shure quality sound options for every installation
  • Low-profile design
  • LED indicator
Share:

MX393/C Microflex Cardioid Boundary Microphone 3-Pin XLR

Boundary microphone provides high-quality sound for a wide range of applications due to its interchangeable condenser cartridge. It features programmable, silent membrane switches, LED indicators, and a low-profile design.

There's never been smarter boundary microphones than the Microflex models from Shure. With many models to choose from, equipped with features like programmable, silent membrane switches, logic inputs and outputs, and LED indicators, Microflex Boundary microphones are the high-quality solution for a range of applications, such as altars, boardrooms and distance learning centres.

Every Microflex Boundary microphone features one of the new interchangeable condenser cartridges. Available in cardioid, supercardioid and omnidirectional polar patterns, the Microflex cartridges give you superior Shure quality sound options for every installation. In addition, their programmable switches offer the flexibility to be set for Push to Talk, Push to Mute or Push On/Push Off modes. Attractively designed with a low profile, professional appearance, the Microflex Boundary microphones come with an easy to use paint mask for your custom-color installations.

Product Features

  • Cardioid polar pattern
  • Programmable, silent membrane switch
  • Switch can be set to set for Push to Talk, Push to Mute or Push On/Push Off modes
  • Microflex cartridges give you superior Shure quality sound options for every installation
  • Low-profile design
  • LED indicator

Product Specifications

  • Transducer Type:  Condenser
  • Polar Pattern:  Cardioid
  • Frequency Range From (Hz):  50
  • Frequency Range To (kHz):  17
  • Sensitivity dBV/Pa:  Cardioid: -30.00
  • Equivalent Selfnoise:  Half-Cardioid: 22.6 dB(A)
  • Maximum Sound Pressure:  Cardioid: 119 dB
  • Impedance (Ω):  Rated: 150 / Actual: 180
  • Switchable Low Cut:  no
  • Output Connectors:  3 Pin XLR
  • Attenuation PAD:  no
  • Interchangeable Capsule:  yes
  • Requires Phantom Power (VDC):  11 to 52
  • Weight (g) / (lbs):  356 g / 0.785 lbs
  • Height (mm) / (in):  21.16 mm / 0.833 in
  • Width (mm) / (in):  76.2 mm / 3 in
  • Depth (mm) / (in):  93 mm / 3.661 in
