MX395W/O-LED Microflex Omnidirectional Button Boundary Mic+LED Wh

« return to previous page

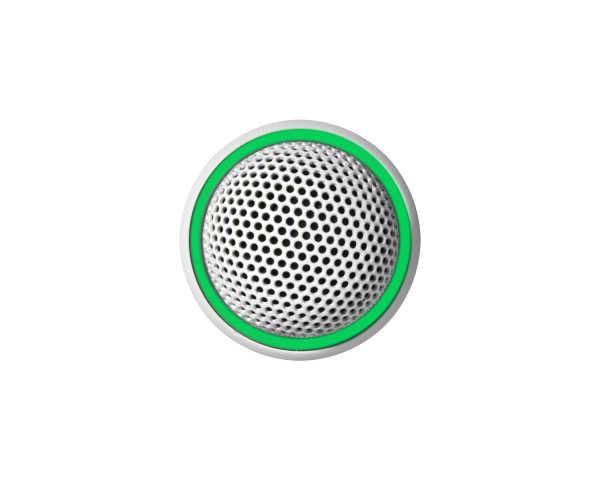

Shure MX395W/O-LED Microflex Omnidirectional Button Boundary Mic+LED Wh - Main Image
Shure MX395W/O-LED Microflex Omnidirectional Button Boundary Mic+LED Wh - Image 1
Shure MX395W/O-LED Microflex Omnidirectional Button Boundary Mic+LED Wh - Image 2
Shure MX395W/O-LED Microflex Omnidirectional Button Boundary Mic+LED Wh - Image 3
Shure MX395W/O-LED Microflex Omnidirectional Button Boundary Mic+LED Wh - Image 4
Price:
RRP: £276.00 inc VAT
Code:
SHUMX395WOLED
Manufacturer Code:
MX395W/O-LED
Brand:
Shure

Quantity required:

Main Features

  • Omnidirectional polar pattern
  • Only 1.25 inch (3.8 cm) in diameter
  • Wide dynamic range and smooth frequency response
  • RF filtering with CommShield technology
  • Bi-colour status indicator
  • Finish: White
Share:

MX395W/O-LED Microflex Omnidirectional Button Boundary Mic+LED Wh

Shure MX395 low-profile microphones are for use in boardrooms and other sites where aesthetics are important. The MX395 is only 2.5 cm (1 in.) in diameter and extends just 2 cm above the mounting surface when installed. Despite its small size, the MX395 delivers clear, high-quality sound.

Product Features

  • Omnidirectional polar pattern
  • Only 1.25 inch (3.8 cm) in diameter
  • Wide dynamic range and smooth frequency response
  • Low profile, aesthetic design
  • RF filtering with CommShield technology
  • Bi-colour status indicator
  • Logic input for remote LED control
  • Finish:  White

Product Specifications

  • Transducer Type:  Condenser
  • Polar Pattern:  Omnidirectional
  • Frequency Range From (Hz):  50
  • Frequency Range To (kHz):  17
  • Sensitivity dBV/Pa:  Omnidirectional: -28.00
  • Sensitivity mvpa:  Omnidirectional: 42.00
  • Equivalent Selfnoise:  Omnidirectional: 21 dB (A)
  • Maximum Sound Pressure:  Omnidirectional: 114 dB
  • Impedance (Ω):  Rated: 150 / Actual: 180
  • Switchable Low Cut:  yes
  • Output Connectors:  5 Pin XLR
  • Attenuation PAD:  no
  • Interchangeable Capsule:  no (different polar patterns offered as part of the mic, not via an interchangeable capsule)
  • Requires Phantom Power (VDC):  3-pin version: 11-52 VDC 5-pin version: 48-52 VDC
  • Weight (g) / (lbs):  149 g / 0.328 lbs
  • Height (mm) / (in):  101 mm / 3.976 in
  • Width (mm) / (in):  32 mm / 1.26 in
  • Depth (mm) / (in):  32 mm / 1.26 in

Product Downloads
