MX396/C-DUAL Microflex Dual-Element Cardioid Boundary Microphone

« return to previous page

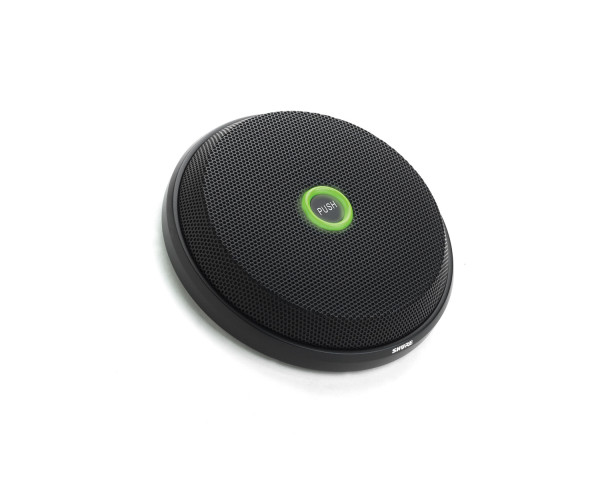

Shure MX396/C-DUAL Microflex Dual-Element Cardioid Boundary Microphone - Main Image
Shure MX396/C-DUAL Microflex Dual-Element Cardioid Boundary Microphone - Image 1
Shure MX396/C-DUAL Microflex Dual-Element Cardioid Boundary Microphone - Image 2
Price:
RRP: £624.00 inc VAT
Code:
SHUMX396CDUAL
Manufacturer Code:
MX396/C-DUAL
Brand:
Shure

Quantity required:

Main Features

  • 2 x Cardioid Elements
  • Cross-Table Coverage
  • Low profile, aesthetic design
  • Configurable mute switch with logic output
  • Logic input for external LED control
  • RF filtering with CommShield® technology
Share:

MX396/C-DUAL Microflex Dual-Element Cardioid Boundary Microphone

Microflex Multi-Element Boundary microphones deliver a unique and versatile tool for conference room installations. Clean and simple in appearance, Multi-Element Boundary mics come in two or three-element configurations, combining the coverage of multiple microphones into one small, compact package.

Product Features

  • 2 x Cardioid Elements
  • Cross-Table Coverage
  • Low profile, aesthetic design
  • Wide dynamic range and smooth frequency response
  • Configurable mute switch with logic output
  • Logic input for external LED control
  • RF filtering with CommShield® technology

Product Specifications

  • Type:  Electret Condenser
  • Frequency Response:  50–17000 Hz
  • Polar Pattern:  MX396/C-DUAL:  Cardioid (x2)
  • Output Impedance:  170 Ω
  • Output Configuration:  Active Balanced
  • Sensitivity:
    • @ 1 kHz, open circuit voltage
    • −35 dBV/Pa (18 mV)
    • 1 Pa=94 dB SPL
  • Maximum SPL 1 kHz at 1% THD, 1 kΩ load:  122 dB
  • Self Noise A-weighted:  30 dB SPL
  • Signal-to-Noise Ratio Ref. 94 dB SPL at 1 kHz:  64 dB
  • Dynamic Range 1 kΩ load, @ 1 kHz:  92 dB
  • Common Mode Rejection:
  • 10 to 100,000 kHz
  • 45 dB, minimum
  • Clipping Level at 1% THD:  –7 dBV (0.5 V)
  • Mute Switch:  −50 dB minimum
  • Logic Connections:
    • LED IN:  Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
    • LOGIC-OUT:  Active low (≤0.5V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 24V (up to 50V through 3kΩ).
  • Cable:  6.1 m (20 ft), attached, unterminated, three shielded audio pairs and three shielded conductors for logic control
  • Weight:  594 g (1.3 lbs)
  • Environmental Conditions:
    • Operating Temperature:  –18–57°C (0–135°F)
    • Storage Temperature:  –29–74°C (–20–165°F)
  • Relative Humidity:  0–95%
  • Power Requirements: MX396/C-DUAL:  48–52  V DC, 19.0 mA
