MX410/S Microflex 10

« return to previous page

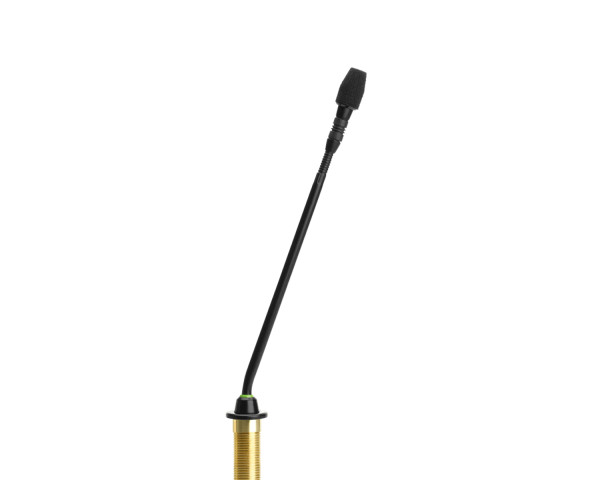

Shure MX410/S Microflex 10 Supercardioid Gooseneck Microphone + Preamp - Image 1

Shure MX410/S Microflex 10 Supercardioid Gooseneck Microphone + Preamp - Image 2

Shure MX410/S Microflex 10 Supercardioid Gooseneck Microphone + Preamp - Image 3

Price:: RRP: £420.00 inc VAT
Code:: SHUMX410S
Manufacturer Code:: MX410/S
Brand:: Shure

Main Features

Gooseneck length: 10 inch / 25.4 cm
Wide dynamic range and smooth frequency response
RF filtering with CommShield™ technology
Bi-Colour LED at gooseneck bottom
Includes MX400SMP Surface mount preamp
Supercardioid Capsule

Full Description

MX410/S Microflex 10" Supercardioid Gooseneck Microphone + Preamp

The MX410 surface mount version is a gooseneck microphone with a Bi-Colour LED as status display. It has a 25,4 cm gooseneck and is suitable for boardrooms and other sites where aesthetics are important.

Features

Product Features

Gooseneck length: 10 inch / 25.4 cm
Low profile, aesthetic design
Wide dynamic range and smooth frequency response
RF filtering with CommShield™ technology
Bi-Colour LED at gooseneck bottom
Includes MX400SMP Surface mount preamp
Supercardioid Capsule

Technical Specs

Product Specifications

Type: Condenser (electret bias)
Frequency Response: 50–17000 Hz
Polar Pattern (at 1 kHz): Supercardioid
Output Impedance: EIA Rated at 150 Ω (170 Ω actual)
Output Configuration: Active Balanced
Sensitivity (at 1 kHz , open circuit voltage): Supercardioid: –34 dBV/Pa (21 mV)
Maximum SPL (1 kHz at 1% THD, 1 kW load): Supercardioid: 120 dB
Equivalent Output Noise (A-weighted): Supercardioid: 27 dB SPL
Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz): Supercardioid: 68 dB
Dynamic Range (1 kΩ load at 1 kHz): 93 dB
Common Mode Rejection (10 Hz to 100 kHz): 45 dB minimum
Preamplifier Output Clipping Level (1% THD): -8 dBV (0.4 V)
Polarity: 3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
Weight: MX405: 0.054 kg (0.119 lbs)
Logic Connections:
- LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
- LOGIC OUT: Active low (≤1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kΩ).
Mute Switch Attenuation: -50 dB minimum
Environmental Conditions:
- Operating Temperature: -18–57 °C (0–135 °F)
- Storage Temperature: -29–74 °C (-20–165 °F)
- Relative Humidity: 0–95%
Power Requirements: 48–52 Vdc phantom, 8.0 mA
