MX418S/C Microflex 18" Cardioid Gooseneck Microphone LED/Preamp

« return to previous page

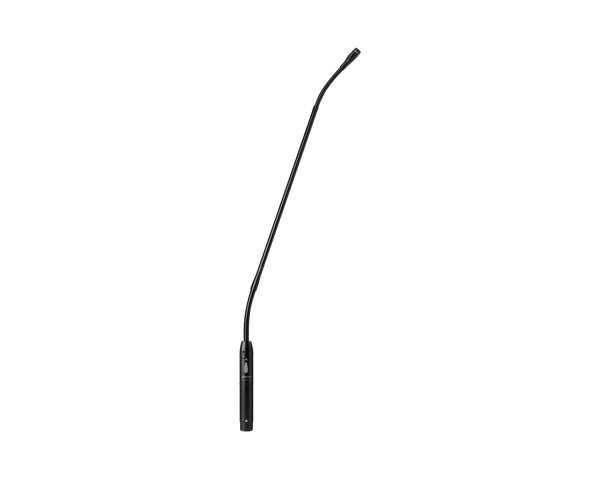

Shure MX418S/C Microflex 18 Cardioid Gooseneck Microphone LED/Preamp - Main Image
Price:
RRP: £324.00 inc VAT
Code:
SHUMX418SC
Manufacturer Code:
MX418S/C
Brand:
Shure

Quantity required:

Main Features

  • 18 inch (45 cm) gooseneck with LED Indicator and Mute Switch
  • Cardioid Polar Pattern
  • Dual-flex gooseneck provides easy mic adjustment
  • Includes locking flange and shockmount assemblies
  • Can mount on table, lectern, podium or similar surface
  • Interchangeable cartridges ensure great audio in any environment
Share:

MX418S/C Microflex 18 Cardioid Gooseneck Microphone LED/Preamp

The MX418 delivers the responsiveness to everything you want them to hear — and controls what you don’t. It’s great sound and reliable performance, without noise or distractions. Even installation was rethought and reengineered to be simpler and smoother for AV integration. Precise, tailored-for-speech audio for any size room.

Product Features

  • 18 inch (45 cm) gooseneck with LED Indicator and Mute Switch
  • Cardioid Polar Pattern
  • Dual-flex gooseneck provides easy mic adjustment
  • Includes locking flange and shockmount assemblies
  • Can mount on table, lectern, podium or similar surface
  • Interchangeable cartridges ensure great audio in any environment

Product Specifications

  • Type:  Condenser (electret bias)
  • Frequency Response:  50 Hz – 17 kHz
  • Polar Pattern:  Cardioid
  • Output Impedance EIA rated at 150 Ω (170 Ω actual)
  • Sensitivity at 1 kHz, open circuit voltage; 1 Pascal = 94 dB SPL:  Cardioid: –35 dBV/Pa (17.8 mV)
  • Maximum SPL 1 kHz at 1% THD, 1 kΩ load:  Cardioid: 124.2 dB
  • Equivalent Output Noise A-weighted:  Cardioid: 28 dB SPL
  • Signal-to-Noise Ratio referenced at 94 dB SPL at 1 kHz:  Cardioid: 66 dB
  • Dynamic Range 1 kΩ load at 1 kHz:  96.2 dB 100 dB at 0 gain (internal modification)
  • Common Mode Rejection 45 dB minimum (10 Hz – 100 kHz)
  • Preamplifier Output Clipping Level 1% THD:  –6 dBV (0.5 V)
  • Polarity:  Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
  • Mute Switch Attenuation:  –50 dB minimum
  • Environmental Conditions
    • Operating temperature range: -18° – 57° C
    • Relative humidity: 0 – 95%
  • Power Requirements:  11 – 52 Vdc phantom, 8.0 mA

What's in the Box?

  • 1 x 65B8264 Flange
  • 1 x 65B8265 Retainer
  • 1 x 80A439 Isolation Ring
  • 1 x RK412WS Snap-fit Foam Windscreen (1 furnished, 4 in replacement kit)
  • 1 x A400SM Shock Mount
  • 1 x 80A67 Hex Wrench #4
