MX418SE/S Microflex 18" Supercardioid Gooseneck Mic SideEx/Preamp

« return to previous page

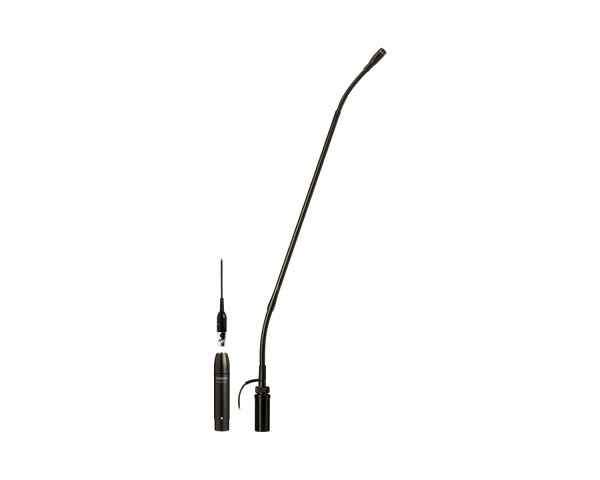

Shure MX418SE/S Microflex 18 Supercardioid Gooseneck Mic SideEx/Preamp - Main Image
Shure MX418SE/S Microflex 18 Supercardioid Gooseneck Mic SideEx/Preamp - Image 1
Shure MX418SE/S Microflex 18 Supercardioid Gooseneck Mic SideEx/Preamp - Image 2
Price:
RRP: £324.00 inc VAT
Code:
SHUMX418SES
Manufacturer Code:
MX418SE/S
Brand:
Shure

Quantity required:

Main Features

  • 18 inch (45 cm) gooseneck with LED Indicator and Mute Switch
  • Supercardioid Polar Pattern
  • Dual-flex gooseneck provides easy mic adjustment
  • Side Exit Preamp
  • Can mount on table, lectern, podium or similar surface
  • Interchangeable cartridges ensure great audio in any environment
Share:

MX418SE/S Microflex 18" Supercardioid Gooseneck Mic SideEx/Preamp

Shure Microflex MX400SE Series microphones are miniature gooseneck-mounted electret condenser microphones designed for speech and vocal pickup. Their high sensitivity and broad frequency range make them suitable for recording, as well as sound reinforcement applications.

MX400SE microphones can be screwed onto a mic stand or the supplied 5/8 inch 27-threaded flange. They can be easily changed from side-exit to bottom-exit to conceal the cable. All models include an in-line preamplifier and a 3 m (10 ft) cable. Each microphone is available with interchangeable cardioid, supercardioid, or omnidirectional cartridges.

Product Features

  • 18 inch (45 cm) gooseneck with LED Indicator and Mute Switch
  • Supercardioid Polar Pattern
  • Dual-flex gooseneck provides easy mic adjustment
  • Side Exit Preamp
  • Includes locking flange and shockmount assemblies
  • Can mount on table, lectern, podium or similar surface
  • Interchangeable cartridges ensure great audio in any environment

Product Specifications

  • Type:  Condenser (electret bias)
  • Frequency Response:  50 Hz – 17 kHz
  • Polar Pattern:  Supercardioid
  • Output Impedance EIA rated at 150 Ω (170 Ω actual)
  • Sensitivity at 1 kHz, open circuit voltage; 1 Pascal = 94 dB SPL:  Supercardioid: –33.5 dBV/Pa (21.1mV)
  • Maximum SPL 1 kHz at 1% THD, 1 kΩ load:  Supercardioid: 122.7 dB
  • Equivalent Output Noise A-weighted:  Supercardioid: 26.5 dB SPL
  • Signal-to-Noise Ratio referenced at 94 dB SPL at 1 kHz:  Supercardioid: 67.5 dB
  • Dynamic Range 1 kΩ load at 1 kHz:  96.2 dB 100 dB at 0 gain (internal modification)
  • Common Mode Rejection 45 dB minimum (10 Hz – 100 kHz)
  • Preamplifier Output Clipping Level 1% THD:  –6 dBV (0.5 V)
  • Polarity:  Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
  • Mute Switch Attenuation:  –50 dB minimum
  • Environmental Conditions
    • Operating temperature range: -18° – 57° C
    • Relative humidity: 0 – 95%
  • Power Requirements:  11 – 52 Vdc phantom, 8.0 mA

What's in the Box?

  • 1 x A12B Flange & Nut
  • 1 x 80A476 Clamp
  • 1 x A400SM Shock Mount
  • 1 x RK412WS Snap-fit Foam Windscreen (1 furnished, 4 in replacement kit.)
