MX424/S Microflex 24" Supercardioid Gooseneck Microphone + Preamp

« return to previous page

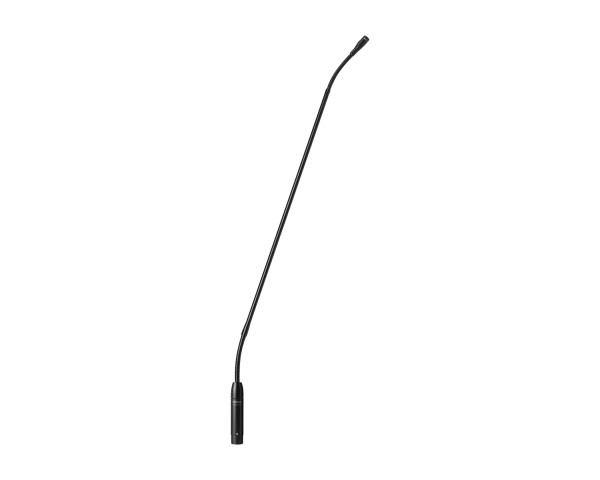

Shure MX424/S Microflex 24 Supercardioid Gooseneck Microphone + Preamp - Main Image

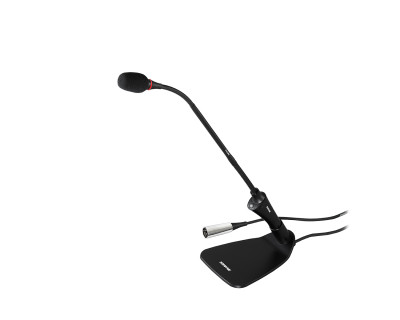

Shure MX424/S Microflex 24 Supercardioid Gooseneck Microphone + Preamp - Image 1
Shure MX424/S Microflex 24 Supercardioid Gooseneck Microphone + Preamp - Image 2
Price:
RRP: £312.00 inc VAT
Code:
SHUMX424S
Manufacturer Code:
MX424/S
Brand:
Shure

Quantity required:

Main Features

  • 24-inch dual-flex gooseneck for maximum reach and easy adjustment
  • Supercardioid Capsule
  • 3-pin male XLR connector
  • Mounts on table, lectern, podium or similar surface with included mounting flange
  • Included shock mount reduces vibration noise
  • Interchangeable cartridges ensure detailed audio in any environment
Share:

MX424/S Microflex 24" Supercardioid Gooseneck Microphone + Preamp

The MX424 allows articulate speech capture to be placed precisely where you need it. Its 24-inch gooseneck provides maximum reach in situations where the microphone is located farther from the talker. Compatibility with interchangeable Microflex cartridges allows a choice of polar patterns to match coverage areas or acoustic conditions.

Product Features

  • 24-inch dual-flex gooseneck for maximum reach and easy adjustment
  • Supercardioid Capsule
  • 3-pin male XLR connector
  • Mounts on table, lectern, podium or similar surface with included mounting flange
  • Included shock mount reduces vibration noise
  • Interchangeable cartridges ensure detailed audio in any environment
  • Snap-fit foam windscreen keeps breath noise and plosives from being a distraction

Product Specifications

  • Type:  Condenser (electret bias)
  • Frequency Response:  50 Hz – 17 kHz
  • Polar Pattern:  Supercardioid
  • Output Impedance EIA rated at 150 Ω (170 Ω actual)
  • Sensitivity at 1 kHz, open circuit voltage; 1 Pascal = 94 dB SPL:  Supercardioid: –33.5 dBV/Pa (21.1mV)
  • Maximum SPL 1 kHz at 1% THD, 1 kΩ load:  Supercardioid: 122.7 dB
  • Equivalent Output Noise A-weighted:  Supercardioid: 26.5 dB SPL
  • Signal-to-Noise Ratio referenced at 94 dB SPL at 1 kHz:  Supercardioid: 67.5 dB
  • Dynamic Range 1 kΩ load at 1 kHz:  96.2 dB 100 dB at 0 gain (internal modification)
  • Common Mode Rejection 45 dB minimum (10 Hz – 100 kHz)
  • Preamplifier Output Clipping Level 1% THD:  –6 dBV (0.5 V)
  • Polarity:  Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector.
  • Mute Switch Attenuation:  –50 dB minimum
  • Environmental Conditions
    • Operating temperature range: -18° – 57° C
    • Relative humidity: 0 – 95%
  • Power Requirements:  11 – 52 Vdc phantom, 8.0 mA

What's in the Box?

  • 1 x 65B8264 Flange
  • 1 x 65B8265 Retainer
  • 1 x 80A439 Isolation Ring
  • 1 x RK412WS Snap-fit Foam Windscreen (1 furnished, 4 in replacement kit)
  • 1 x A400SM Shock Mount
  • 1 x 80A67 Hex Wrench #4
