N8050DS IP Intercom Door Station

« return to previous page

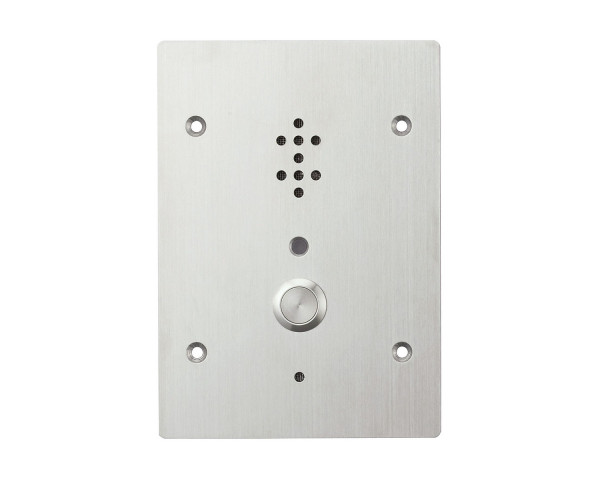

TOA N8050DS IP Intercom Door Station - Main Image
Price:
RRP: £420.00 inc VAT
Code:
TOAN8050DS
Manufacturer Code:
N-8050DS
Brand:
TOA

Quantity required:

Main Features

  • For indoor / outdoor use
  • Hands-free conversation
  • Contact output
  • Status LED
  • Includes mounting screws
  • Stainless Steel, Metal
Share:

N8050DS IP Intercom Door Station

Designed to connect to the IP Intercom Exchange, the N-8050DS is a door station featuring high quality hands-free conversation. It has a contact output (momentarily closed) to remotely control an electronic door lock. It is in full conformity with IP54 water-proof and dust-proof standards. The operating temperature range is -10 to 50℃. As provided with guard nets inside to cover the openings of the microphone and speaker, the N-8050DS can be installed free from care in public space.

Product Features

  • For indoor / outdoor use
  • Hands-free conversation
  • Contact output
  • Status LED
  • Includes mounting screws
  • Stainless Steel, Metal

Product Specifications

  • Power Source:  48 V DC (supplied from the IP intercom exchange (option))
  • Power Consumption:  1.8 W (at rated), 2.4 W (max.)
  • Wiring Method:  1 set of twisted pair cable
  • Transmission System:  2 wire 160 kbps echo canceller transmission system
  • Signal Level:  0 dB* or less
  • Speech Method:  Hands-free conversation
  • Audio Frequency Range:  300 Hz - 7 kHz
  • Transmission Range:  Max. 1500 m (φ0.65 mm. Loop resistance 170 Ω)
  • Hands-free:
  • Speaker: 3.5 cm cone-type, 1 W, 8 Ω
  • Microphone: Omni-directional electret condenser microphone
  • Contact Output:  Open collector output, withstand voltage: Max. 30 V DC, control current: Max. 50 mA, one shot: can be set from 1 to 9 s, screw terminal (polarized)
  • Indication:  Status lamp
  • Line Connecting Terminal:  2 wire, screw terminal (non-polar)
  • Setting Method:  Flush-mount/Surface-mount
  • Operating Temperature:  -10 ℃ to +50 ℃
  • Operating Humidity:  90 %RH or less (no condensation)
  • Housing Protection:  BS EN62262: 2002: IK02 equivalent
  • Dust/Water Protection:  IP54 (Note that panel edges must be sealed at installation.)
  • Finish:
    • Plate: Stainless steel (SUS304), hairline
    • Call button: Metal
  • Dimensions:  115 (W) x 162 (H) x 54 (D) mm
  • Weight:  680 g
  • Accessory:
    • Box mounting screw (No.6-32UNC × 18) x  4
    • Box mounting screw (M4 × 25) x 4
    • Acoustic absorbent (made of felt) x 1

What's in the Box?

  • Box mounting screw (No.6-32UNC × 18) x  4
  • Box mounting screw (M4 × 25) x 4
  • Acoustic absorbent (made of felt) x 1
