NC3FXX 3 Pole XLR Cable Connector Female Nickel

« return to previous page

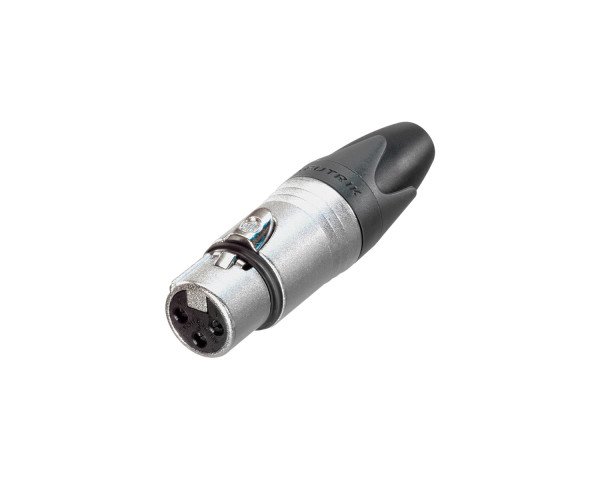

Neutrik NC3FXX 3 Pole XLR Cable Connector Female Nickel - Main Image
Price:
RRP: £5.03 inc VAT
Code:
NEKNC3FXX
Manufacturer Code:
NC3FXX
Brand:
Neutrik

Quantity required:

Main Features

  • 3 Pole Female Cable Connector
  • Nickel Housing and Silver Contacts
  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
Share:

NC3FXX 3 Pole XLR Cable Connector Female Nickel

3 pole female cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Product Features

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Coloured rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well protected against any damage

Product Specifications

Product

  • Title:  NC3FXX
  • Connection Type:  XLR
  • Gender:  female

Electrical

  • Capacitance between contacts:  ≤ 4 pF
  • Contact resistance:  ≤ 3 mΩ
  • Dielectric strength:  1,5 kVdc
  • Insulation resistance:  > 10 GΩ (initial)
  • Rated current per contact:  16 A
  • Rated voltage:  < 50 V

Mechanical

  • Cable O.D.:  3.5 - 8.0 mm
  • Insertion force:  ≤ 20 N
  • Withdrawal force:  ≤ 20 N
  • Lifetime:  > 1000 mating cycles
  • Wiresize:  max. 2.5 mm²
  • Wiresize:  max. 14 AWG
  • Locking device:  Latch lock

Material

  • Boot: Polyurethane
  • Contact plating:  2 µm Ag
  • Contacts:  Bronze (CuSn8)
  • Insert:  Polyamide (PA66)
  • Locking element:  Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Locking element plating:  Nickel
  • Shell:  Zinc diecast (ZnAl4Cu1)
  • Shell plating:  Nickel
  • Strain relief:  Polyacetal (POM)

Environmental

  • Flammability:  UL 94 V-0
  • Standard compliance:  IEC 61076-2-103
  • Protection class:  IP 40
  • Solderability:  Complies with IEC 68-2-20
  • Temperature range:  -30 °C to +80 °C
