Main Features
3 Pole Male Cable Connector
Black Metal Housing and Gold Contacts
Male connector with improved locking recess without "window"
Improved chuck type strain relief provides higher pull-out force and makes assembly easier
Boot with polyurethane gland gives high protection to cable bending stresses
Coloured rings and boots available for coding or identification

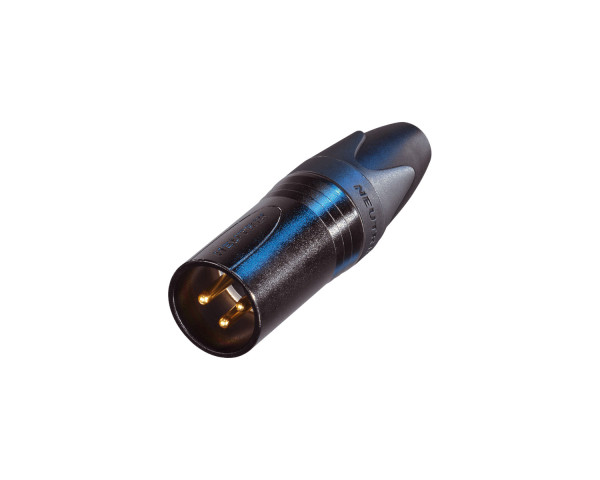

NC3MXX-B 3 Pole XLR Cable Connector Male Gold Contacts Black
3 pole male cable connector with black metal housing and gold contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Product Features
Male connector with improved locking recess without "window", more stringent housing increases durability
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Boot with polyurethane gland gives high protection to cable bending stresses
Coloured rings and boots available for coding or identification
Sleek and ergonomic design - valuable and handy
Rugged zinc diecast shell, longlasting and dependable
Internal thread on shell is well protected against any damage
Product Specifications
Product
Title: NC3MXX-B
Connection Type: XLR
Gender: male
Electrical
Capacitance between contacts: ≤ 4 pF
Contact resistance: ≤ 3 mΩ
Dielectric strength: 1,5 kVdc
Insulation resistance: > 10 GΩ (initial)
Rated current per contact: 16 A
Rated voltage: < 50 V
Mechanical
Cable O.D.: 3.5 - 8.0 mm
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wiresize: max. 2.5 mm²
Wiresize: max. 14 AWG
Wiring: Solder contacts
Locking device: Latch lock
Material
Boot: Polyurethane
Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
