MCM 114 Set Miniature Clip Mic System for Brass/Sax/Uni

« return to previous page
Neumann MCM 114 Set Miniature Clip Mic System for Brass/Sax/Uni - Main Image
Neumann MCM 114 Set Miniature Clip Mic System for Brass/Sax/Uni - Image 1
Neumann MCM 114 Set Miniature Clip Mic System for Brass/Sax/Uni - Image 2
Neumann MCM 114 Set Miniature Clip Mic System for Brass/Sax/Uni - Image 3
Neumann MCM 114 Set Miniature Clip Mic System for Brass/Sax/Uni - Image 4
Neumann MCM 114 Set Miniature Clip Mic System for Brass/Sax/Uni - Image 5
Price:
RRP: £658.80 inc VAT
Code:
NEUMCM114SBSU
Manufacturer Code:
008711
Brand:
Neumann

Quantity required:

Main Features

  • Elevates electret principle to Neumann sound standards
  • Durability increases ROI up to tenfold
  • A single capsule for loud and soft instruments
  • Works with key transmitter bodypacks
  • System for Brass/Sax
  • Includes mounting accessories, mic, cable and case
Share:

Neumann MCM 114 Set Miniature Clip Mic System for Brass/Sax/Uni

The Miniature Clip Mic MCM System raises the bar of electret capsules. And as a true Neumann, picks the typical sound from all acoustic instruments in live applications. It redefines the standard in natural sound, practicality, reliable mounting, and longevity. The system includes nine instrument-specific mounting clips for a wide variety of acoustic instruments. The modular construction allows for easy replacements and guarantees a superior low cost of ownership.

The KK 14 captures the signature sound of acoustic instruments with unmatched precision and neutrality. It overcomes former limitations of the electret principle to deliver a wider bass and mid-range, and a confident elegance in the treble. Whether quiet nuances or the peak dynamics of a strong fortissimo: With a maximum SPL of 153, the KK 14 is open to all details.

Includes a universal clip for attaching the capsule and gooseneck of the Miniature Clip Mic system to the bell of a trumpet, trombone, saxophone or other horn, to percussion instruments and to pole stands. The gooseneck holder rotates along two axes and locks in 45° increments to allow you to adjust the orientation.

Product Features

  • Elevates electret principle to Neumann sound standards
  • Durability increases ROI up to tenfold
  • A single capsule for loud and soft instruments
  • Works with key transmitter bodypacks
  • System for Brass/Sax
  • Includes mounting accessories, mic, cable and case

Product Specifications

MCM 114 (KK 14 with MCM 100) Specifications

  • Acoustic operating principle:  Pressure gradient transducer
  • Directional pattern:  Cardioid
  • Frequency range:  20 Hz - 20 kHz
  • Sensitivity at 1 kHz into 1 kΩ:  3.6 mV/Pa 49 dBv ± 2 dB
  • Rated output impedance:  KK 14: 10 Ω | MCM 100: 50 Ω
  • Rated load impedance:  1000 Ω
  • Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL):  63 dB
  • Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL):  71 dB
  • Equivalent noise level, CCIR1):  31 dB
  • Equivalent noise level, A-weighted1):  23 dB-A
  • Maximum SPL2) for THD < 0.5 %:
    • with MCM 100, Usupply = 10 V, Rfeed = 20 kΩ:  153 dB SPL
    • with Usupply = 5 V, Rfeed = 8.25 kΩ:  147 dB SPL
  • Dynamic range of the amplifier, A-weighted2) for THD < 0.5 %:  130 dB
  • Power supply:  KK 14: ≤ 10 V, with Rfeed = 20 kΩ | MCM 100: 48 V ± 4 V (P48, IEC 61938)
  • Current consumption:  KK 14: 0.22 mA | MCM 100: 3.5 mA
  • Required connector:  XLR-3F
  • Weight:  KK 14: 2.3 g | MCM 100: 96 g
  • Dimensions (Ø x L):  KK 14: Ø 12 mm x 11 mm | MCM 100: Ø 22 mm x 77 mm
  • Operating temperature range:  0 °C - +40 °C (32 °F - 104 °F)
  • Storage temperature range:  −20 °C - +70 °C (−4 °F - 158 °F)
  • Operating humidity range:  0 % - 90 %
  • Storage humidity range:  0 % - 95 %

SH 150 Gooseneck Specifications

  • Overall length:  194mm
  • Weight:  20 g

MC 6 Clip Specifications

  • Suitable for:  trumpet, trombone, saxophone, french horn, percussion, stands
  • Clip aperture:  0 - 20 mm
  • Weight:  20 g

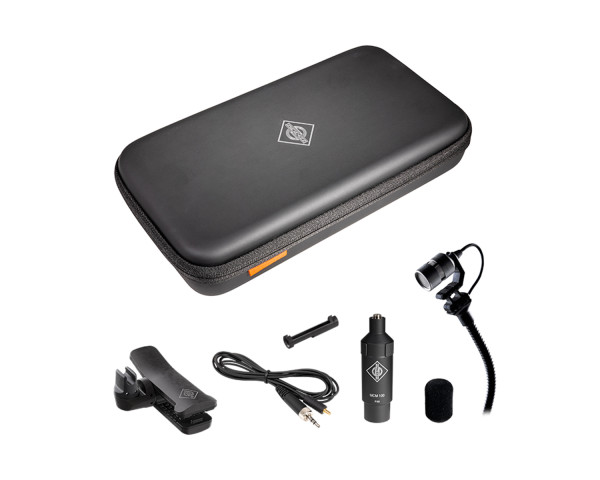

What's in the Box?

  • KK 14 Capsule for Miniature Clip Mic system
  • SH 150 Gooseneck
  • MCM 100 Output stage XLR
  • MC 6 Universal Clamp Clip
  • KC 1 Cable Brace
  • WS 110 Soft Windscreen
  • AC 31 1.8m Cable Mini Jack
  • Softcase
