MCM 114 Set Miniature Clip Mic System for Woodwind

« return to previous page

Neumann MCM 114 Set Miniature Clip Mic System for Woodwind - Main Image

Neumann MCM 114 Set Miniature Clip Mic System for Woodwind - Image 1

Neumann MCM 114 Set Miniature Clip Mic System for Woodwind - Image 2

Neumann MCM 114 Set Miniature Clip Mic System for Woodwind - Image 3

Neumann MCM 114 Set Miniature Clip Mic System for Woodwind - Image 4

Neumann MCM 114 Set Miniature Clip Mic System for Woodwind - Image 5

Neumann MCM 114 Set Miniature Clip Mic System for Woodwind - Image 6

Neumann MCM 114 Set Miniature Clip Mic System for Woodwind - Image 7

Price:: RRP: £658.80 inc VAT
Code:: NEUMCM114SWO
Manufacturer Code:: 008713
Brand:: Neumann

Main Features

Elevates electret principle to Neumann sound standards
Durability increases ROI up to tenfold
A single capsule for loud and soft instruments
Works with key transmitter bodypacks
System for Woodwinds

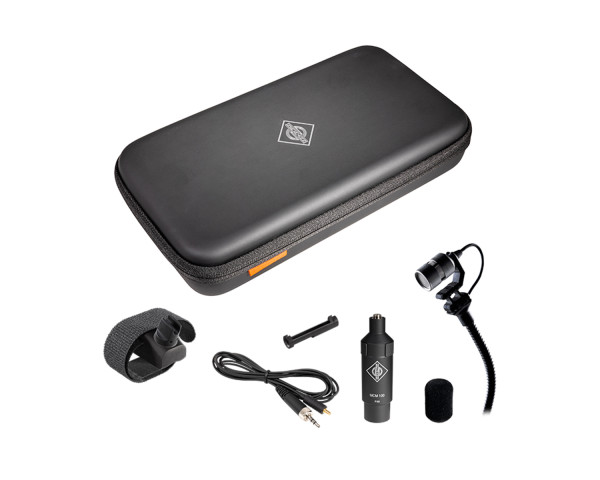

Includes mounting accessories, mic, cable and case

Neumann MCM 114 Set Miniature Clip Mic System for Woodwind

The Miniature Clip Mic MCM System raises the bar of electret capsules. And as a true Neumann, picks the typical sound from all acoustic instruments in live applications. It redefines the standard in natural sound, practicality, reliable mounting, and longevity. The system includes nine instrument-specific mounting clips for a wide variety of acoustic instruments. The modular construction allows for easy replacements and guarantees a superior low cost of ownership.

The KK 14 captures the signature sound of acoustic instruments with unmatched precision and neutrality. It overcomes former limitations of the electret principle to deliver a wider bass and mid-range, and a confident elegance in the treble. Whether quiet nuances or the peak dynamics of a strong fortissimo: With a maximum SPL of 153, the KK 14 is open to all details.

Includes a universal holder for attaching the capsule and gooseneck of the Miniature Clip Mic system to an oboe, clarinet, flute, recorder, harp or bassoon. The gooseneck holder rotates and locks in 45° increments to allow you to adjust the orientation.

Product Features

Elevates electret principle to Neumann sound standards
Durability increases ROI up to tenfold
A single capsule for loud and soft instruments
Works with key transmitter bodypacks
System for High Strings
Includes mounting accessories, mic, cable and case

Product Specifications

MCM 114 (KK 14 with MCM 100) Specifications

Acoustic operating principle: Pressure gradient transducer
Directional pattern: Cardioid
Frequency range: 20 Hz - 20 kHz
Sensitivity at 1 kHz into 1 kΩ: 3.6 mV/Pa 49 dBv ± 2 dB
Rated output impedance: KK 14: 10 Ω | MCM 100: 50 Ω
Rated load impedance: 1000 Ω
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 63 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 71 dB
Equivalent noise level, CCIR1): 31 dB
Equivalent noise level, A-weighted1): 23 dB-A
Maximum SPL2) for THD < 0.5 %:
- with MCM 100, Usupply = 10 V, Rfeed = 20 kΩ: 153 dB SPL
- with Usupply = 5 V, Rfeed = 8.25 kΩ: 147 dB SPL
Dynamic range of the amplifier, A-weighted2) for THD < 0.5 %: 130 dB
Power supply: KK 14: ≤ 10 V, with Rfeed = 20 kΩ | MCM 100: 48 V ± 4 V (P48, IEC 61938)
Current consumption: KK 14: 0.22 mA | MCM 100: 3.5 mA
Required connector: XLR-3F
Weight: KK 14: 2.3 g | MCM 100: 96 g
Dimensions (Ø x L): KK 14: Ø 12 mm x 11 mm | MCM 100: Ø 22 mm x 77 mm
Operating temperature range: 0 °C - +40 °C (32 °F - 104 °F)
Storage temperature range: −20 °C - +70 °C (−4 °F - 158 °F)
Operating humidity range: 0 % - 90 %
Storage humidity range: 0 % - 95 %
